Performance Technologies PT-CPC3400 24-Port 10/100 Ethernet Switch cPCI Card
The Performance Technologies PT-CPC3400 is a carrier-grade 24-port 10/100 Fast Ethernet switch implemented on a CompactPCI (cPCI) standard bus card. Designed for high-availability embedded and telecom platforms, it provides managed Layer 2 switching across 24 Fast Ethernet ports via the cPCI backplane, using J1, J2, J3, and J5 backplane connections for chassis integration.
Specifications & What's Included
- Manufacturer: Performance Technologies
- Model: PT-CPC3400
- Type: 24-Port 10/100 Fast Ethernet Switch
- Bus/Form Factor: CompactPCI (cPCI) card/module
- Backplane Connectors: J1, J2, J3, J5
- Number of Ports: 24
- Port Speed: 10/100 Mbps (Fast Ethernet)

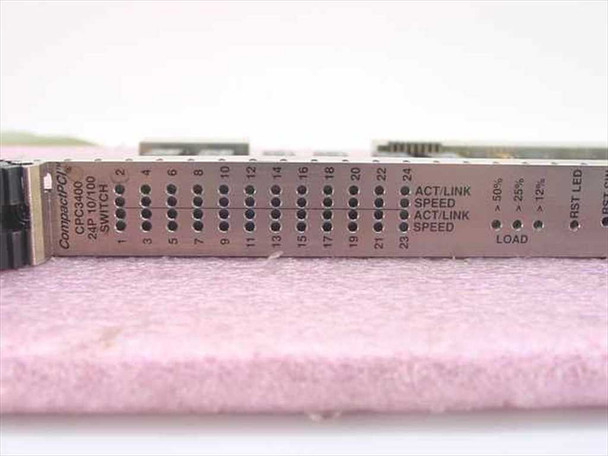

- Front Panel: 24 port LED indicators — ACT/LINK and SPEED per port; LOAD and RST indicators
- Application: Carrier grade / telecom / embedded systems
- Includes: Card only — no cPCI chassis or accessories
Applications
CompactPCI (cPCI) is a Eurocard-based bus standard derived from PCI, widely adopted in the late 1990s and 2000s for carrier-grade telecom, defense, and industrial computing platforms where hot-swap capability and high mechanical reliability are required. The PT-CPC3400 slots into a cPCI chassis to provide an integrated 24-port 10/100 Ethernet switching fabric, distributing network traffic across blades and modules within the same shelf via the J1–J5 backplane connectors rather than requiring external cabling. Performance Technologies (acquired by Continuous Computing and later by Radisys) was a well-known supplier of CompactPCI networking and signaling boards used in telecom infrastructure equipment, including ATCA and cPCI-based media gateways, voice-over-IP platforms, and wireless base station controllers. This type of embedded switch card is still used in legacy telecom and defense systems that continue to operate on CompactPCI chassis infrastructure, as well as by integrators maintaining or refurbishing such platforms.

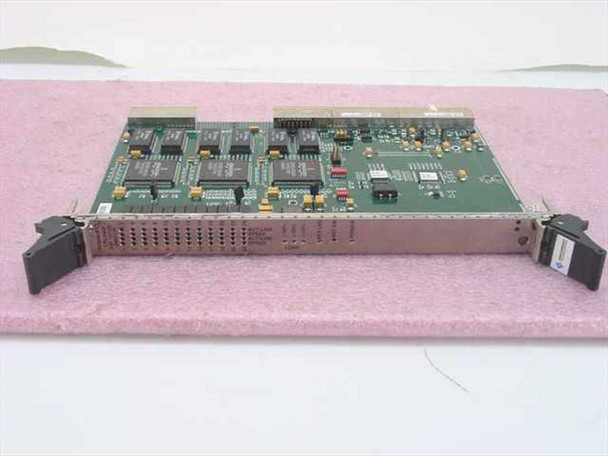

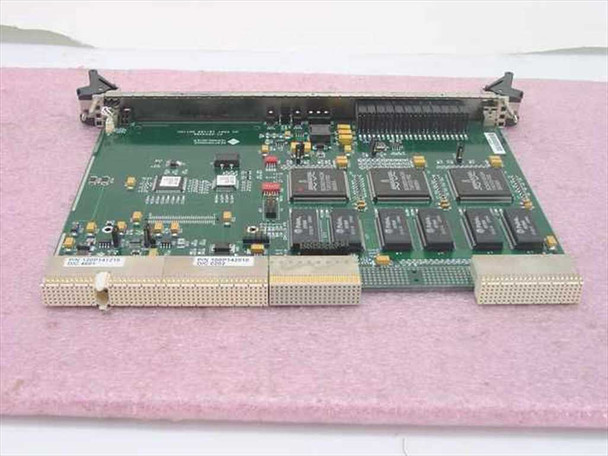

This Performance Technologies PT-CPC3400 24-Port 10/100 CompactPCI Ethernet Switch card has been inspected and is in good condition. The PCB is clean with no visible damage, cracked components, or corrosion. The front panel bracket and LED indicator panel appear intact. The board shows normal handling and shelf wear consistent with previous system use. Card only — no cPCI chassis or additional accessories are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Performance Technologies |
Model: |
PT-CPC3400 |
MPN: |
PT-CPC3400 |
Type: |
CompactPCI 24-Port 10/100 Ethernet Switch Card |
SKU: |
24199 |
Number of Ports: |
24 |
Port Speed: |
10/100 Mbps |
Form Factor: |
CompactPCI (cPCI) Card/Module |
Bus Type: |
CompactPCI (cPCI) |
Backplane Connectors: |
J1, J2, J3, J5 |
Network Type: |
Ethernet (10/100 Fast Ethernet) |
Management Type: |
Managed |
Application: |
Carrier Grade / Telecom / Embedded Systems |
Condition: |
Used – Inspected, Good Condition |
Seller Notes: |
Card only; no chassis or accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Performance Technologies PT-CPC3400 cPCI 24-Port 10/100 Switch. Inspected and in good condition. PCB is clean, no visible damage. Card only, no chassis included. |
