Zenith 234-1135 125W Power Supply ZX-386 SX/20 Desktop 100-250V 12-Pin
AT-style desktop power supply for the Zenith Z-386 SX/20 computer. Outputs 125W across multiple voltage rails with 12-pin rectangular connector and Molex peripheral connectors.
Specifications & What's Included

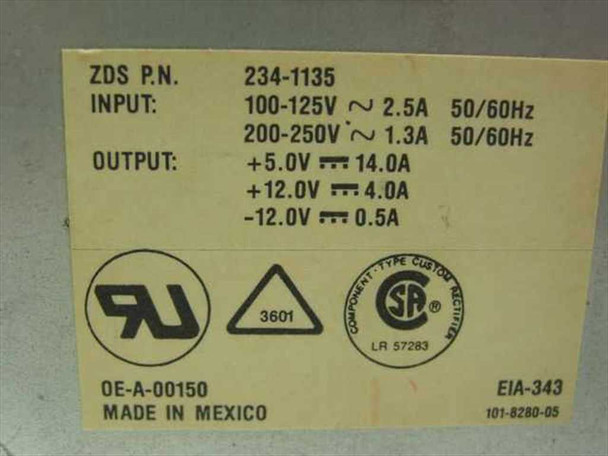

- Model: 234-1135 (OE-A-00150, 101-8280-05)
- Power Output: 125W
- Input: 100-125V AC 2.5A / 200-250V AC 1.3A, 50/60Hz
- Output: +5.0V 14.0A, +12.0V 4.0A, -12.0V 0.5A

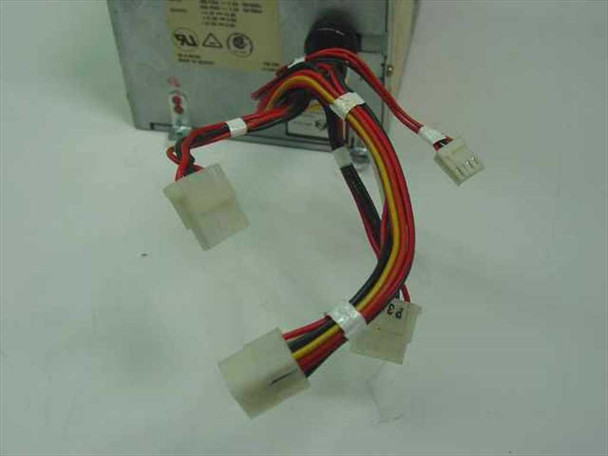

- Connector: 12-pin rectangular (AT-style) with Molex 4-pin peripherals

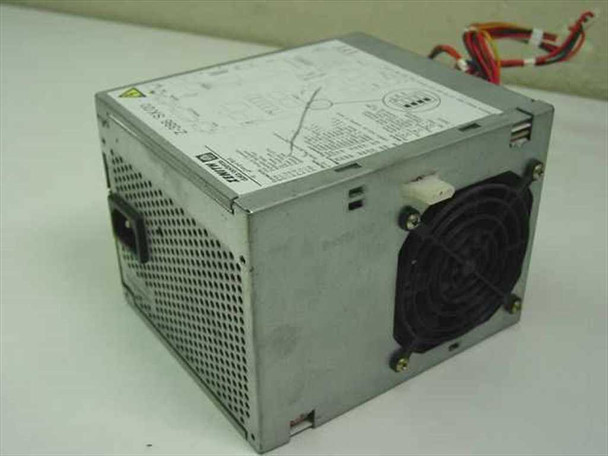

- Cooling: Internal 80mm fan
- Unit only; no accessories included
Applications
This supply powered the Zenith Z-386 SX/20 desktop computer, a business-class machine from the late 1980s/early 1990s. The Z-386 line (Groupe Bull manufacture) used AT-form factor supplies as standard. This unit supports the typical load distribution of 386-era systems, with emphasis on 5V and 12V rails for processors, memory, and disk drives.
Condition: Used

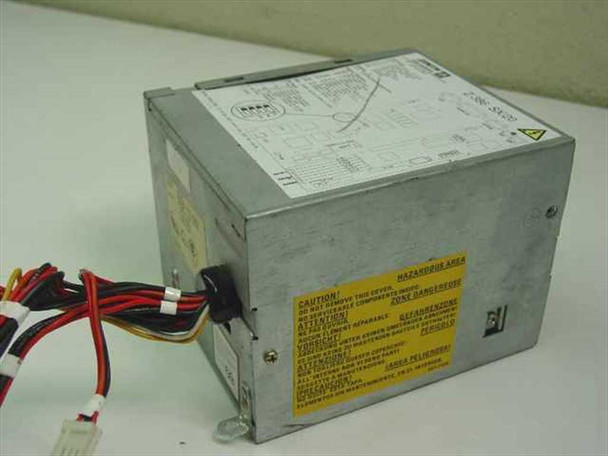

This Zenith Data Systems 234-1135 125W desktop power supply has been tested and confirmed to be in working order at our facility. The unit presents in good used cosmetic condition consistent with its vintage. The metal housing shows light surface scuffs and age-appropriate wear. The output connector harness and Molex peripheral connectors are present and intact. The cooling fan and input/output labeling are intact and legible. Please view our photo set and contact us if you have any questions.
This Zenith Data Systems 234-1135 125W desktop power supply has been tested and confirmed to be in working order at our facility. The unit presents in good used cosmetic condition consistent with its vintage. The metal housing shows light surface scuffs and age-appropriate wear. The output connector harness and Molex peripheral connectors are present and intact. The cooling fan and input/output labeling are intact and legible. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Zenith Data Systems |
Model: |
234-1135 |
MPN: |
234-1135 |
SKU: |
34636 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only; no additional accessories included. |
Compatible With: |
Zenith Z-386 SX/20 Desktop Computer |
Form Factor: |
Desktop (AT-style) |
Power Output: |
125W |
Input Voltage: |
100-125V AC 2.5A / 200-250V AC 1.3A, 50/60Hz |
Output Voltages: |
+5.0V 14.0A, +12.0V 4.0A, -12.0V 0.5A |
Connector Type: |
12-Pin Rectangular (AT-style) |
Output Connector Harness: |
Molex 4-pin peripheral connectors (multiple) |
Cooling: |
Internal 80mm fan |
Certifications: |
UL (E3601), CSA (LR 57283), EIA-343 |
Country of Manufacture: |
Mexico |
Reference Part Numbers: |
OE-A-00150, 101-8280-05, EIA-343 |
Series: |
Zenith Z-386 SX/20 (Groupe Bull) |
Condition Notes: |
This Zenith Data Systems 234-1135 125W desktop power supply has been tested and confirmed to be in working order at our facility. The unit presents in good used cosmetic condition consistent with its vintage. |
