Description
Young Radiator OCH 130 Portable Oil Cooling System Leeson Motor FTI Pump Fan
This is a custom-built portable oil cooling system assembled on a heavy-duty steel caster cart. It integrates a Young Radiator Company OCH 130 oil cooler core (Part No. 275958), a Leeson electric motor, a Finish Thompson (FTI) centrifugal pump, and a Franklin Electric axial fan motor — all plumbed together as a self-contained, mobile cooling assembly. The system is sold as-is for parts or repair; it has not been tested at our facility and no functionality is guaranteed.
Specifications & What's Included

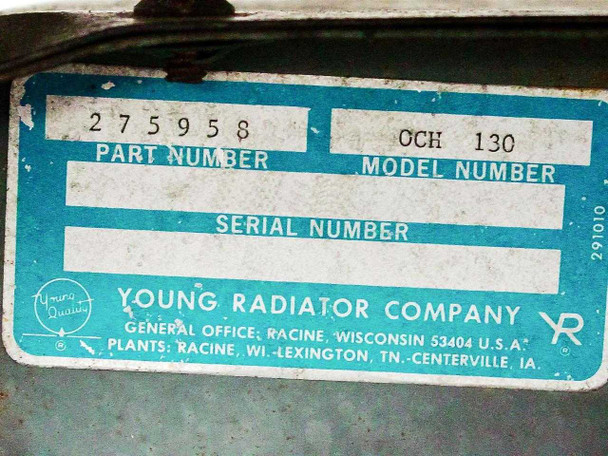

- Radiator / Cooler Core: Young Radiator Company OCH 130 — Part No. 275958
- Motor: Leeson Electric — Model C6C34FK20; Voltage: 208–230V; Phase: Three Phase; Frequency: 60 Hz; Enclosure: TEFC
- Pump: Finish Thompson Inc. (FTI) — Model AC5HTS1E470B025C34; CE marked; centrifugal design

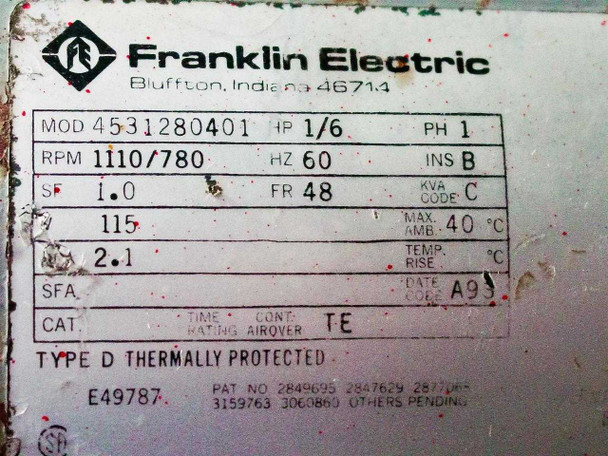

- Fan Motor: Franklin Electric — Model 4531280401; 1/6 HP; 115V; Single Phase; 60 Hz; 1110/780 RPM; Frame 48; Insulation Class B; Totally Enclosed, Type D Thermally Protected (TE); Date Code A93
- Cart / Frame: Welded steel open-frame cart on four heavy-duty casters — portable and repositionable
- Plumbing: Copper pipe fittings, flexible hoses, and at least one ball valve visible in photos
- Condition: Sold as-is for parts or repair — not tested, no functionality guaranteed
Applications
Portable oil cooling systems like this OCH 130-based unit are used to remove heat from hydraulic fluid, gear oil, or lubrication oil in industrial machinery, hydraulic power units, machine tools, presses, and similar equipment where continuous oil circulation generates heat that must be managed. The Young Radiator Company, headquartered in Racine, Wisconsin, has long produced air-blast oil coolers and heat exchangers for industrial and mobile equipment applications; the OCH series are air-cooled oil coolers that use a fan-driven airstream across finned radiator cores to dissipate heat from circulating oil. The self-contained, cart-mounted configuration of this unit was typical of portable or auxiliary cooling setups used in factories, machine shops, and industrial facilities where a fixed coolant loop needed supplemental or temporary oil cooling capacity. The Finish Thompson centrifugal pump circulates the oil through the cooler core, while the Franklin Electric fan motor drives airflow across the fins. Parts from assemblies like this — the pump, motor, fan, and cooler core — are commonly sought individually for repair and replacement in hydraulic and industrial cooling applications.
This Young Radiator OCH 130 Portable Oil Cooling System is being sold as-is for parts or repair. The system has not been tested or powered at our facility and no functionality is guaranteed. The unit is cart-mounted on casters and includes the Young Radiator OCH 130 core, a Leeson electric motor, a Finish Thompson (FTI) AC5HTS1E470B025C34 centrifugal pump, and a Franklin Electric 4531280401 fan motor — all plumbed together as an assembly. Cosmetically, the cart frame and radiator core show age-related surface rust, paint scuffing, and general industrial wear consistent with prior use. The fan, motor, and pump appear intact and undamaged in the photos, though their operational status is unknown. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Young Radiator Company |
Model: |
OCH 130 |
MPN: |
275958 |
Type: |
Portable Oil Cooling System |
SKU: |
36929 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes Leeson motor, FTI pump, Franklin Electric fan, all mounted on caster cart |
Country/Region of Manufacture: |
United States |
Form Factor: |
Portable / Cart-Mounted |
Radiator Model: |
Young Radiator OCH 130 |
Radiator Part Number: |
275958 |
Motor Brand: |
Leeson Electric |
Motor Model: |
C6C34FK20 |
Motor HP: |
1/2 HP (approx — see label) |
Motor Voltage: |
208-230V |
Motor Phase: |
Three Phase |
Motor Frequency: |
60 Hz |
Motor Enclosure: |
TEFC |
Pump Brand: |
Finish Thompson Inc. (FTI) |
Pump Model: |
AC5HTS1E470B025C34 |
Fan Brand: |
Franklin Electric |
Fan Model: |
4531280401 |
Fan HP: |
1/6 HP |
Fan Voltage: |
115V |
Fan Phase: |
Single Phase |
Fan RPM: |
1110/780 |
Fan Frequency: |
60 Hz |
Fan Frame: |
48 |
Fan Insulation Class: |
B |
Fan Enclosure: |
TE (Totally Enclosed) — Type D Thermally Protected |
Compatible With: |
Hydraulic and industrial oil circulation/cooling systems |
Condition Notes: |
Young Radiator OCH 130 Portable Oil Cooling System sold as-is for parts or repair. Not tested; no functionality guaranteed. Includes Leeson motor, FTI pump, Franklin Electric fan on caster cart. Shows surface rust and industrial wear. |
