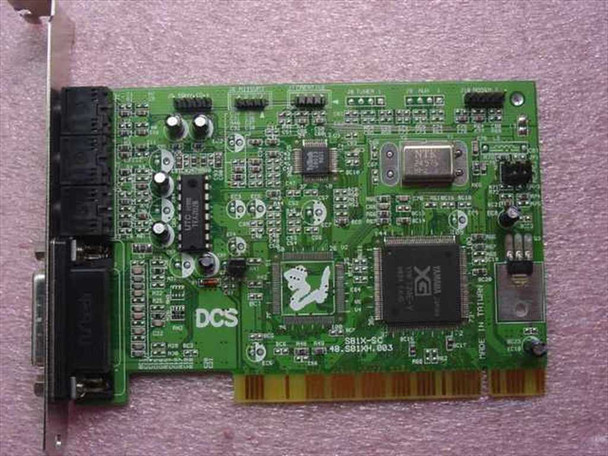

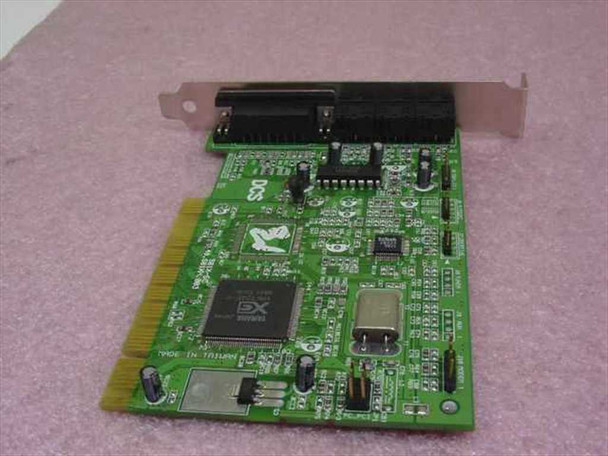

The DCS S81X is a PCI bus sound card built around the Yamaha YMF724E-V audio controller — part of Yamaha's XG (Extended General MIDI) chipset family. It provides hardware OPL3-compatible FM synthesis, full-duplex audio, a DB-15 joystick/MIDI port, and three 3.5mm analog audio jacks, making it a capable legacy sound solution for DOS and early Windows systems. The PCB carries DCS branding with the silkscreen designation S81X-SC 40.S81X+.003.

Specifications & What's Included

• Card Manufacturer: DCS
• Model: S81X (PCB: S81X-SC 40.S81X+.003)

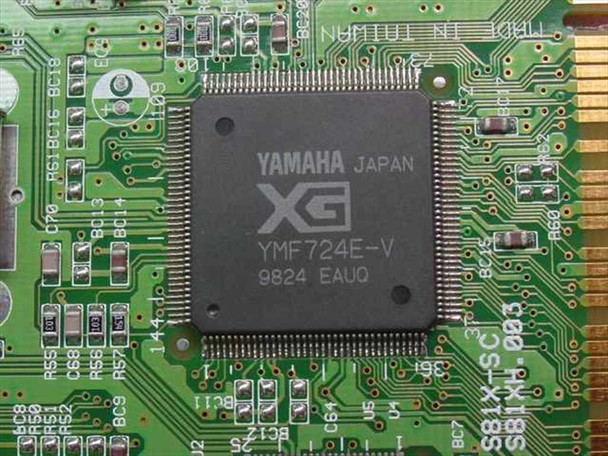

• Main Audio Chipset: Yamaha YMF724E-V (XG)
• Bus Interface: PCI
• FM Synthesis: OPL3-compatible (Yamaha XG hardware FM)
• Audio Jacks (bracket): 3× 3.5mm — Line Out, Line In, Mic
• Game / MIDI Port: DB-15 (15-pin D-sub joystick/MIDI connector)
• Internal Headers: IDE audio and CD-ROM audio header connectors visible on PCB

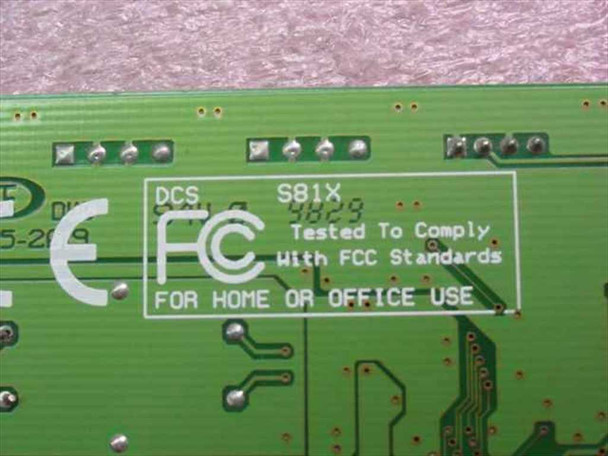

• FCC Compliance: DCS S81X — Tested to Comply with FCC Standards, For Home or Office Use
• Chip Date Code: 9824 (manufactured 1998)
• Included: Card only — no drivers, cables, or accessories

Applications

The Yamaha YMF724 chipset was introduced in the late 1990s as a cost-effective PCI audio solution that retained hardware OPL3 FM synthesis at a time when most competing PCI cards had dropped it in favor of software emulation. This made YMF724-based cards particularly valued for DOS gaming, where hardware FM synthesis was required for authentic Sound Blaster–compatible music and effects in games that predated wavetable and DirectSound audio. The XG (Extended General MIDI) feature set also made these cards useful for MIDI playback with a broader instrument palette than standard GM. Cards like the DCS S81X were common in late-1990s budget and OEM desktop PCs running Windows 95, 98, and ME. Today they remain sought after by retro PC enthusiasts building or restoring period-correct DOS/Win9x machines, precisely because the YMF724E-V provides real hardware OPL3 — a feature absent from virtually all modern audio hardware.
