Yamaha
-
Yamaha DRC-2 LS1BL-750 Robot Motor Controller 750mm Linear Slide Sanyo L404
Yamaha
$325.00Was: $650.00Yamaha DRC-2 LS1BL-750 Robot Motor Controller 750mm Linear Slide Sanyo L404This listing includes a complete Yamaha single-axis robot system: a DRC-2 motor controller, an LS1BL-750 750mm ball-screw...47789- SKU:
- 47789
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 110.00 LBS
- Brand:
- Yamaha
- Model:
- DRC-2
- Secondary Model:
- LS1BL-750
- MPN:
- LS1BL-750
- SKU:
- 47789
- Type:
- Robot Motor Controller with Linear Slide
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes DRC-2 controller, LS1BL-750 linear drive, pneumatic slide, motor, and cables
- Country/Region of Manufacture:
- Japan
- Power Requirements:
- 100V AC
- Motor Model:
- Sanyo Denki L404-012E18
- Motor Voltage:
- 75V DC
- Motor Current:
- 0.9A
- Motor Power Rating:
- 40W
- Motor Speed:
- 3000 RPM
- Linear Drive Stroke:
- 750mm
- Linear Drive Overall Length:
- 960mm (not including motor)
- Platform Dimensions:
- 130mm x 90mm
- Pneumatic Slide Dimensions:
- 187mm L x 113mm W x 40mm Thick
- Pneumatic Slide Stroke:
- 75mm
- Pneumatic Slide Type:
- Dual Piston
- Drive Type:
- Ball Screw
- Application:
- Factory Automation, Robotics, Industrial Positioning
- Manufacture Date:
- April 1998
- Connector Types:
- 19-pin circular connector, M12 mini circular connector
- Controller Interface:
- ESC, DPR, Robot I/O, I/O ports (rear panel)
- Condition Notes:
- Yamaha DRC-2 / LS1BL-750 750mm linear slide pulled from working environment. Carriage moves freely when screw is rotated by hand; not seized. Will need fresh grease before use. DRC-2 I/O power LED lit. Cables included. Good used condition.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$325.00Was: $650.00 -
Yamaha LS1BRV-450 FLIP-Series Linear Slide 450mm Stroke 130x90mm Platform
Yamaha
$550.00Was: $1,100.00Yamaha LS1BRV-450 FLIP-Series Linear Slide 450mm Stroke 130x90mm PlatformA linear slide actuator from Yamaha's FLIP-Series factory automation line. This unit features a 450mm stroke length with a...47784- SKU:
- 47784
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 23.00 LBS
- Brand:
- Yamaha
- Model:
- LS1BRV-450
- MPN:
- LS1BRV-450
- Type:
- Linear Slide / Linear Actuator
- SKU:
- 47784
- Series:
- FLIP-Series
- Stroke Length:
- 450mm
- Overall Length (without motor):
- 655mm
- Platform Dimensions:
- 130mm x 90mm (approx. 5" x 3.5")
- Connector Type:
- Multi-pin circular (19-pin) + small circular signal connector
- Country/Region of Manufacture:
- Japan
- Manufacture Date:
- April 1998
- Application:
- Factory Automation
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes attached motor cable with circular connectors; motor not included
- Compatible With:
- Yamaha FLIP-series factory automation systems
- Condition Notes:
- Yamaha LS1BRV-450 FLIP-Series linear slide inspected and in good used condition. Pulled from a working environment. Light surface wear consistent with use. Motor cable included; motor not included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$550.00Was: $1,100.00 -

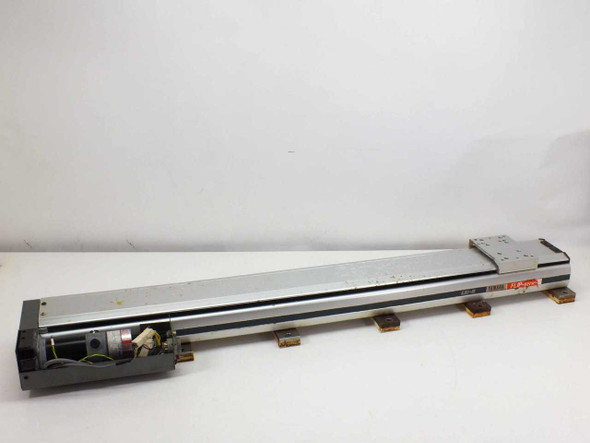

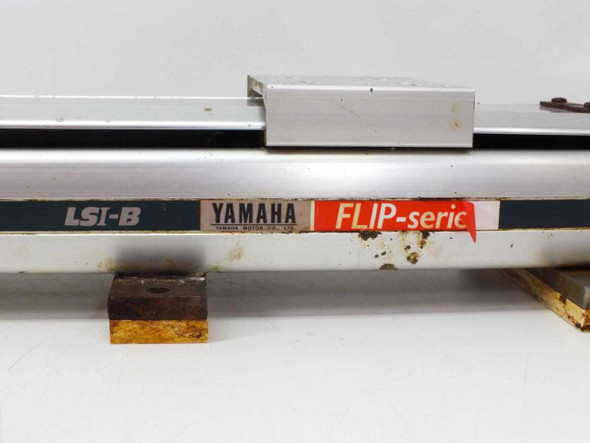

Yamaha LS1BL-850 LSi-B Flip-Series Linear Slide Robot w/ Drive Motor E501000C30
Yamaha
$125.00Was: $250.00Yamaha LS1BL-850 LSi-B Flip-Series Linear Slide Robot w/ Drive Motor E501000C30Ball screw linear slide robot with integrated drive motor for factory automation applications. This unit provides...47657- SKU:
- 47657
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 55.00 LBS
- Brand:
- Yamaha
- Model:
- LS1BL-850
- MPN:
- LS1BL-850
- Secondary Model:
- E501000C30
- SKU:
- 47657
- Type:
- Ball Screw Linear Slide Robot / Linear Actuator
- Series:
- LSi-B Flip-Series
- Drive Motor Part Number:
- E501000C30
- Travel Length:
- Approximately 40 inches
- Table / Carriage Size:
- 5" x 3.5"
- Overall Dimensions:
- 43" x 9" x 4"
- Drive Type:
- Ball Screw
- Condition:
- As-Is / For Parts or Not Working
- Country/Region of Manufacture:
- Japan
- Manufacture Date:
- April 1998
- Application:
- Factory Automation, Pick and Place, Linear Positioning
- Seller Notes:
- Includes integrated drive motor (E501000C30). Sold AS-IS due to visible surface rust.
- Condition Notes:
- Yamaha LS1BL-850 LSi-B linear slide robot sold AS-IS for parts/repair. Appears complete with drive motor (E501000C30). Heavy surface rust on ball screw, rails, and brackets. Screw turns by hand; not seized. Not tested. No functionality guarantee.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$125.00Was: $250.00 -

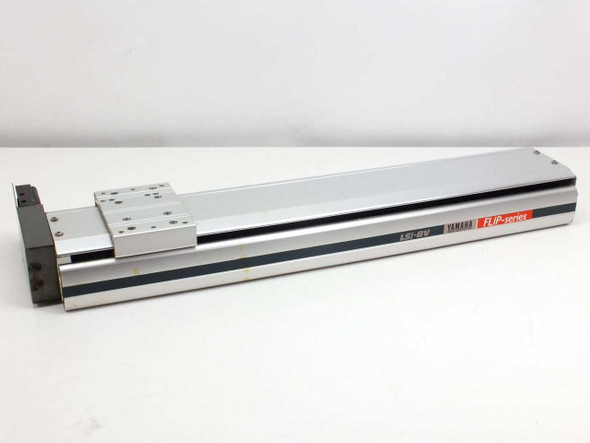

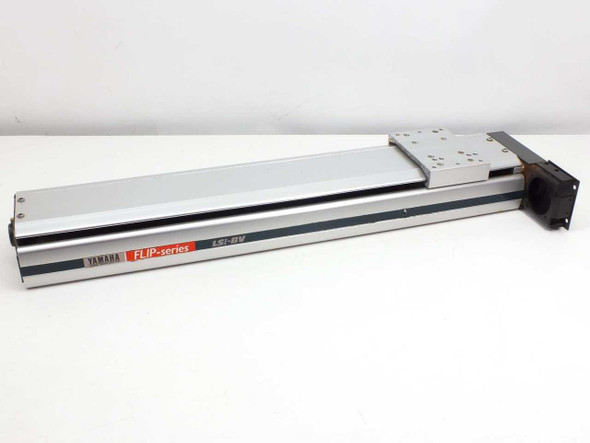

Yamaha LS1BRV-450 FLIP-Series Screw-Driven Linear Slide 450mm No Motor Parts
Yamaha
$95.00Was: $200.00Yamaha LS1BRV-450 FLIP-Series Screw-Driven Linear Slide 450mm No Motor PartsThe Yamaha LS1BRV-450 is a screw-driven single-axis linear slide from Yamaha Motor Co., Ltd.'s FLIP-series line of factory...47653- SKU:
- 47653
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 18.00 LBS
- Brand:
- Yamaha
- Model:
- LS1BRV-450
- MPN:
- LS1BRV-450
- Type:
- Screw-Driven Linear Slide / Linear Actuator
- SKU:
- 47653
- Series:
- FLIP-series
- Travel / Stroke:
- 450mm (approx. 1.5 ft)
- Drive Type:
- Screw-Driven (Ball Screw)
- Motor:
- Missing — not included
- Condition:
- As-Is / For Parts or Not Working
- Manufacture Date:
- April 1998
- Country/Region of Manufacture:
- Japan
- Application:
- Factory Automation, Robotics, Industrial Pick-and-Place
- Seller Notes:
- Motor is missing. Slide body, carriage, and screw mechanism included. Sold as-is.
- Form Factor:
- Linear Rail / Inline Actuator
- Condition Notes:
- Yamaha LS1BRV-450 FLIP-Series linear slide sold as-is for parts or repair. Motor is missing. Motor mount shows surface rust. Slide body and screw assembly present. Not tested, not functional. Mfg. Apr. 1998.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$95.00Was: $200.00 -

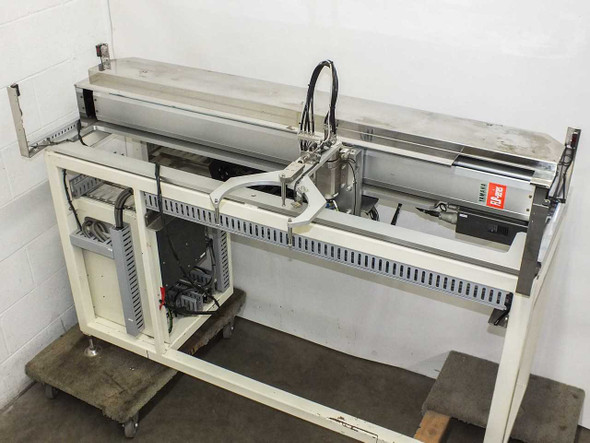

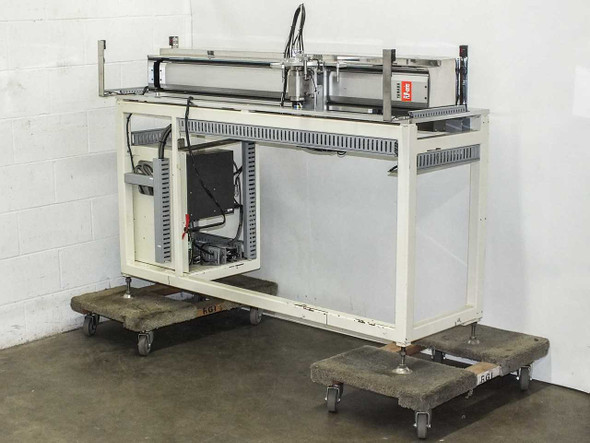

Yamaha LSII-B LS2BR-1250 FLIP-X Single Axis Robot DRC-2 Controller Sharp PLC
Yamaha
$1,200.00Was: $2,400.00Yamaha LSII-B LS2BR-1250 FLIP-X Single Axis Robot DRC-2 Controller Sharp PLCUsed Yamaha FLIP-X single axis linear robot with 1250 mm stroke, equipped with DRC-2 servo controller, Sanyo Denki DC servo...47100- SKU:
- 47100
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 368.00 LBS
- Brand:
- Yamaha Motor Co., Ltd.
- Model:
- LSII-B
- Secondary Model:
- LS2BR-1250
- MPN:
- LS2BR-1250
- SKU:
- 47100
- Type:
- Single Axis Linear Robot
- Series:
- FLIP-X Series
- Controller Model:
- Yamaha DRC-2 (Max 300VA)
- Servo Motor:
- Sanyo Denki Super L Type L404-012E18 DC Servo Motor
- PLC Rack Brand:
- Sharp
- PLC Modules Installed:
- JW-1PU, JW-70CUN, JW-20CM, JW-10SU, JW-64NC, JW-325
- Power Supply (Internal):
- Omron S82K-05024, Input AC100-240V, Output DC24V 2.1A
- Controller Power Rating:
- Max 300VA
- Controller Input Voltage:
- 100V AC (per DRC-2 label)
- Power Supply Input Voltage:
- AC100-120V / AC200-240V (switchable)
- Stroke / Travel Length:
- 1250 mm (per LS2BR-1250 model designation)
- Drive Type:
- DC Servo Motor with belt/linear drive
- Cable Management:
- Integrated cable track (energy chain)
- Country/Region of Manufacture:
- Japan
- Form Factor:
- Floor-standing with integrated steel stand
- Stand Included:
- Yes — integrated steel stand with casters
- Condition:
- Used – Inspected, appears in good condition
- Seller Notes:
- Includes DRC-2 controller, Sharp JW PLC rack, Sanyo Denki servo motor, cable track, and stand
- Condition Notes:
- Yamaha LSII-B LS2BR-1250 FLIP-X single axis robot inspected and in good condition. DRC-2 controller, Sharp JW PLC rack, Sanyo Denki servo motor, and stand all present. Stand shows typical shop wear. Please contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,200.00Was: $2,400.00
