Yamaha CA-1000 Natural Sound Stereo Amplifier Vintage Hi-Fi Powers Up No Output

Yamaha CA-1000 Natural Sound Stereo Amplifier Vintage Hi-Fi Powers Up No Output

The Yamaha CA-1000 is a full-featured integrated stereo amplifier from Yamaha's Natural Sound (NS) series, manufactured by Nippon Gakki Co., Ltd. in Hamamatsu, Japan. It features a substantial control set including bass and treble tone controls with a tone-defeat switch, three independent speaker output banks, a front-panel headphone jack, and a pre-out/main-in loop with a coupler switch for inserting external processing. This example powers on but produces no audio output and is being sold as-is for parts or repair.

Specifications & What's Included

• Model: Yamaha CA-1000 (NS Series — Natural Sound)
• Manufacturer: Nippon Gakki Co., Ltd., Hamamatsu, Japan
• Power Requirements: 117V, 50–60Hz, 250W rated, 320VA
• Primary Fuse: 5AT, 250V
• Inputs: Aux-1, Aux-2, Tuner, Phono-1, Phono-2, Mic — all RCA
• Tape: Tape A and Tape B — separate Rec Out and Playback RCA jacks for each
• Pre Out / Main In: RCA jacks with rear-panel coupler On/Off switch
• Speaker Outputs: Three independent speaker banks (A, B, C) via spring-clip terminals
• AC Outlets: Switched and Unswitched convenience outlets — 87V, 50–60Hz, 200W max total each bank
• Headphone Output: Front-panel 1/4-inch jack
• Tone Controls: Bass and Treble rotary knobs with Tone Defeat
• Input Impedance: 100kΩ line-level / Mic

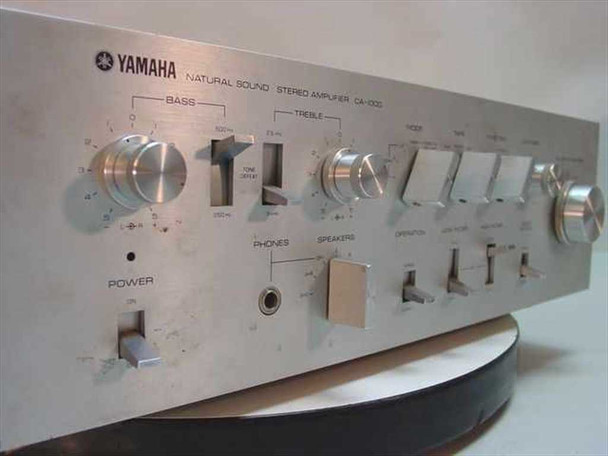

• Front-panel controls: Power toggle, mode/operation selector, tone defeat, bass, treble, speaker selector, low filter, high filter, volume
• Chassis: Silver brushed-aluminum front panel with wood-veneer side panels
• Included: Amplifier only — no manual, cables, or accessories

Applications

The Yamaha CA-1000 was produced in the early-to-mid 1970s, a period regarded as the golden age of Japanese integrated amplifier design. Yamaha's Natural Sound philosophy aimed to reproduce audio with the least possible coloration, and the CA-1000 was positioned as a high-performance integrated amplifier capable of driving multiple speaker systems simultaneously through its A, B, and C speaker banks — useful for multi-room setups common in upscale installations of the era. The pre-out/main-in loop allowed users to insert equalizers or signal processors into the amplifier chain, a feature more typical of separates-oriented designs. The CA-1000 pairs with period turntables, reel-to-reel decks, and tape decks via its dual phono and dual tape inputs. Today these amplifiers are sought after by vintage audio collectors and restorers for their build quality, period styling, and repairability — the discrete component design and available service literature make them a well-regarded restoration candidate.
