Xantrex TM-6000-XN XT Series DC Power Supply Technical Manual 7-6 60-1

Xantrex TM-6000-XN XT Series DC Power Supply Technical Manual 7-6 60-1

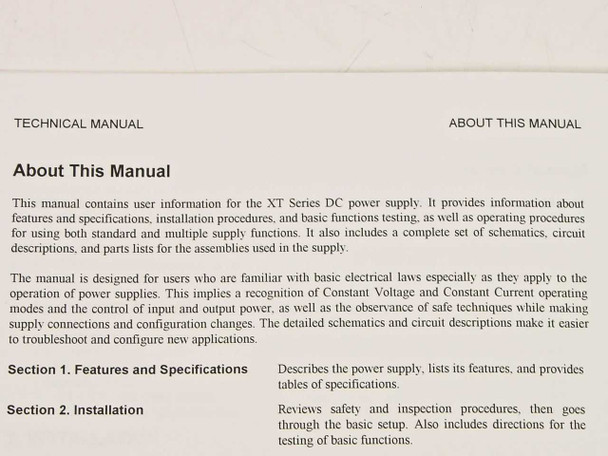

This is the original printed Xantrex TM-6000-XN Technical Manual for the XT Series DC Power Supply line. It is a comprehensive reference covering features and specifications, installation procedures, load connection and operation, theory of operation, maintenance, calibration, and full assembly schematics with parts lists — everything needed to install, operate, service, and repair XT Series power supplies.

Specifications & What's Included

• Publication number: TM-6000-XN

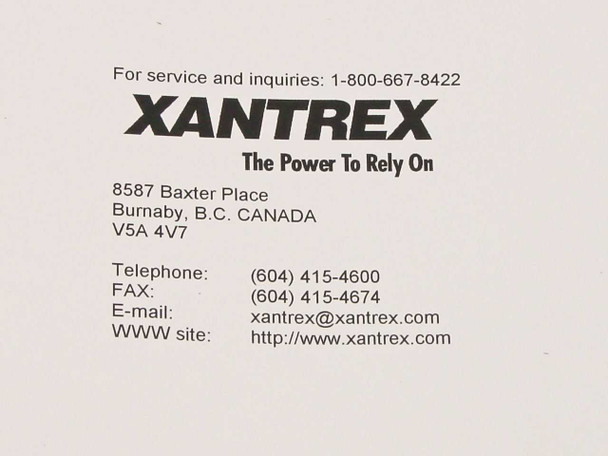

• Manufacturer: Xantrex (Burnaby, B.C., Canada)
• Format: Printed hard copy, spiral bound
• Language: English
• Models covered: 7-6, 15-4, 20-3, 30-2, 60-1, 120-0.5, 250-0.25
• Section 1: Features and Specifications — descriptions, options, accessories, electrical and mechanical specifications
• Section 2: Installation — initial inspection, connectors/controls/outputs, remounting, ventilation, power connections, output biasing
• Section 3: Load Connection and Operation — standard operation, Constant Voltage mode, Constant Current mode, Automatic mode, series/parallel/split supply operation
• Section 4: Theory of Operation — power circuit assembly, meter circuit assembly

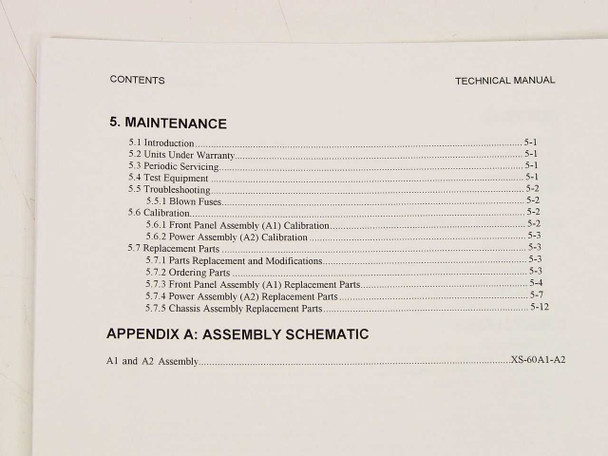

• Section 5: Maintenance — warranty, periodic servicing, test equipment, troubleshooting (blown fuses), calibration (A1 and A2 assemblies), replacement parts ordering and lists for front panel, power, and chassis assemblies
• Appendix A: Assembly Schematic — XS-60A1-A2 (A1 and A2 assemblies)

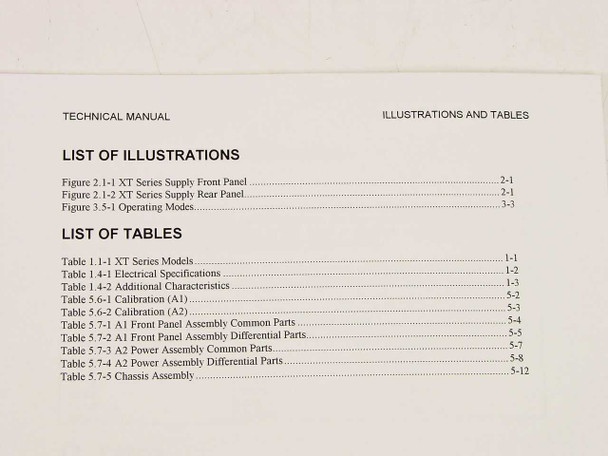

• List of Illustrations and List of Tables included

Applications

The Xantrex XT Series is a line of bench-top DC power supplies designed for laboratory, R&D, and light industrial use. These supplies operate in Constant Voltage (CV) and Constant Current (CC) modes and support series, parallel, and split configurations — making them suitable for a wide range of bench test and development applications. The model numbering reflects output ratings: the 7-6 provides 7V at 6A, the 60-1 provides 60V at 1A, the 120-0.5 provides 120V at 0.5A, and the 250-0.25 reaches 250V at 0.25A, covering both high-current low-voltage and high-voltage low-current needs. This technical manual is the primary service and maintenance reference for technicians working on XT Series units, providing the schematics and calibration procedures necessary for depot-level repair. It is equally useful as an operating reference for users who need detailed guidance on configuration and connection beyond what a quick-start guide provides.
