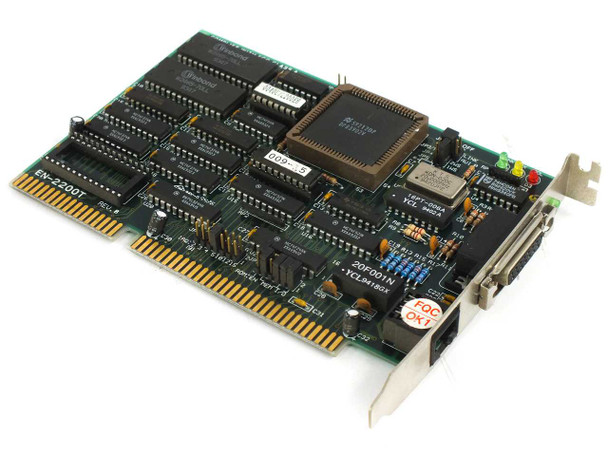

The Winbond EN-2200T is a 16-bit ISA Ethernet network interface card built around the National Semiconductor DP83902V Serial Network Interface Controller (SNIC), an NE2000-compatible chipset. It provides both an AUI (DB15) port and an RJ45 port on the rear bracket, giving it flexibility for connection to 10BASE-T twisted-pair networks or to AUI-based transceivers for other media. The board is marked REV.0 and carries FCC Class A compliance, and is manufactured in Taiwan.

Specifications & What's Included

• Model: Winbond EN-2200T (REV.0)
• Bus Interface: 16-bit ISA
• Main Controller Chipset: National Semiconductor DP83902V (NE2000 compatible)
• RAM ICs: Winbond W89C85-70LL (visible on PCB)
• Network Standard: 10BASE-T Ethernet (10 Mbps)

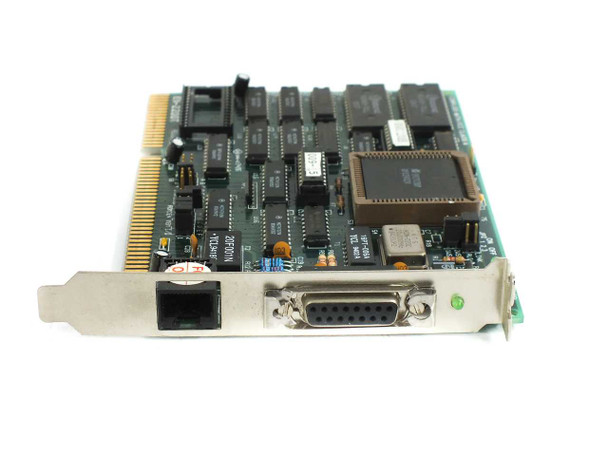

• Rear Bracket Ports: AUI (DB15 female) and RJ45
• LED Indicators: Green link/activity LED on bracket
• Compatible Operating Systems: DOS, Windows 95, Windows 98
• NE2000 Compatible: Yes — works with NE2000 drivers and software
• FCC Compliance: Class A

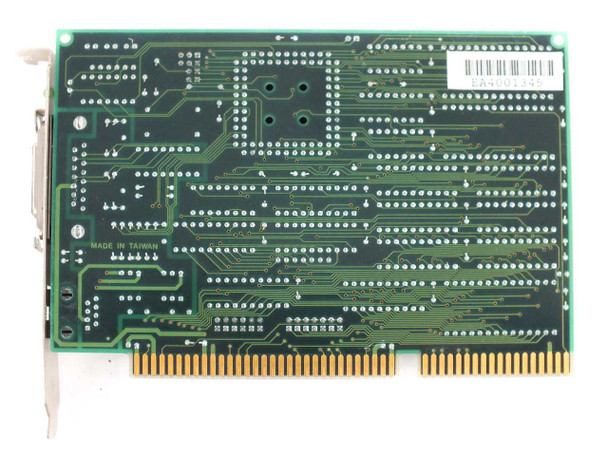

• Country of Manufacture: Taiwan
• Secondary Board Code: 20F001N / YCL041BGX
• Included: Card only — no software, drivers, or accessories

Applications

The EN-2200T belongs to a broad family of NE2000-compatible ISA network cards that were the dominant standard for PC networking throughout the late 1980s and into the mid-1990s. NE2000, originally introduced by Novell and Eagle Technologies, became the de facto baseline that most network operating systems and drivers supported, making NE2000-compatible cards like this one broadly usable across DOS-based networks (Novell NetWare, LANtastic, Microsoft LAN Manager) and early Windows environments including Windows for Workgroups, Windows 95, and Windows 98. The 16-bit ISA bus version offered a performance advantage over the earlier 8-bit cards and was the standard choice for 486-class and early Pentium systems of the era. The dual AUI/RJ45 bracket was a common design of the period, allowing the card to work with either 10BASE-T patch cabling (RJ45) or older thick/thin Ethernet setups via an external transceiver on the AUI port. Today these cards are primarily sought by retrocomputing enthusiasts restoring vintage PCs, operators of legacy industrial or scientific systems that still run DOS or Windows 9x, and collectors maintaining period-correct setups.
