Wiltec MUC1 Expansion Station External Tape Drive Unit 120/220-240V AS-IS

Wiltec MUC1 Expansion Station External Tape Drive Unit 120/220-240V AS-IS

The Wiltec MUC1 is a desktop tower-style external expansion station designed to house and connect tape or cartridge drive units to a host computer system. It provides additional drive bays and the necessary connectivity to extend storage capabilities through a variety of interface ports on the rear panel. This unit is vintage-era equipment from when external expansion enclosures were commonly used alongside early workstations and minicomputers running tape-based backup and data storage systems.

Specifications & What's Included

• Model: MUC1
• Brand: Wiltec
• Type: External tape/cartridge drive expansion station
• Form factor: Desktop tower enclosure
• Power input: 120/220-240V AC, 50/60Hz, 2A (120V) / 1A (220-240V) — universal input
• AC inlet: IEC C14 (standard 3-pin power connector)

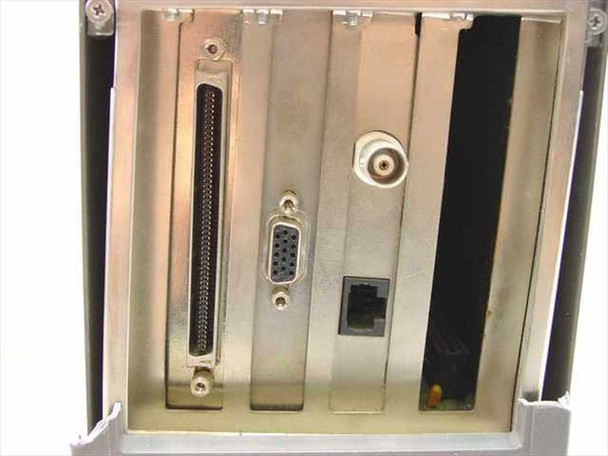

• Rear interface ports: 50-pin Centronics-style connector, DB-15, BNC, RJ-style modular jack
• Front panel: Power switch (rocker), indicator lights, drive bay access panels

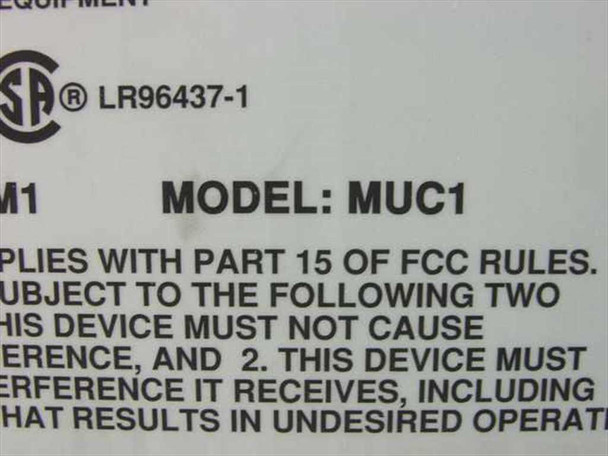

• Certifications: CSA LR96437-1; FCC Part 15 compliant
• Included: Expansion station unit only — no cables or drives included

Applications

External tape and cartridge drive expansion stations like the Wiltec MUC1 were used in business and technical computing environments during the 1980s and early 1990s to provide additional or external tape-based storage alongside workstations, minicomputers, and early servers. They typically connected via parallel or proprietary interface to the host system and housed quarter-inch cartridge (QIC), DC600-series, or similar tape mechanisms. This type of unit is now primarily sought by technicians restoring legacy systems, collectors of vintage computing hardware, or shops recovering data from period tape media using original equipment.
