Western Digital WD90C00-JK ISA Super VGA Video Card 16-Bit 01-2HG-003A
The Western Digital WD90C00-JK is a 16-bit ISA Super VGA (SVGA) video card built around Western Digital's own WD90C00-JK graphics controller, introduced in the late 1980s and manufactured into the early 1990s. It was one of Western Digital's early SVGA solutions, offering VGA-compatible output plus Super VGA modes for higher resolutions beyond the standard 640×480 VGA spec — a meaningful step up for DOS-era systems of the time. The card connects via a full-length 16-bit ISA edge connector and outputs video through a standard DB-15 analog VGA port on the bracket.
Specifications & What's Included
- Manufacturer: Western Digital

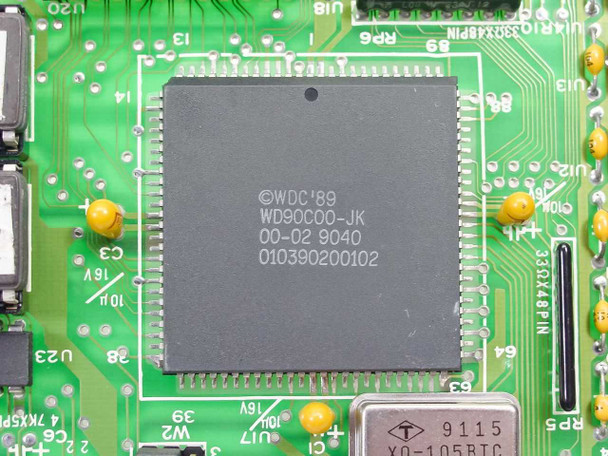

- Controller Chipset: WD90C00-JK (©WDC '89, date code 9040)
- Part Number: 01-2HG-003A
- Bus Interface: 16-bit ISA (AT bus)
- Video Standard: Super VGA (SVGA), VGA-compatible
- Video Output: DB-15 analog VGA connector
- On-board DRAM: Multiple DRAM ICs visible on PCB (exact total capacity not marked)

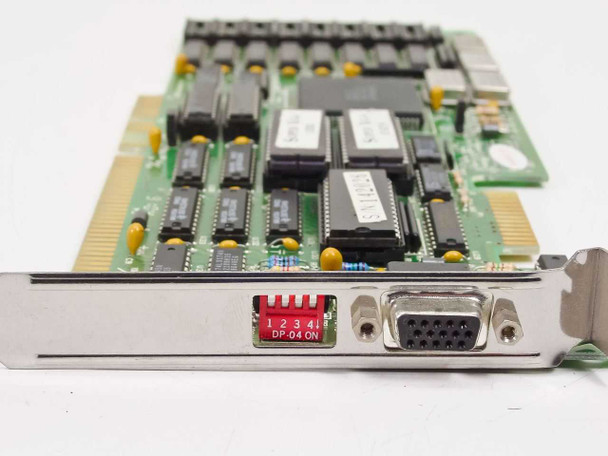

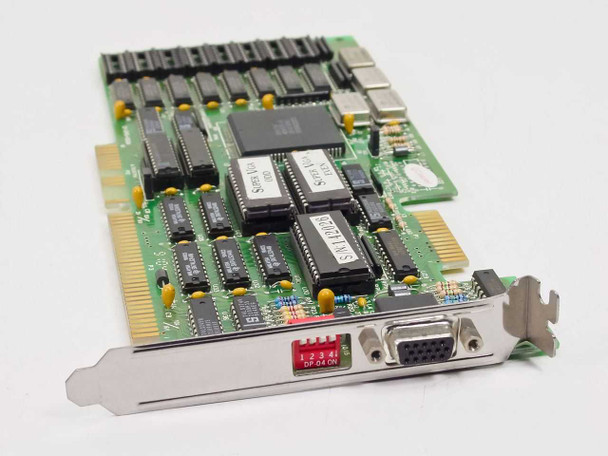

- DIP Switch: 4-position DIP switch on bracket (labeled DP-04 ON) for configuration
- Form Factor: Full-length ISA card with metal slot bracket
- PCB Label:Condition: Used

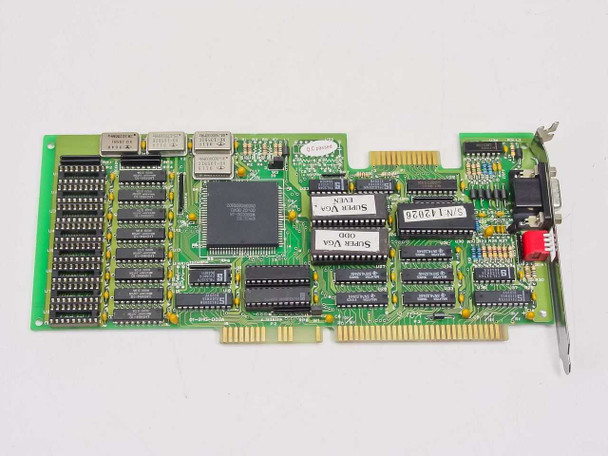

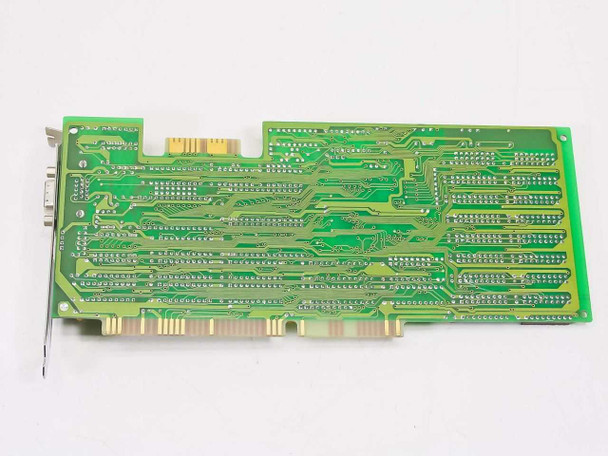

This Western Digital WD90C00-JK 16-bit ISA Super VGA video card has been tested and is in good working condition. The PCB is clean with no broken traces, bent pins, or missing components visible. The bracket, DIP switch, and DB-15 VGA connector all appear intact. Some light shelf wear is typical on a card of this age but it presents well overall. Please view our photo set and contact us if you have any questions.
