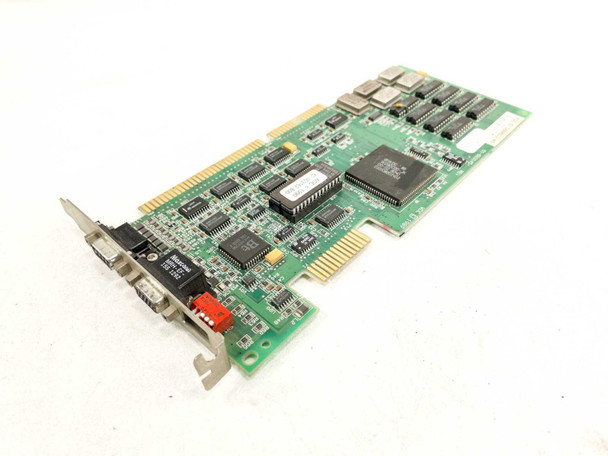

Western Digital 61-603145 16-Bit ISA Video Card WDC WD90C00-JK VGA CGA EGA
This is a half-length 16-bit ISA video card from Western Digital designed for legacy DOS-era computers. It provides dual video output support for CGA, EGA, and VGA display standards via 9-pin DB9 and 15-pin connectors.
Specifications & What's Included
- Chipset: WD90C00-JK
- Bus Interface: 16-bit ISA
- Video Outputs: 9-pin DB9 (CGA/EGA) and 15-pin (VGA)
- Configuration: DIP switch selectable
- Form Factor: Half-length ISA card
- Includes: Card only; no drivers or accessories
Applications
This card was used in IBM PC/XT/AT and compatible systems running DOS-era platforms, particularly 286, 386, and 486 ISA motherboards from the 1980s and early 1990s. It served as a graphics solution for systems requiring multi-standard display support. Compatible with retro computing restoration and legacy system maintenance.
Condition: Used
This Western Digital 61-603145 16-bit ISA Video Card has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use and functional. The PCB is clean with no visible cracked traces, burnt components, or physical damage. The bracket connectors and dip switches are intact. Normal light handling wear is present consistent with prior installation. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Western Digital 61-603145 16-bit ISA Video Card has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use and functional. The PCB is clean with no visible cracked traces, burnt components, or physical damage. The bracket connectors and dip switches are intact. Normal light handling wear is present consistent with prior installation. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Western Digital |
Model: |
61-603145 |
MPN: |
61-603145 |
Secondary Model: |
62-003162-800 |
Type: |
16-Bit ISA Video Card |
Chipset: |
WD90C00-JK |
Bus Interface: |
ISA (16-bit) |
Video Output 1: |
9-pin DB9 (CGA/EGA) |
Video Output 2: |
15-pin (VGA) |
Configuration: |
Dip switch configurable |
FCC ID: |
DBM603145 |
PCB Part Number: |
61-603307-01 |
Form Factor: |
Half-length ISA card |
Compatible With 1: |
IBM PC/XT/AT and compatible ISA desktop systems |
Compatible With 2: |
DOS-era 286/386/486 ISA motherboards |
Video Standards: |
CGA, EGA, VGA |
Country/Region of Manufacture: |
Malaysia |
SKU: |
34502 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Card only; no drivers or accessories included. |
Condition Notes: |
This Western Digital 61-603145 16-bit ISA Video Card has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use and functional. |
