Description
Western Digital WD800JD Caviar SE 80GB 3.5" SATA HDD Dell NR694 7200RPM
The Western Digital WD800JD is a 3.5-inch internal hard disk drive from the Caviar SE product line, formatted with an 80 GB capacity and a SATA interface. It spins at 7200 RPM and uses the first-generation SATA 3 Gb/s interface, making it a standard desktop drive from the mid-2000s era. This unit carries the Dell OEM part number NR694 (also listed as 0NR694), sourced from Dell desktop systems.
Specifications & What's Included
- Brand: Western Digital
- Product Line: Caviar SE

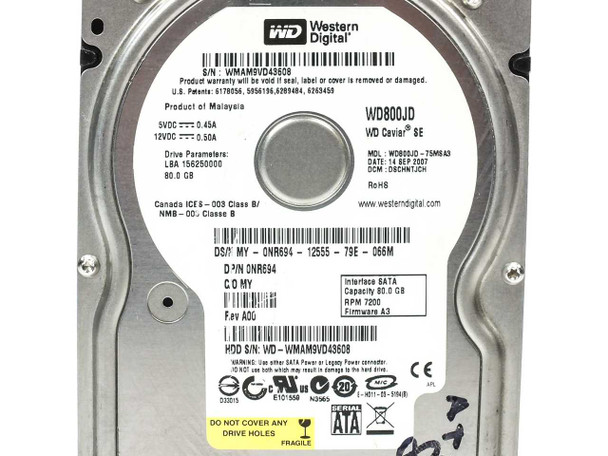

- Model: WD800JD / WD800JD-75MSA3
- Dell Part Number: NR694 / 0NR694
- Capacity: 80 GB
- Form Factor: 3.5"
- Interface: SATA (3 Gb/s)
- Rotational Speed: 7200 RPM
- Power Requirements: 5V / 0.45A; 12V / 0.50A
- Firmware Version: A3
- Country of Manufacture: Malaysia
- Connector: SATA data + SATA power (visible on edge; standard 7-pin data, 15-pin power)
- Drive only — no cables or mounting hardware included
Applications
The WD800JD Caviar SE is a mid-2000s desktop SATA hard drive, introduced in the period when SATA was replacing parallel ATA (PATA/IDE) as the standard desktop interface. Drives like this were widely used in Dell OptiPlex, Dimension, and Precision workstation systems of that generation, as well as compatible third-party desktops and budget server builds. Today, 80 GB SATA drives of this type see continued use in retro computing projects, legacy machine restoration, light-duty embedded or industrial systems that require a small-footprint SATA drive, and as replacement parts for aging desktops still in service. The standard 3.5-inch form factor and SATA interface mean the drive is physically compatible with any system or enclosure that accepts a 3.5-inch SATA drive.

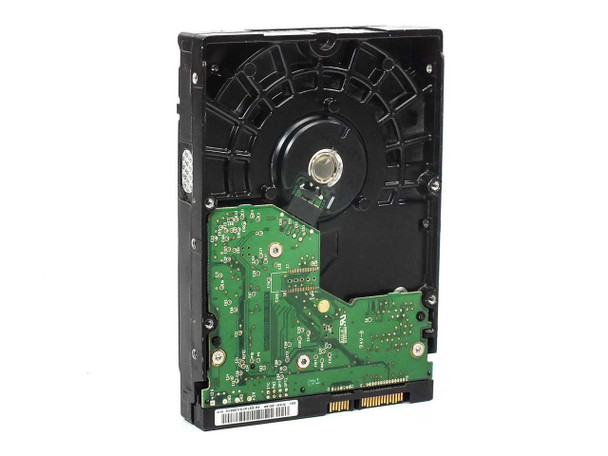

This Western Digital WD800JD Caviar SE 80GB SATA hard drive has been inspected, cleaned, and tested at our facility and is in working order. The drive shows normal cosmetic wear consistent with prior use. The SATA data and power connectors are clean and intact, as visible in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Western Digital |
Model: |
WD800JD |
MPN: |
WD800JD-75MSA3 |
Secondary Model: |
NR694 |
Dell Part Number: |
NR694 / 0NR694 |
Type: |
Internal Hard Disk Drive (HDD) |
SKU: |
43164 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Drive only; inspected, cleaned, and tested in working order. |
Country/Region of Manufacture: |
Malaysia |
Form Factor: |
3.5" |
Storage Capacity: |
80 GB |
Interface: |
SATA |
Data Transfer Rate: |
3 Gb/s |
Rotational Speed: |
7200 RPM |
Product Line: |
Caviar SE |
Firmware Version: |
A3 |
Power Requirements: |
5V 0.45A / 12V 0.50A |
Compatible With: |
Dell desktops and servers accepting 3.5" SATA drives |
Condition Notes: |
Western Digital WD800JD Caviar SE 80GB SATA HDD. Inspected, cleaned, and tested at our facility — in working order. Normal cosmetic wear. SATA connectors clean and intact. |
