Western Digital WD800JD-75HKA1 WD Caviar 80GB SATA 3.5" HDD 7200RPM Dell Y3053

Western Digital WD800JD-75HKA1 WD Caviar 80GB SATA 3.5" HDD 7200RPM Dell Y3053

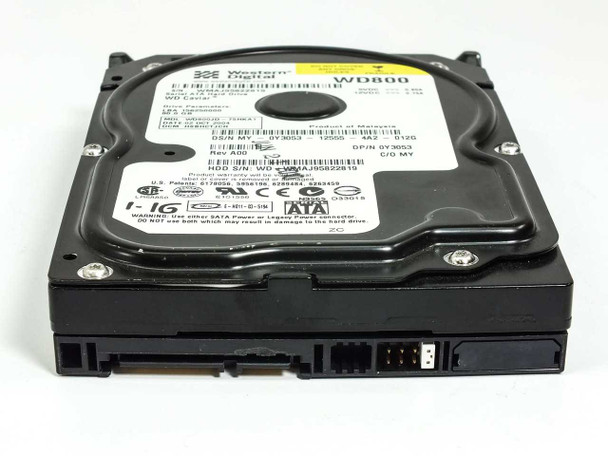

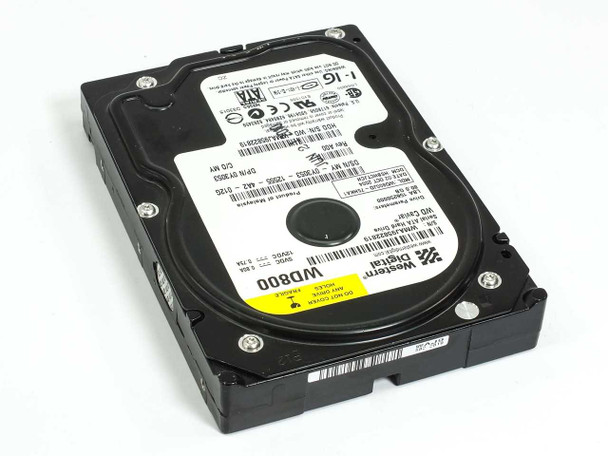

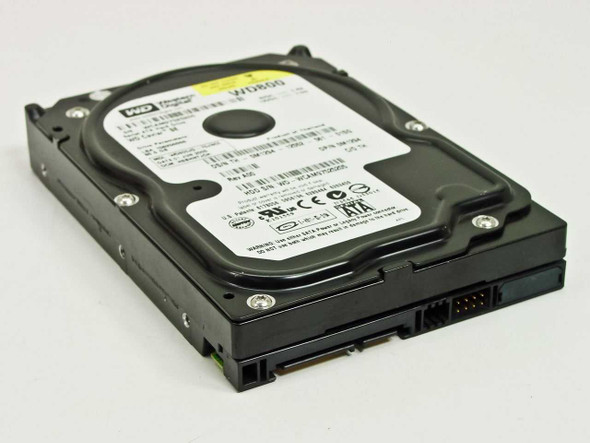

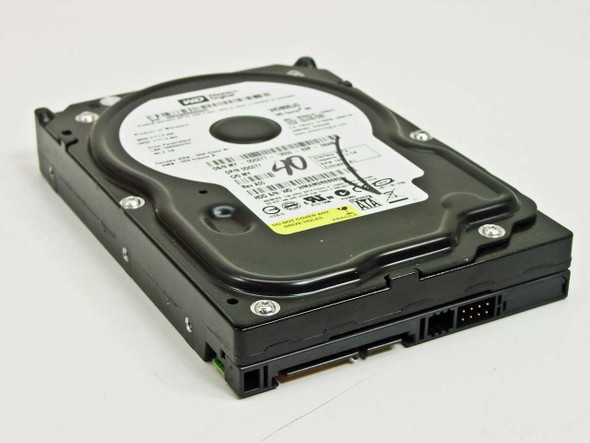

The Western Digital WD Caviar WD800JD-75HKA1 is an 80GB 3.5" Serial ATA hard disk drive spinning at 7200 RPM. Originally supplied as a Dell OEM unit under part number Y3053, this drive uses the standard SATA interface and is compatible with any desktop system or workstation that accepts a 3.5" SATA hard drive. It draws 5VDC and 12VDC from a standard SATA power connector.

Specifications & What's Included

• Brand: Western Digital
• Product Family: WD Caviar
• Model: WD800JD-75HKA1
• Dell OEM Part Number (DP/N): Y3053
• Capacity: 80 GB
• Interface: SATA (Serial ATA)
• Form Factor: 3.5"
• Rotational Speed: 7200 RPM
• LBA Sectors: 156,250,000
• Power: 5VDC @ 0.80A / 12VDC @ 0.75A
• Date of Manufacture: 02 October 2004
• Country of Manufacture: Malaysia
• Drive only — no cables or accessories included

Applications

The WD Caviar series was Western Digital's mainstream desktop hard drive line through the late 1990s and 2000s, covering the transition from parallel ATA (IDE) to Serial ATA. The WD800JD belongs to the early SATA generation, manufactured in 2004, when SATA was just becoming the standard interface on desktop motherboards, replacing the older PATA/IDE connector. Drives like this were used as primary system drives and secondary storage in desktop PCs, workstations, and entry-level servers of that era. Today they are sought for maintaining and restoring period-correct systems, legacy workstations, and older Dell desktop platforms such as the OptiPlex, Dimension, and Precision lines that originally shipped with this drive. The standard 3.5" SATA form factor also means it can physically fit into any current SATA-capable system, though its 80GB capacity and mechanical speed make it most practical for legacy system use rather than modern primary storage.
