Western Digital WD1003V-MM1 61-600188-00 Winchester Hard Drive Controller ISA

(No reviews yet) Write a Review
SKU:
40857
MPN:
61-600188-00
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Western Digital WD1003V-MM1 ISA Winchester drive controller card — component side showing main controller chip, Winchester and floppy drive headers, and ISA edge connector

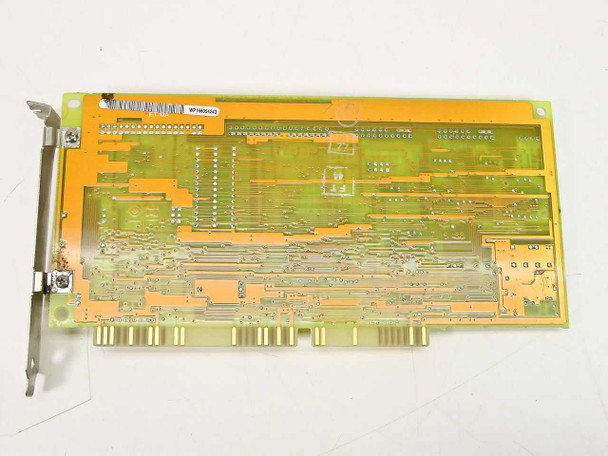

  • Western Digital WD1003V-MM1 ISA controller card — solder side view showing PCB traces and ISA bus edge connector fingers
  • Western Digital WD1003V-MM1 label close-up showing model WD1003V-MM1 F000 X2, part number 61-600188-00, and Drive 1 connector header with jumper block J3
$45.00
Was: $90.00
Current Stock: 1

Sold Out

Description

Western Digital WD1003V-MM1 61-600188-00 Winchester Hard Drive Controller ISA Card

ISA hard drive controller card for MFM/RLL Winchester drives. This half-length card connects Winchester hard drives to IBM PC/XT/AT systems and compatibles via 8-bit or 16-bit ISA bus interface.

Specifications & What's Included

  • Model: WD1003V-MM1 (MPN: 61-600188-00)
  • Bus Interface: ISA (8-bit/16-bit)
  • Compatible Drives: MFM/RLL Winchester Hard Drives
  • Form Factor: Half-Length ISA Card
  • Drive Connectors: Drive 1, Drive 2 (Winchester), Floppy
  • Board Revision: F000
  • Card only; no cables included

Applications

This controller card was standard equipment in IBM PC/XT/AT systems and compatible computers during the 1980s and early 1990s. It enabled connection of Winchester hard drives with MFM or RLL encoding to early PC platforms, handling data transfer and drive control functions. Systems using this controller type are now strictly for retrocomputing, archival access, or vintage computer restoration.

Condition: Used
This Western Digital WD1003V-MM1 Winchester hard drive controller card has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The PCB shows typical light handling wear consistent with normal service life; no visible damage, cracked traces, or missing components. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Western Digital
Model:
WD1003V-MM1
MPN:
61-600188-00
Type:
Winchester Hard Drive Controller Card
SKU:
40857
Bus Interface:
ISA (8-bit/16-bit)
Compatible Drive Type:
MFM / RLL Winchester Hard Drives
Form Factor:
Half-Length ISA Card
Drive Connectors:
Drive 1, Drive 2 (Winchester), Floppy
Board Revision:
F000
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Compatible With:
IBM PC/XT/AT and compatible systems
Seller Notes:
Card only; no cables included. Pulled from a working environment.
Condition Notes:
Western Digital WD1003V-MM1 ISA Winchester controller card. Inspected and in good used condition. Pulled from a working environment where it was in use and functional. No visible damage.
View AllClose

Related Products

Related Products

Western Digital WD1003V-MM1 16-bit ISA Winchester hard drive controller card — top component side showing main controller IC, drive header connectors labeled Drive 1 and Drive 2, and Winchester label Western Digital WD1003V-MM1 ISA hard drive controller card — solder side (bottom) showing ISA edge connector and PCB trace layout
Add to Cart
Quick view

Western Digital WD1003V-MM1 16-Bit ISA Winchester Hard Drive Controller Card

Western Digital

$40.00
Was: $80.00
Western Digital WD1003V-MM1 16-Bit ISA Winchester Hard Drive Controller Card 61-600188-00A 16-bit ISA controller card for Winchester hard drives using MFM or RLL interface standards. This card...
40858
SKU:
40858
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Western Digital
Model:
WD1003V-MM1
MPN:
61-600188-00
Type:
Winchester Hard Drive Controller Card
SKU:
40858
Bus Interface:
16-Bit ISA
Form Factor:
Half-Length ISA Card
Drive Interface:
MFM / RLL Winchester
Compatible Drives:
MFM and RLL Winchester hard drives
Number of Drive Connectors:
2 (Drive 1, Drive 2)
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Seller Notes:
Card only; pulled from a working environment. No accessories included.
Condition Notes:
Western Digital WD1003V-MM1 ISA Winchester controller card. Inspected, in good used condition. Pulled from a working environment. Light age-related patina on PCB; no damage or missing components. Card only.
Western Digital WD1003V-MM2 ISA Winchester floppy controller card — front PCB view showing main controller IC, Winchester and floppy drive headers, and ISA edge connector Western Digital WD1003V-MM2 controller card — rear PCB view showing solder side, drive edge connectors along bottom, and label with part number 61-600173-00
Add to Cart
Quick view

Western Digital WD1003V-MM2 Winchester Floppy ISA Controller Card 61-600173-00

Western Digital

$35.00
Was: $70.00
Western Digital WD1003V-MM2 Winchester Floppy ISA Controller Card 61-600173-00This is a 16-bit ISA controller card designed to manage both Winchester hard drives and floppy drives in vintage IBM...
40856
SKU:
40856
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Brand:
Western Digital
Model:
WD1003V-MM2
MPN:
61-600173-00
Type:
Winchester & Floppy Drive Controller Card
SKU:
40856
Bus Interface:
ISA (16-bit)
Compatible Drive Type:
MFM / Winchester Hard Drive, Floppy Drive
Form Factor:
Full-Length ISA Card
Revision / Variant:
F000 X4
Date Code:
8908 (August 1989)
Country/Region of Manufacture:
Ireland
Compatible With:
IBM PC/XT/AT and Compatible Systems
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; no cables or brackets included.
Condition Notes:
Western Digital WD1003V-MM2 ISA controller card in good used condition. Pulled from a working environment. PCB and connectors appear clean and intact. Please view photos and contact us with any questions.

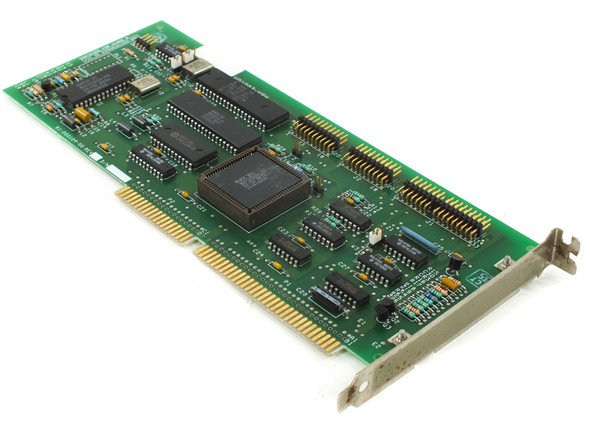

Western Digital WD1003-WAH 16-bit ISA MFM hard drive controller card — top component side, angled front-right view showing full PCB layout and ISA edge connector Western Digital WD1003-WAH MFM controller — top component side, straight overhead view showing model label, main chips, and PCB part number 61-000104-00
