Weltek 68AT Semiautomatic Tabletop Screen Printer 7x7 Vacuum Plate

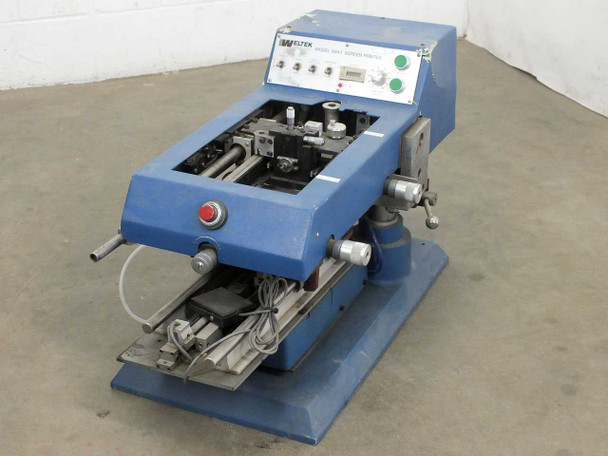

The Weltek 68AT is a precision semiautomatic tabletop screen printer built for small-format substrate printing. Made by Weltek Inc. (Precision Electronic Equipment) of South Bend, Indiana, the 68AT features a motorized squeegee drive with adjustable speed, a vacuum hold-down plate for substrate registration, and a front-panel control set for repeatable print cycles. Its compact tabletop footprint makes it suited for bench-scale production and laboratory printing environments.
Specifications & What's Included

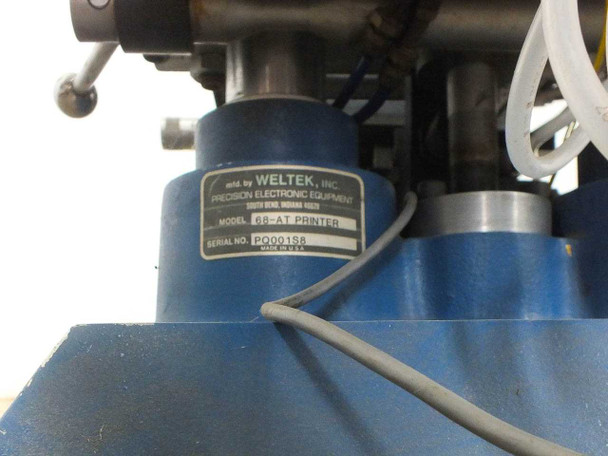

- Manufacturer: Weltek Inc. (Precision Electronic Equipment), South Bend, Indiana
- Model: 68AT Screen Printer
- Operation: Semiautomatic (motorized squeegee, manual screen/substrate load)
- Vacuum plate size: 7 x 7 in overall; vacuum hole pattern runs 5.75 x 5.75 in centered on plate
- Screen/plate inner edge (print area): 5.125 x 5.125 in
- Glueable screen edge area: 5.6125 x 5.6125 in
- Screen frame overall dimensions: 6.6125 x 6.125 in wide
- Rubber squeegee blade usable edge: 3.25 in (blade is 3.5 in overall with rounded corners)
- Front control panel: Power, Run, Mode, Squeegee toggle switches; Cycles counter display; Squeegee Speed dial; Inch Forward and Inch Reverse push buttons
- Pneumatic fittings on rear panel for vacuum supply
- Form factor: Tabletop/benchtop, mounted on steel base plate
- Made in U.S.A.
- Includes: Various used and printed screens
Applications
Small-format semiautomatic screen printers like the Weltek 68AT are used in electronics manufacturing and prototyping for precision deposition of solder paste, conductive inks, thick-film pastes, and adhesives onto substrates including PCBs, ceramic substrates, and membrane panels. The vacuum plate holds substrates flat and in registration during the squeegee stroke, which is critical for consistent paste or ink deposit thickness and placement accuracy. These machines are also used in research and development labs, university programs, and small-batch production shops where a full-size automatic printer is not warranted. The 68AT's screen size and vacuum plate dimensions make it well suited to small PCB assemblies and similar precision substrates requiring repeatable print registration.
This Weltek 68AT Semiautomatic Tabletop Screen Printer is in used condition and shows visible wear. The top housing has significant paint chipping and cracking on the blue enclosure — clearly visible in our photos. The mechanical assemblies, vacuum plate, and squeegee carriage appear intact. It has not been powered up or tested at our facility, but was pulled from a working environment where it was previously in use. Various used and printed screens are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Weltek |
Model: |
68AT |
MPN: |
68AT |
Type: |
Semiautomatic Tabletop Screen Printer |
SKU: |
49941 |
Seller Notes: |
Includes various used and printed screens. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Tabletop / Benchtop |
Vacuum Plate Size: |
7 x 7 in (vac-hole pattern: 5.75 x 5.75 in) |
Screen/Plate Inner Dimension: |
5.125 x 5.125 in |
Screen Frame Overall Dimension: |
6.6125 x 6.125 in |
Glueable Screen Edge Area: |
5.6125 x 5.6125 in |
Squeegee Blade Usable Edge: |
3.25 in (blade is 3.5 in overall with rounded corners) |
Operation Type: |
Semiautomatic |
Controls: |
Power, Run, Mode, Squeegee toggles; Cycles counter; Squeegee Speed dial; Inch Forward/Reverse buttons |
Condition Notes: |
This Weltek 68AT Tabletop Screen Printer shows visible wear including significant paint chipping on the top housing. Pulled from a working environment; not tested at our facility. Includes used/printed screens. |
