HTI Engineering HT-2 SMT Screen Printer 23x23 Dual Squeegee 220VAC 90 PSI

(No reviews yet) Write a Review
SKU:
46846
MPN:
HT-2
Condition:
Used
Availability:
Usually ships within 5-7 business days due to size and freight requirements.
Weight:
543.00 LBS
Shipping:
Calculated at Checkout

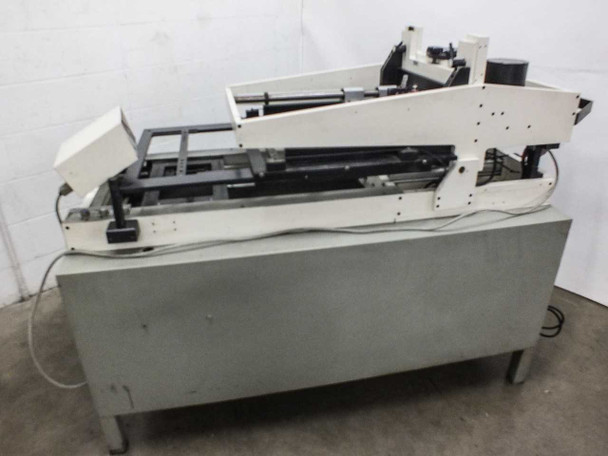

  • HTI Engineering HT-2 SMT screen printer – full machine side view showing print head carriage and integral stand
  • HTI Engineering HT-2 – top view of dual squeegee motor assemblies and pneumatic actuator arm

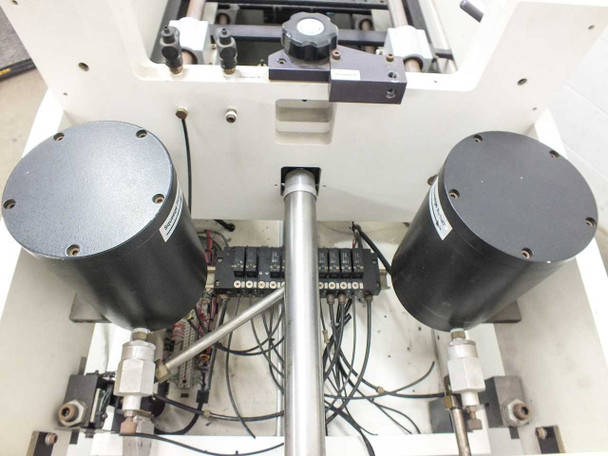

  • HTI Engineering HT-2 – interior view showing dual squeegee drive motors and pneumatic cylinder with wiring harness

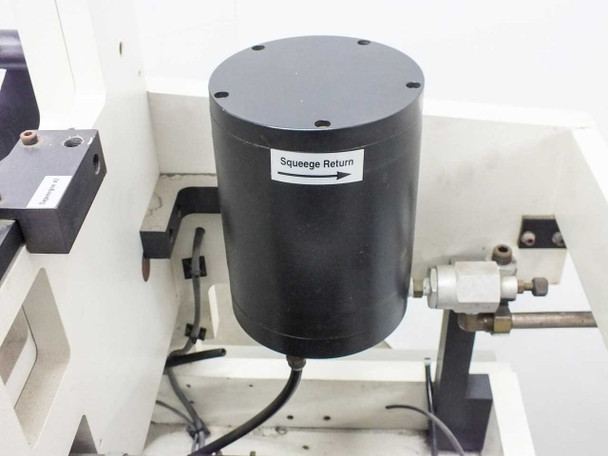

  • HTI Engineering HT-2 – close-up of Squeegee Return motor cylinder label and pneumatic fitting

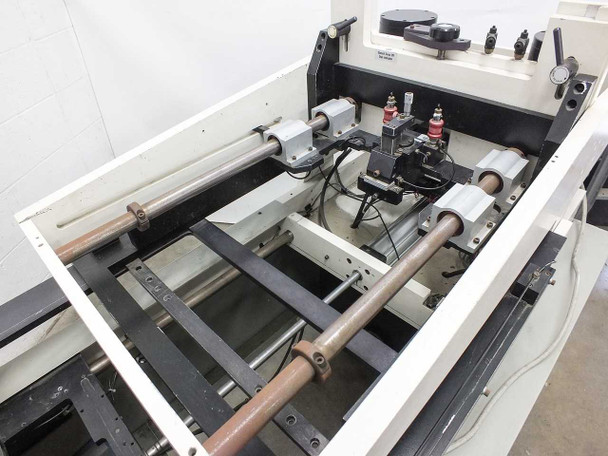

  • HTI Engineering HT-2 – top view of print platform showing squeegee carriage rails and linear guide rods

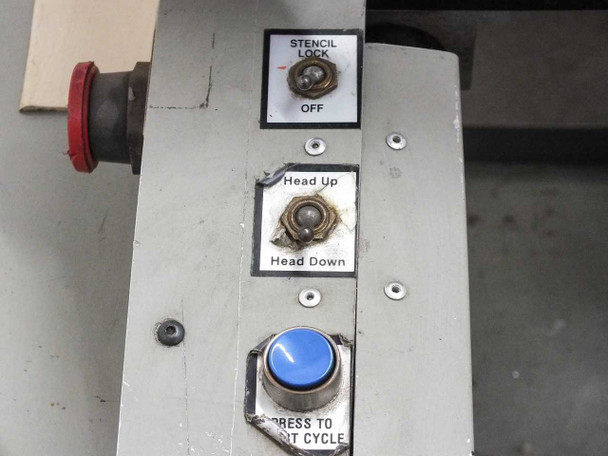

  • HTI Engineering HT-2 – operator control panel showing Stencil Lock, Head Up/Head Down toggle, and blue Print Cycle start button

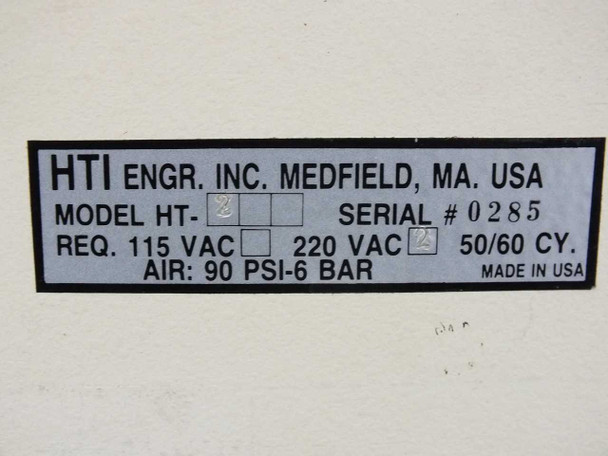

  • HTI Engineering HT-2 – rating plate label: HTI Engr. Inc. Medfield MA USA, Model HT-2, Serial 0285, 220 VAC, 90 PSI 6 Bar, Made in USA

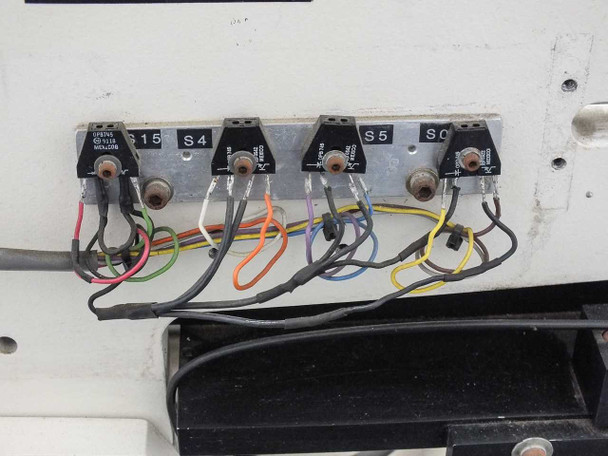

  • HTI Engineering HT-2 – position sensor array showing sensors S15, S4, S5, S0 with multi-color wiring
  • HTI Engineering HT-2 – secondary control panel showing Emergency Stop mushroom button and additional toggle switches

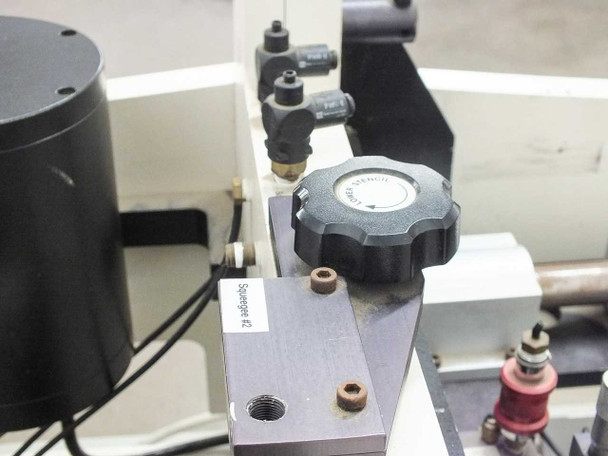

  • HTI Engineering HT-2 – close-up of Squeegee #2 pressure/flow adjustment knob and pneumatic block assembly

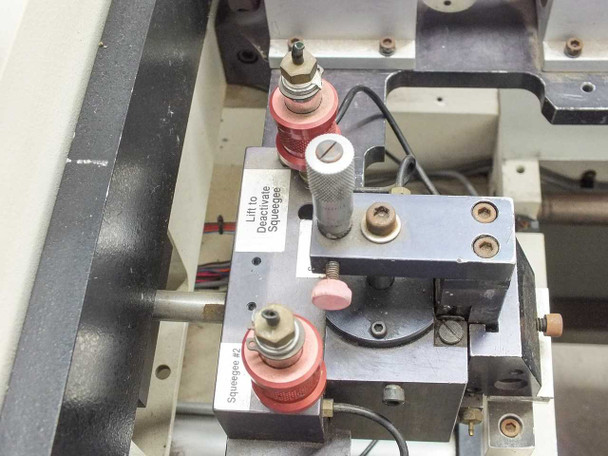

  • HTI Engineering HT-2 – close-up of dual squeegee head assembly with Lift to Deactivate Squeegees label and red pressure adjusters
  • HTI Engineering HT-2 – overhead view of open print platform frame with linear guide rails and squeegee carriage
  • HTI Engineering HT-2 – main electronic control panel showing Print Mode 1-4, On/Off Reset, Set-Up, Park, Status indicators, and HTI Eng. Inc. Medfield USA branding
  • HTI Engineering HT-2 – under-table view showing internal control box and cable routing

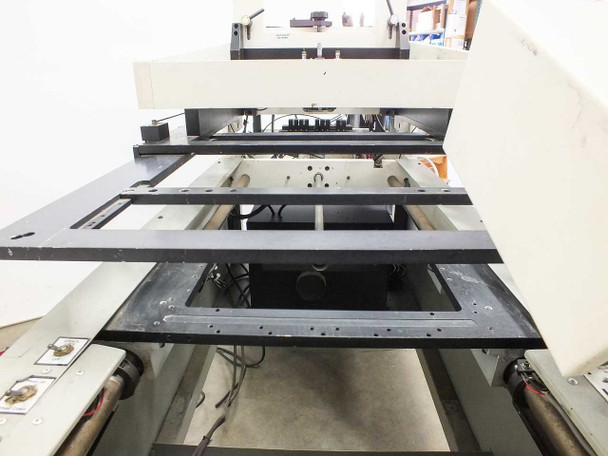

  • HTI Engineering HT-2 – low-angle view showing layered platform frames and underside print head mechanism
  • HTI Engineering HT-2 – HTI SMT Engineering Inc. brand badge on machine frame
  • HTI Engineering HT-2 – internal electrical enclosure box mounted under the print table
  • HTI Engineering HT-2 – internal blower/vacuum motor assembly inside the machine base enclosure
  • HTI Engineering HT-2 – closer view of blower motor and associated PCB control board inside base cabinet
  • HTI Engineering HT-2 – full machine rear/side view showing overall frame, stand, and print head assembly
  • HTI Engineering HT-2 23" x 23" Dual Squeegee Silkscreen Screen Printer - As Is
  • HTI Engineering HT-2 23" x 23" Dual Squeegee Silkscreen Screen Printer - As Is
$2,000.00
Was: $4,000.00
Current Stock: 1

Sold Out

Description

HTI Engineering HT-2 SMT Screen Printer 23x23 Dual Squeegee 220VAC 90 PSI

SMT stencil screen printer designed for solder paste application on PCBs. Features a 23x23 inch print platform, dual squeegee configuration, and four selectable print modes.

Specifications & What's Included

  • Model: HT-2
  • Screen platform: 23 x 23 inches
  • Squeegee configuration: Dual squeegee
  • Print modes: 4 selectable
  • Power: 220 VAC, 50/60 Hz
  • Air supply: 90 PSI / 6 Bar required
  • Dimensions: 70 in L x 31 in W x 49 in H
  • Control features: On/Off/Reset, Set-Up, Park, Parts Counter, Speed
  • Machine only; stencils and squeegees not included

Applications

Used in PCB assembly lines for automated solder paste deposition. Common in electronics manufacturing environments where consistent stencil printing is required prior to reflow soldering. This equipment type is standard in contract manufacturers and OEM production facilities handling surface mount technology boards.

Condition: For Parts or Not Working
This HTI Engineering HT-2 SMT Screen Printer has been visually inspected and appears to be in good cosmetic condition overall. The white-painted frame and stand show typical wear including surface scuffs and minor paint chips consistent with shop use. The control panels, sensors, and wiring appear intact. We were unable to power or operationally test this machine, so it is being sold strictly as-is and as-photographed — no functionality is guaranteed. Please review the full photo set carefully before purchasing, and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
HTI Engineering
Model:
HT-2
MPN:
HT-2
Type:
SMT Silkscreen / Stencil Screen Printer
SKU:
46846
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is / as-photographed. Machine only; no stencil or squeegees included.
Country/Region of Manufacture:
United States
Screen Platform Size:
23 x 23 in
Power Requirements:
220 VAC, 50/60 Hz
Air Supply Required:
90 PSI / 6 Bar
Squeegee Configuration:
Dual Squeegee
Print Modes:
4 selectable print modes
Control Panel Features:
On/Off/Reset, Set-Up, Park, Parts Counter, Speed
Overall Dimensions:
70 in L x 31 in W x 49 in H
Application:
SMT PCB solder paste / silkscreen printing
Form Factor:
Freestanding / Benchtop on integral stand
Manufacturer Location:
Medfield, MA, USA
Condition Notes:
HTI Engineering HT-2 SMT Screen Printer. Visually inspected; good cosmetic condition. Could not be powered or operationally tested — sold strictly as-is/as-photographed. No functionality guaranteed. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

Molex to dual SATA power splitter cable showing full 6-inch length with 4-pin Molex input and two SATA power output connectors Close-up of 4-pin Molex female input connector end of SATA power splitter cable
Add to Cart
Quick view

Molex to Dual SATA Power Splitter Cable 6 inch 4-Pin to 2x SATA Adapter

Dual

$4.00
Was: $8.00
Molex to Dual SATA Power Splitter Cable 6 inch 4-Pin to 2x SATA AdapterInternal power cable adapter that converts a single 4-pin Molex connector to two 15-pin SATA power connectors. Enables...
42927
SKU:
42927
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Unbranded
Model:
Molex to Dual SATA Power Splitter
Type:
Internal Power Cable Adapter / Splitter
SKU:
42927
Connector A (Input):
4-Pin Molex (Female)
Connector B (Output):
2x 15-Pin SATA Power (Female)
Number of SATA Outputs:
2
Cable Length:
6 inches (approx. 15 cm)
Compatible With:
SATA HDD, SATA SSD, SATA Optical Drives
Interface:
SATA Power / Molex 4-Pin
Cable Color:
Black, Red, Yellow, White
Condition:
Used – Inspected and Tested
Seller Notes:
Cable only. Tested and in working order.
Country/Region of Manufacture:
China
Condition Notes:
Molex to Dual SATA Power Splitter Cable tested and in working order. Good physical condition — no damage to connectors or wiring. 4-pin Molex and both SATA outputs clean and intact.

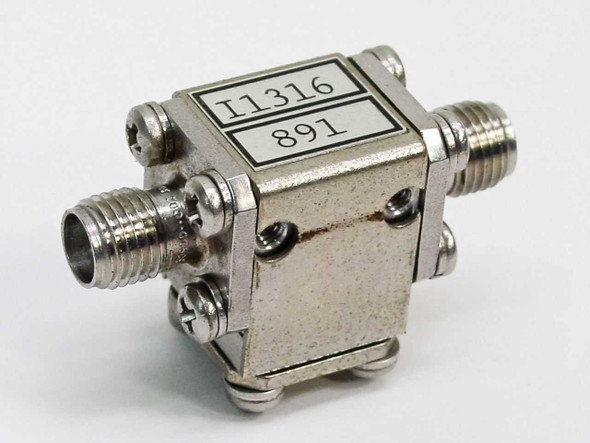

SMT I1316 891 RF coaxial isolator angled top view showing model label and SMA connectors on two sides SMT I1316 891 RF coaxial isolator front view showing model number label and two SMA female ports labeled 1 and 2
