Wellfleet

Wellfleet Communications ACE-32 106727-38 CPU Board MC68020RC33E PWB 103872

(No reviews yet) Write a Review
SKU:
14811
MPN:
106727-38
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

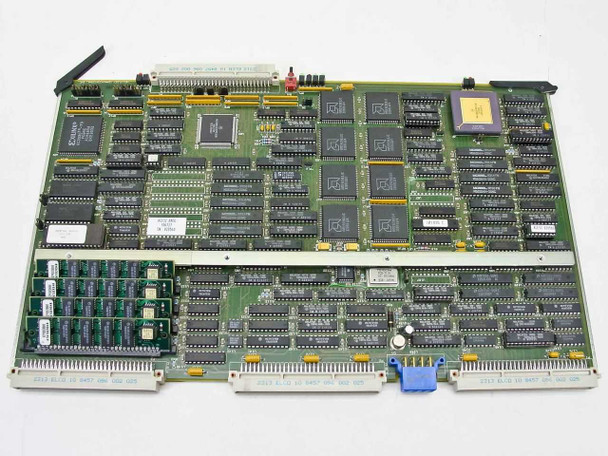

  • Wellfleet ACE-32 106727-38 CPU board – top-side component view showing Motorola MC68020 processor and SIMM memory modules
  • Wellfleet ACE-32 board – close-up of SIMM memory modules with Motorola MCA4414 and TQFP4339 chips visible
  • Wellfleet ACE-32 board – close-up of Motorola MC68020RC33E 33MHz processor chip, gold ceramic package
  • Wellfleet ACE-32 106727-38 – PCB bottom/solder side view showing full board layout
  • Wellfleet ACE-32 board edge label – PWB# 103872 Rev A, ACE-32, Made in USA, Wellfleet Communications Inc.
  • Wellfleet ACE-32 board – side profile view showing large high-density connector and indicator LEDs
  • Wellfleet ACE-32 106727-38 CPU board – angled three-quarter view showing board depth and dual bus connectors
$200.00
Was: $550.00
Current Stock: 2

Sold Out

Description

Wellfleet Communications ACE-32 106727-38 CPU Board MC68020RC33E PWB 103872

CPU processor board for Wellfleet BN and BCN router chassis. Features a Motorola MC68020RC33E processor running at 33 MHz.

Specifications & What's Included

  • Model: ACE-32 106727-38
  • Processor: Motorola MC68020RC33E 33 MHz
  • PWB Number: 103872 Rev A
  • Form Factor: Card / Module
  • Compatible with: Wellfleet BN / BCN Router Chassis
  • Manufactured: USA
  • Board only; no accessories included

Applications

This CPU board was used in Wellfleet routing platforms during the 1990s. The ACE-32 processor board served as the central processing unit for BN and BCN router chassis, handling packet routing and network control functions in enterprise networking environments. Wellfleet routers were deployed in corporate networks and service provider infrastructure before the company's acquisition by Bay Networks in 1996.

Condition: Used
This Wellfleet Communications ACE-32 CPU board (part# 106727-38) is in used condition and has been visually inspected. The board shows normal wear consistent with prior installation in a rack-mount router chassis. The PCB, processor, and memory modules all appear intact with no visible damage, broken traces, or missing components. Condition has not been independently bench-tested at our facility — please review our photos carefully and contact us with any questions before purchasing. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Wellfleet Communications
Model:
106727-38
Secondary Model:
ACE-32
MPN:
106727-38
PWB Number:
103872 Rev A
SKU:
14811
Type:
CPU / Processor Board
Processor:
Motorola MC68020RC33E (33 MHz)
Form Factor:
Card / Module
Compatible With:
Wellfleet BN / BCN Router Chassis
Country/Region of Manufacture:
USA
Condition:
Used – Inspected
Seller Notes:
Board only; no accessories included.
Condition Notes:
Wellfleet ACE-32 106727-38 CPU board, used and visually inspected. Board and components appear intact with no visible damage. Not bench-tested at our facility. Please review photos and contact us with questions.
