Welch Allyn

Welch Allyn 41202814-01 AC Adapter +12V 400mA -12V 100mA +5V 700mA Class 2

(No reviews yet) Write a Review
SKU:
24074
MPN:
41202814-01
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout
  • Welch Allyn 41202814-01 Class 2 AC Adapter – three-quarter view showing body, AC power cord, and 5-pin DIN output cable
  • Welch Allyn 41202814-01 label showing input 120VAC 60Hz, outputs +12VDC 400mA, -12VDC 100mA, +5VDC 700mA, UL and CSA markings
  • Welch Allyn 41202814-01 AC Adapter – close-up of 2-prong AC input plug and 5-pin DIN output connector
$50.00
Was: $100.00
Current Stock: 5

Sold Out

Description

Welch Allyn 41202814-01 AC Adapter +12V 400mA -12V 100mA +5V 700mA Class 2

Class 2 AC power adapter supplying three regulated DC outputs from a standard 120VAC, 60Hz input. Connects via 5-pin DIN output connector and standard polarized 2-prong AC plug.

Specifications & What's Included

  • Model: 41202814-01
  • Input: 120 VAC, 60Hz; Max 40 Watts
  • Output 1: +12 VDC, 400mA
  • Output 2: -12 VDC, 100mA
  • Output 3: +5 VDC, 700mA
  • Output Connector: 5-pin DIN
  • UL Listed (E98241), CSA Certified (LR67065)
  • Manufactured: Taiwan
  • AC adapter only; no accessories included

Applications

Used with Welch Allyn medical and diagnostic equipment requiring multi-voltage DC power. The dual positive and negative 12V outputs with 5V supply support legacy instrumentation and monitoring devices from the manufacturer's equipment lines. Operates on standard US 60Hz residential or commercial power.

Condition: Used
This Welch Allyn 41202814-01 Class 2 AC Adapter has been inspected and is in good used condition. The unit shows normal cosmetic wear consistent with previous use. The AC power cord and 5-pin DIN output connector are intact and show no damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Welch Allyn
Model:
41202814-01
MPN:
41202814-01
Type:
Class 2 AC Power Adapter / Power Supply
SKU:
24074
Input Voltage:
120 VAC, 60Hz
Max Input Power:
40 Watts
Output 1:
+12 VDC, 400mA
Output 2:
-12 VDC, 100mA
Output 3:
+5 VDC, 700mA
Number of Outputs:
3
Output Connector:
5-pin DIN
Input Connector:
2-prong NEMA 1-15 / polarized AC plug
Power Class:
Class 2
Certifications:
UL Listed (E98241), CSA (LR67065)
Country/Region of Manufacture:
Taiwan
Condition:
Used – Inspected
Seller Notes:
AC adapter only; no additional accessories included.
Compatible With:
Welch Allyn medical/diagnostic equipment
Condition Notes:
Welch Allyn 41202814-01 Class 2 AC Adapter inspected and in good used condition. Normal cosmetic wear. AC cord and DIN connector intact. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

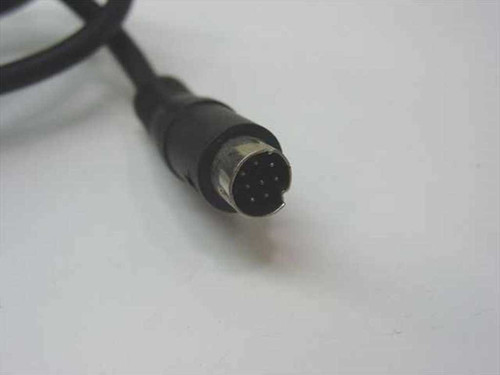

Motorola RJK-12125C 744203030000 AC adapter with 8-pin DIN output cable — full unit view showing black housing and US plug Motorola RJK-12125C AC adapter — close-up of 8-pin proprietary DIN output connector
