Motorola

Motorola RJK-12125C 744203030000 AC Adapter +5V 500mA +12V -12V 120mA DIN

(No reviews yet) Write a Review
SKU:
18381
MPN:
744203030000
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Motorola RJK-12125C 744203030000 AC adapter with 8-pin DIN output cable — full unit view showing black housing and US plug
  • Motorola RJK-12125C AC adapter — close-up of 8-pin proprietary DIN output connector
  • Motorola RJK-12125C 744203030000 regulated power supply label showing P/N, input 120VAC 60Hz, and output voltage/current ratings
$20.00
Was: $30.00
Current Stock: 1

Sold Out

Description

Motorola RJK-12125C 744203030000 AC Adapter +5V 500mA +12V -12V 120mA DIN

Regulated AC power adapter supplying three separate voltage outputs from a single wall-mounted unit. Converts 120VAC input to regulated +5V, +12V, and -12V outputs for powering Motorola telecommunications and industrial equipment.

Specifications & What's Included

  • Input: 120VAC, 60Hz, 150mA
  • Output: +5V @ 500mA; +12V @ 120mA; -12V @ 120mA
  • Three separate regulated outputs
  • 8-pin proprietary DIN connector
  • Class 2 power supply, UL Listed (E97515)
  • Manufactured in Taiwan

Applications

Multi-output power adapters of this type were commonly used in Motorola telecom infrastructure, radio systems, and industrial control equipment from the 1980s through early 2000s. The three isolated voltage rails accommodate mixed-voltage circuit designs typical of vintage telecommunications switching equipment, base station controllers, and radio repeater systems. Compatible with Motorola RJK series and related proprietary equipment using DIN connector interfaces.

Condition: Used
This Motorola RJK-12125C regulated AC adapter (P/N 744203030000) has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The housing is intact with no cracks or broken plastic; the output cable and 8-pin DIN connector show normal wear consistent with prior use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Motorola
Model:
RJK-12125C
MPN:
744203030000
Type:
Regulated AC Power Adapter
SKU:
18381
Input Voltage:
120VAC, 60Hz, 150mA
Output Voltage:
+5V, +12V, -12V
Output Current:
+5V: 500mA; +12V: 120mA; -12V: 120mA
Number of Outputs:
3
Output Connector Type:
8-Pin Proprietary DIN
Power Class:
Class 2
Safety Rating:
UL Listed (E97515)
Condition:
Used – Pulled from Working Environment
Seller Notes:
AC adapter only; pulled from a working environment
Country/Region of Manufacture:
Taiwan
Form Factor:
Wall Plug / Inline Adapter
Condition Notes:
Motorola RJK-12125C (744203030000) AC adapter. Inspected, in good used condition. Pulled from a working environment where it was functional. Housing intact; cable and DIN connector show normal wear. Contact us with questions.
View AllClose

Related Products

Related Products

Welch Allyn 41202814-01 Class 2 AC Adapter – three-quarter view showing body, AC power cord, and 5-pin DIN output cable Welch Allyn 41202814-01 label showing input 120VAC 60Hz, outputs +12VDC 400mA, -12VDC 100mA, +5VDC 700mA, UL and CSA markings
Add to Cart
Quick view

Welch Allyn 41202814-01 AC Adapter +12V 400mA -12V 100mA +5V 700mA Class 2

Welch Allyn

$50.00
Was: $100.00
Welch Allyn 41202814-01 AC Adapter +12V 400mA -12V 100mA +5V 700mA Class 2Class 2 AC power adapter supplying three regulated DC outputs from a standard 120VAC, 60Hz input. Connects via 5-pin DIN...
24074
SKU:
24074
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Brand:
Welch Allyn
Model:
41202814-01
MPN:
41202814-01
Type:
Class 2 AC Power Adapter / Power Supply
SKU:
24074
Input Voltage:
120 VAC, 60Hz
Max Input Power:
40 Watts
Output 1:
+12 VDC, 400mA
Output 2:
-12 VDC, 100mA
Output 3:
+5 VDC, 700mA
Number of Outputs:
3
Output Connector:
5-pin DIN
Input Connector:
2-prong NEMA 1-15 / polarized AC plug
Power Class:
Class 2
Certifications:
UL Listed (E98241), CSA (LR67065)
Country/Region of Manufacture:
Taiwan
Condition:
Used – Inspected
Seller Notes:
AC adapter only; no additional accessories included.
Compatible With:
Welch Allyn medical/diagnostic equipment
Condition Notes:
Welch Allyn 41202814-01 Class 2 AC Adapter inspected and in good used condition. Normal cosmetic wear. AC cord and DIN connector intact. Please view photos and contact us with questions.
Data Comm for Business 9501008 DC Output Supply – front-left view showing black enclosure, AC input cord, and DIN output cable Data Comm for Business 9501008 DC Output Supply – rear-right view showing ventilation slots and 5-pin DIN output connector end
Add to Cart
Quick view

Data Comm for Business 9501008 DC Output Supply 70W 120VAC +5V +12V -12V DIN

DataComm

$35.00
Was: $70.00
Data Comm for Business 9501008 DC Output Supply 70W 120VAC +5V +12V -12V DINExternal DC power supply providing regulated output for industrial and telecommunications equipment. Converts standard...
18239
SKU:
18239
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Brand:
Data Comm for Business
Model:
9501008
MPN:
9501008
Type:
DC Output Power Supply
SKU:
18239
Input Voltage:
120 VAC
Input Frequency:
60 Hz
Phase:
Single Phase (1Ø)
Power Rating:
70 Watts
Output Voltage 1:
+5 VDC @ 2.0 A
Output Voltage 2:
+12 VDC @ 0.50 A
Output Voltage 3:
-12 VDC @ 0.50 A
Number of Outputs:
3
Output Connector:
5-Pin DIN (male)
Input Connector:
NEMA 5-15 (standard US 3-prong)
Form Factor:
External Brick / Desktop
Country/Region of Manufacture:
United States
Condition:
Used – Inspected, Good Condition
Seller Notes:
Includes attached AC input cord and 5-pin DIN output cable.
Condition Notes:
Data Comm for Business 9501008 DC Output Supply. Inspected and in good used condition. Enclosure intact, AC cord and DIN output cable present. Normal wear. Contact us with any questions.

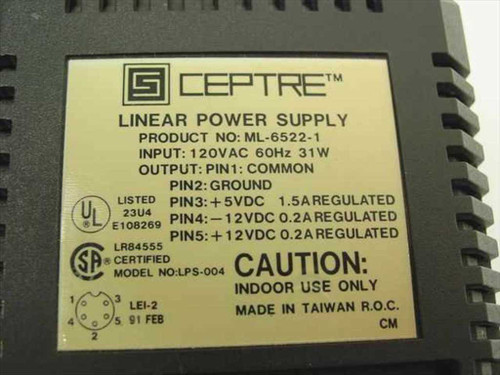

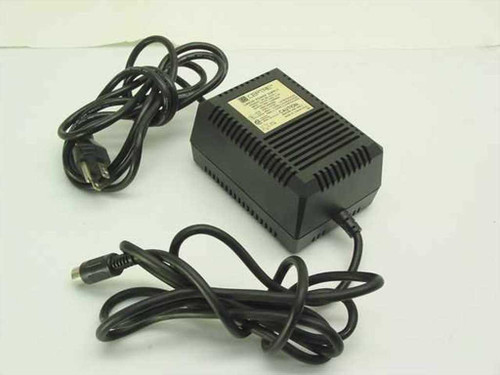

Ceptre ML-6522-1 linear power supply – full unit view showing black brick body with attached AC power cord and 5-pin DIN output cable Ceptre ML-6522-1 rating label showing Linear Power Supply, 120VAC 60Hz 31W input, regulated +5VDC 1.5A, +12VDC 0.2A, -12VDC 0.2A outputs, UL and CSA certifications, Made in Taiwan
