Weinschel Engineering 41922 Fixed Coaxial Attenuator 10dB 1.5 GHz N-Type RF

Weinschel Engineering 41922 Fixed Coaxial Attenuator 10dB 1.5 GHz N-Type RF

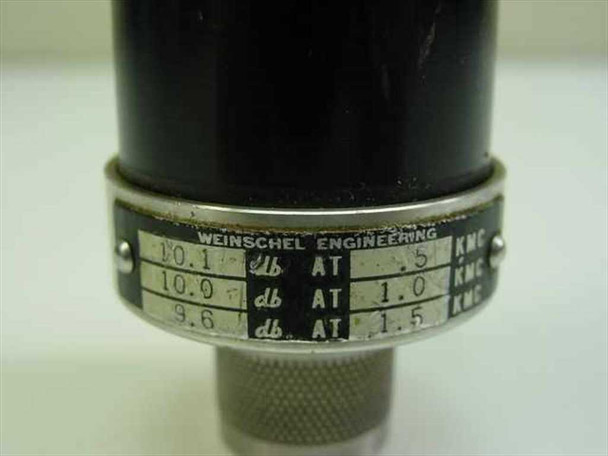

The Weinschel Engineering 41922 is a fixed coaxial RF attenuator in a ruggged cylindrical in-line form factor. The calibration label on the unit shows measured attenuation values of 10.1 dB at 0.5 GHz, 10.0 dB at 1.0 GHz, and 9.6 dB at 1.5 GHz, giving buyers precise per-frequency performance data. It uses N-type connectors — a male connector on one end and a female on the other — for straightforward in-line insertion into a coaxial signal path.

Specifications & What's Included

• Manufacturer: Weinschel Engineering
• Model / Part Number: 41922
• Type: Fixed coaxial RF attenuator
• Nominal attenuation: 10 dB
• Calibrated values (from label): 10.1 dB @ 0.5 GHz | 10.0 dB @ 1.0 GHz | 9.6 dB @ 1.5 GHz
• Frequency range: DC to 1.5 GHz
• Connector type: N-type (male one end, female other end)

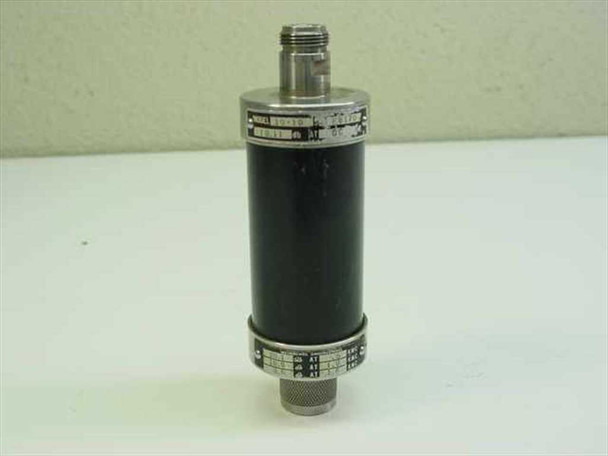

• Form factor: In-line cylindrical body with knurled end cap
• Unit only — no additional accessories included

Applications

Fixed coaxial attenuators of this type are standard components in RF and microwave test setups, used to reduce signal levels by a precise, stable amount without introducing significant impedance mismatch. The 41922 is suited for use on test benches with spectrum analyzers, signal generators, network analyzers, and other RF instrumentation operating up to 1.5 GHz. They are also used in system integration to protect sensitive receiver inputs from overdrive, or to establish controlled signal levels during device characterization. N-type fixed attenuators in this style were widely used in aerospace, defense electronics, and telecommunications lab environments.
