Weinschel Engineering 10-10 Precision Coaxial Attenuator 10 dB N-Type RF

(No reviews yet) Write a Review
SKU:
33228
MPN:
43018
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

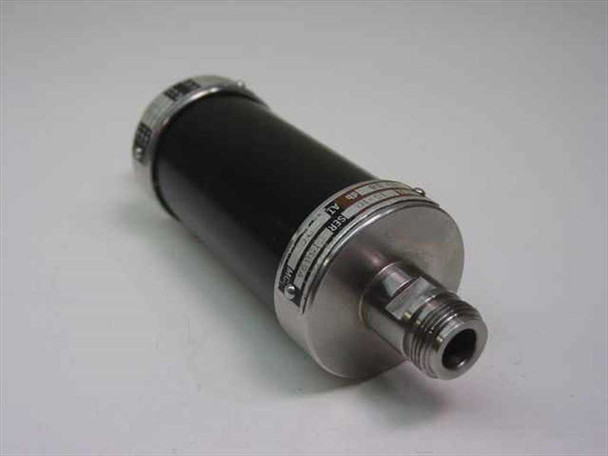

  • Weinschel Engineering Model 10-10 precision 10 dB coaxial attenuator – three-quarter front view showing black cylindrical body and N-male connector
  • Weinschel Engineering 10-10 attenuator – side view showing specification label and knurled N-male connector end
  • Weinschel 10-10 coaxial attenuator – end-on view of N-female connector port
  • Weinschel 10-10 coaxial attenuator – end-on view of N-male connector with center pin
  • Weinschel Engineering 10-10 attenuator label closeup – Model 10-10, Serial E15694, 10.08 dB AT DC
  • Weinschel Engineering attenuator data plate closeup – attenuation table showing 10.1 dB at 0.5 KMc, 10.0 dB at 1.0 KMc, 9.6 dB at 1.5 KMc
$40.00
Was: $80.00
Current Stock: 1

Sold Out

Description

Weinschel Engineering 10-10 Precision Coaxial Attenuator 10 dB N-Type RF Microwave

Fixed precision coaxial attenuator rated at 10 dB (10.08 dB per label). Provides consistent signal reduction across DC to microwave frequencies. Inline design with N-type male and female connectors.

Specifications & What's Included

  • Model: 10-10 (Weinschel Engineering)
  • Attenuation: 10 dB
  • Connectors: N-Male / N-Female
  • Frequency Range: DC to Microwave
  • Dimensions: 89 x 40 mm
  • Form Factor: In-Line / Handheld
  • Country of Manufacture: United States
  • Attenuator only; no accessories included

Applications

Fixed attenuators are used in RF and microwave test and measurement setups to reduce signal levels for equipment protection and accurate testing. Common in laboratory environments, telecommunications infrastructure testing, and microwave system characterization. N-type connectors are standard in professional RF/microwave applications up to several GHz.

Condition: Used
This Weinschel Engineering Model 10-10 precision 10 dB coaxial attenuator has been inspected and is in good used condition. The body and stainless steel end caps show light wear consistent with bench use. Both the N-male and N-female connectors are present and appear clean and undamaged. The specification label and attenuation data plate are intact and legible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Weinschel Engineering
Model:
10-10
MPN:
10-10
Type:
Fixed Precision Coaxial Attenuator
SKU:
33228
Attenuation:
10 dB (10.08 dB per label)
Connector Type:
N-Type (N-Male and N-Female)
Frequency Range:
DC to Microwave
Body Dimensions:
89 x 40 mm
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Attenuator only; no additional accessories included.
Country/Region of Manufacture:
United States
Form Factor:
In-Line / Handheld
Application:
RF, Microwave, Lab Test and Measurement
Condition Notes:
Weinschel Engineering 10-10 precision 10 dB coaxial attenuator. Inspected and in good used condition. N-male and N-female connectors clean and undamaged. Labels intact and legible.
View AllClose
