Wang

Wang 7760-R3M3 Power Module PCB Board Sangamo Capacitors 8200uF 25V 4000uF

(No reviews yet) Write a Review
SKU:
41129
MPN:
7760-R3M3
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

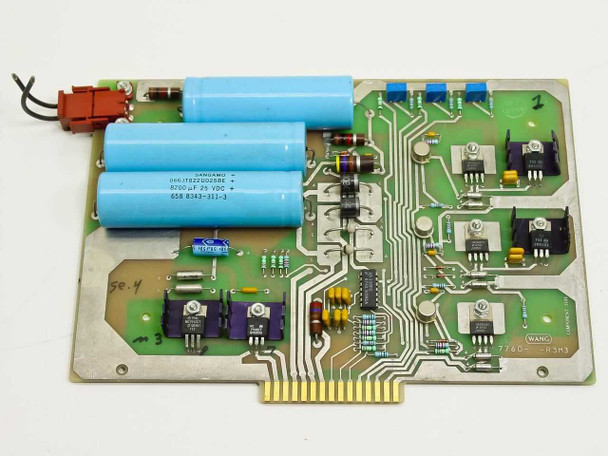

  • Wang 7760-R3M3 Power Module PCB board – top component side showing three blue Sangamo electrolytic capacitors, resistors, transistors, and red wire harness connector

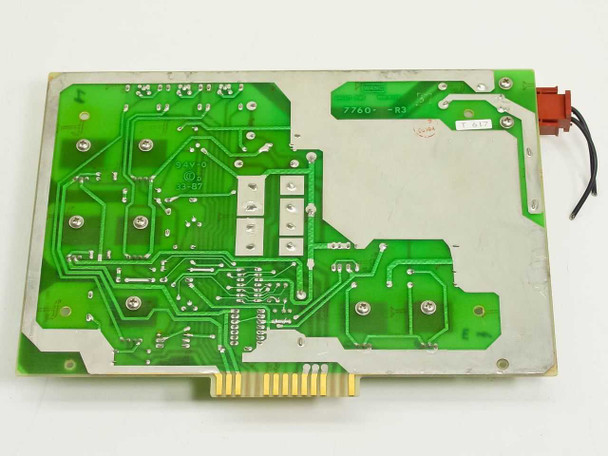

  • Wang 7760-R3M3 Power Module PCB board – solder/bottom side showing gold edge connector, trace routing, and partial part number label

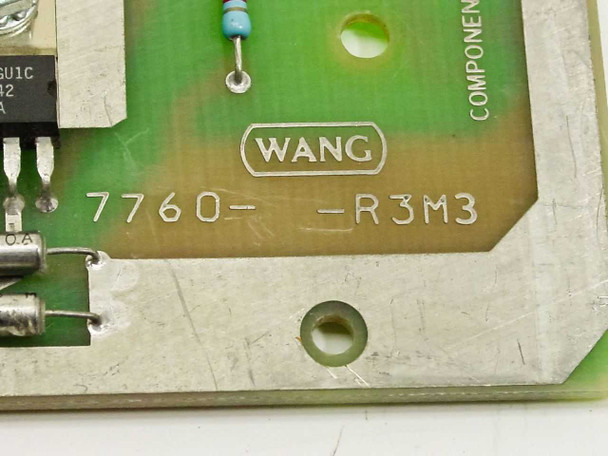

  • Wang 7760-R3M3 Power Module PCB board – close-up of silkscreen showing WANG logo and model number 7760-R3M3 on board edge

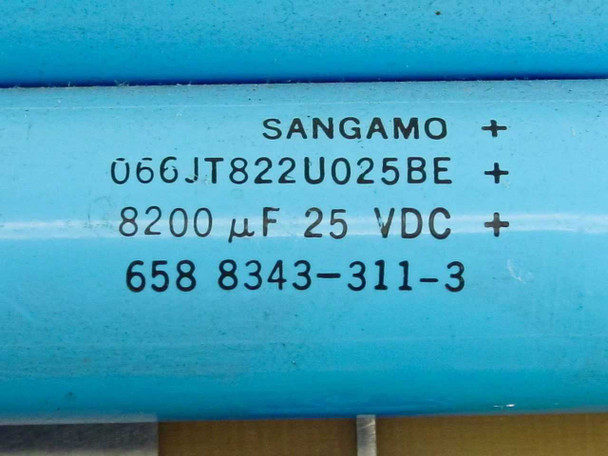

  • Sangamo capacitor close-up – part number 066JT822U025BE, 8200 uF 25 VDC, reference 658 8343-311-3

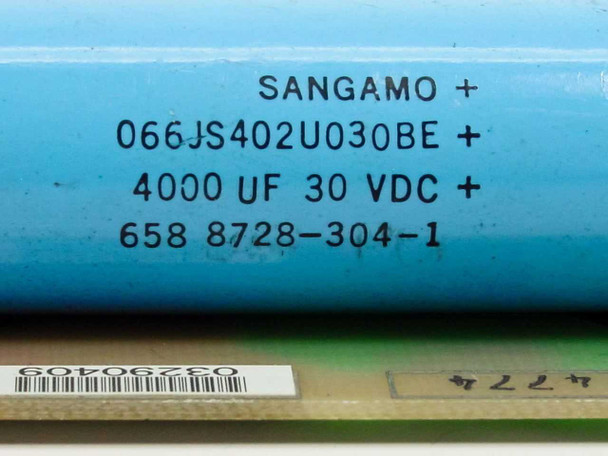

  • Sangamo capacitor close-up – part number 066JS402U030BE, 4000 uF 30 VDC, reference 658 8728-304-1
$25.00
Was: $50.00
Current Stock: 1

Sold Out

Description

Wang 7760-R3M3 Power Module PCB Board Sangamo Capacitors 8200uF 25V 4000uF

Power supply module designed for Wang 7760 series computer systems. Provides voltage regulation and power distribution to compatible Wang industrial and business computer platforms.

Specifications & What's Included

  • Model: Wang 7760-R3M3
  • Type: Power Module PCB Board
  • Primary capacitor: Sangamo 8200 µF 25 VDC (066JT822U025BE)
  • Secondary capacitor: Sangamo 4000 µF 30 VDC (066JS402U030BE)
  • Connectors: Gold edge connector, red multi-pin wire harness attached
  • Manufactured: United States
  • Board only; no additional accessories included

Applications

This power module was used in Wang computer systems, particularly the 7760 series terminals and processors common in business and industrial environments from the 1980s through 1990s. Power modules of this type supply stable DC voltage to processor and memory circuits. Compatible with Wang 7760 series equipment requiring this specific form factor and connector configuration.

Condition: Used
This Wang 7760-R3M3 Power Module PCB board has been inspected and appears to be in good condition. The board shows normal age-related patina consistent with vintage electronics of this era, with no obvious physical damage, broken traces, or missing components. The three large Sangamo electrolytic capacitors are intact, and the red wire harness connector is attached. The gold edge connector on the bottom shows typical surface oxidation but is otherwise intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Wang
Model:
7760-R3M3
MPN:
7760-R3M3
Type:
Power Module PCB Board
SKU:
41129
Condition:
Used – Inspected
Form Factor:
Card/Module
Compatible With:
Wang computer systems (7760 series)
Capacitor 1 Manufacturer:
Sangamo
Capacitor 1 Part Number:
066JT822U025BE
Capacitor 1 Value:
8200 uF 25 VDC
Capacitor 1 Reference Number:
658 8343-311-3
Capacitor 2 Manufacturer:
Sangamo
Capacitor 2 Part Number:
066JS402U030BE
Capacitor 2 Value:
4000 uF 30 VDC
Capacitor 2 Reference Number:
658 8728-304-1
Connector Type:
Red multi-pin connector (wire harness); gold edge connector
Country/Region of Manufacture:
United States
Seller Notes:
Board only, includes attached red wire harness connector. No additional accessories.
Condition Notes:
Wang 7760-R3M3 Power Module PCB board. Inspected and in good condition. Board shows normal age-related wear. Sangamo capacitors intact, edge connector present, red wire harness attached. No visible damage.
View AllClose
