Volkmann AD-1 Adjustable Frequency Drive Board Panel 20001BBG1M1021 0-600Hz

Volkmann AD-1 Adjustable Frequency Drive Board Panel 20001BBG1M1021 0-600Hz

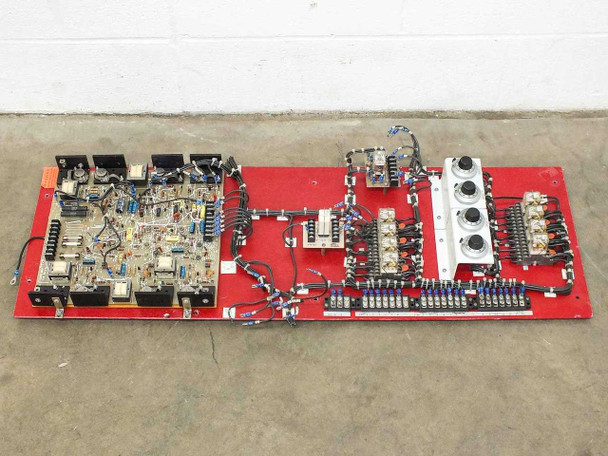

This is a Volkmann Electronic Drives AD-1 adjustable frequency drive control board panel, part number 20001BBG1M1021, mounted on a large red metal backplane. The assembly includes the main AD-1 drive PCB along with a full complement of relays and Spectrol Reliance precision speed-control potentiometers. It was pulled from a Volkmann 70545AA / 70490AA 30/40 KVA adjustable frequency AC drive system rated 0–600 Hz / 0–667 Hz.

Specifications & What's Included

• Manufacturer: Volkmann Electronic Drives
• Drive Board Model: AD-1
• Drive Board Part Number: 20001BBG1M1021
• Drive Board Serial Number: 1888 (visible on label)
• Parent System: Volkmann 70545AA / 70490AA Adjustable Frequency AC Drive
• Parent System Rating: 30 / 40 KVA, 0–600 Hz / 0–667 Hz
• Relay (Qty 1): Potter & Brumfield R10S-E1-Y2-J1.1K
• Relays (Qty 9): Eagle Signal 17P4C 16007 A120 — AC 120V

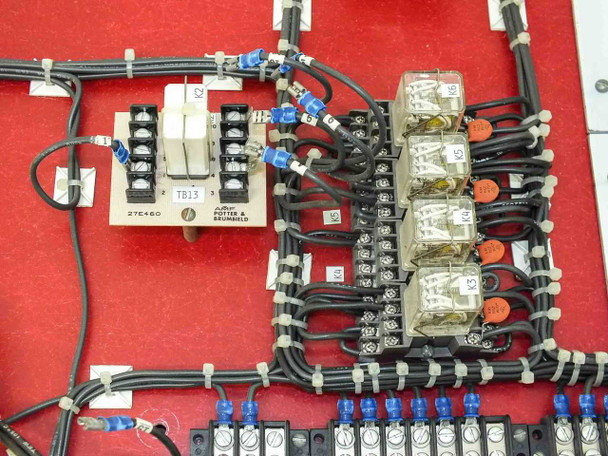

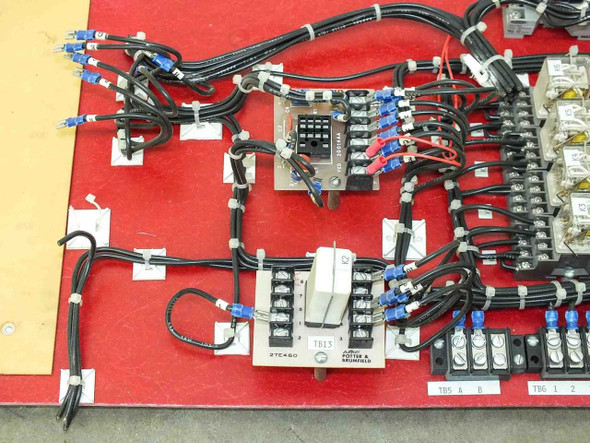

• Relay Sub-Board: VED 20C14AA (K1 relay module with terminal block TB4, terminals F/G/H/A/B/C)
• Precision Potentiometers (Qty 4): Spectrol Reliance MOD 534 — labeled Speed 1, Speed 2, Speed 3, Speed 4

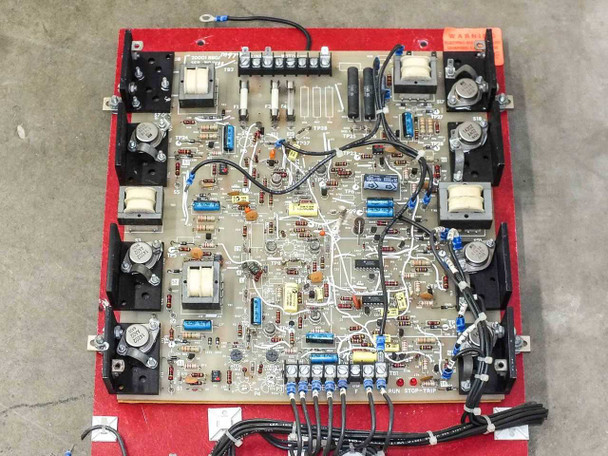

• Drive board features fuse positions F1, F3, F4 (inline fuse holders, LINE/MOTOR terminal block TB2)
• Control terminal block TB1: labeled F, STOP, RUN, STOP-TRIP

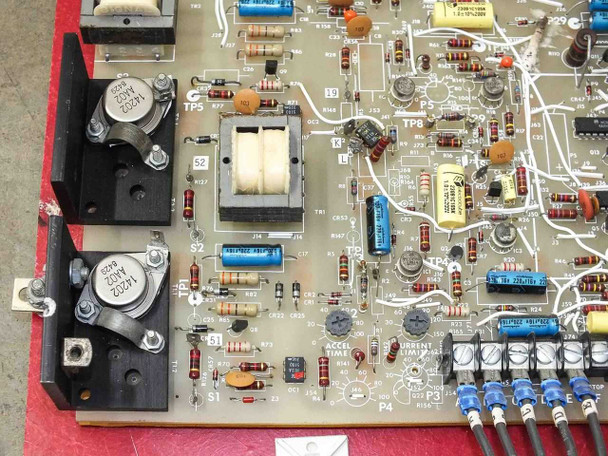

• On-board adjustments: ACCEL TIMER and CURRENT LIMIT trim potentiometers
• Power devices: A4202 transistors on heat sinks (multiple)
• Test points: TP24, TP25, TP28, TP37, TP38 and others visible on PCB
• Mounting: open red metal panel / backplane (no enclosure)
• Multi-conductor wiring harnesses present and intact
