Volkmann AD-1 Adjustable Frequency Drive Board 20001BBG1M1021 0-600Hz AC

(No reviews yet) Write a Review
SKU:
48503
MPN:
20001BBG1M1021
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout

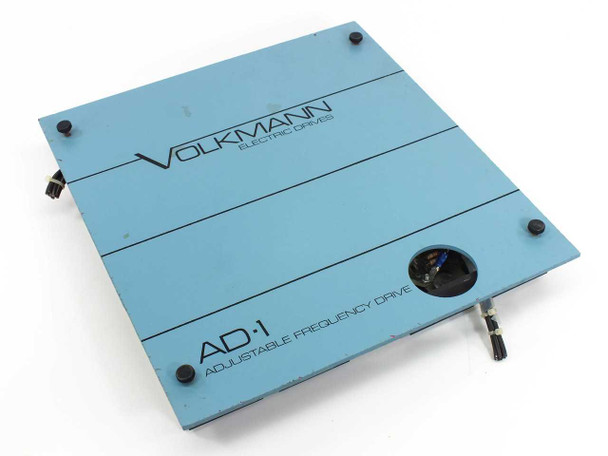

  • Volkmann AD-1 Adjustable Frequency Drive Board 20001BBG1M1021 – top cover panel with logo and model label, light blue enclosure

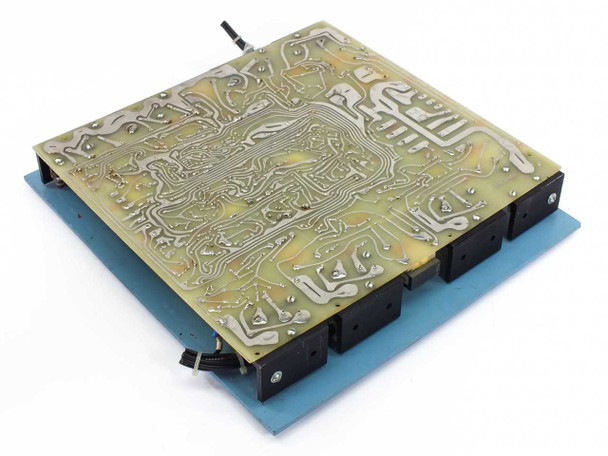

  • Volkmann AD-1 Drive Board – rear/underside view showing large PCB with power transistor heat sink assemblies mounted to blue baseplate
  • Volkmann AD-1 Drive Board – PCB close-up showing part number 20001BBG1M1021, serial number label, terminal block TB2, and LINE-2 connection point
  • Volkmann AD-1 Drive Board – full top PCB view with transformers, power transistors, capacitors, and wiring harnesses visible
  • Volkmann AD-1 Drive Board – close-up of PCB showing ACCEL/TIMER and CURRENT LIMIT trim pots, wiring bundles, and component detail
  • Volkmann Electronic Drives AD-1Adjustable Frequency Drive Board 20001BBG1M1021
  • Volkmann Electronic Drives AD-1Adjustable Frequency Drive Board 20001BBG1M1021
  • Volkmann Electronic Drives AD-1Adjustable Frequency Drive Board 20001BBG1M1021
$325.00
Was: $800.00
Current Stock: 1

Sold Out

Description

Volkmann AD-1 Adjustable Frequency Drive Board 20001BBG1M1021 0-600Hz AC

PCB control board for Volkmann adjustable frequency AC drives. This board regulates motor speed and frequency output in industrial drive systems rated 30/40 KVA.

Specifications & What's Included

  • Brand: Volkmann Electric Drives
  • Model: AD-1
  • MPN: 20001BBG1M1021
  • Output Frequency Range: 0–600 Hz / 0–667 Hz
  • Power Rating: 30 / 40 KVA
  • Compatible with Volkmann 70545AA and 70490AA drive systems
  • Board only; pulled from operational drive system

Applications

Used in industrial motor control and variable frequency drive installations requiring adjustable AC output.

Condition: Used
This Volkmann AD-1 Adjustable Frequency Drive Board (20001BBG1M1021) was pulled from a Volkmann 70545AA/70490AA 30/40 KVA drive system and has been visually inspected. The board shows typical used wear; no obvious physical damage is visible in our photos. It has not been bench-tested at our facility. Please view our photo set and reach out with any questions.
