Vitronics Unitherm 820A SMR-820A SMT Convection Reflow Oven 8-Zone 380V 3Ph

(No reviews yet) Write a Review
SKU:
12013
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Vitronics Unitherm 820A SMT reflow oven — full left-side view showing complete machine length in clean facility
  • Vitronics Corp. rating plate: Model SMR-820A, Date 12/12/96, 380V/3PH/60Hz, 64A, Newmarket NH USA
  • Vitronics Unitherm 820A reflow oven — right-side and exit-end view with UNITHERM 820A nameplate visible
  • Vitronics Unitherm 820A — rear operator side view showing attached computer workstation with monitor and keyboard on articulating arm

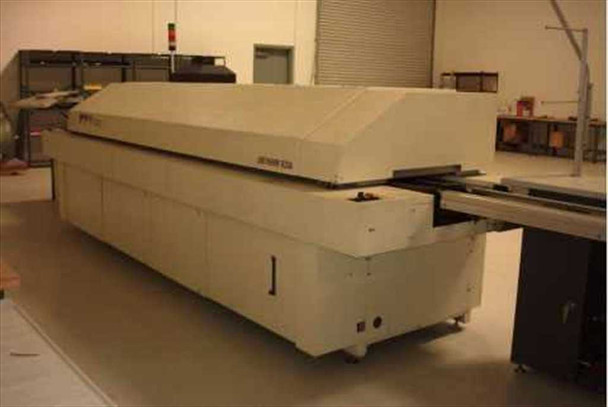

  • Vitronics Unitherm 820A SMT reflow oven — three-quarter front entry view in production facility showing entry conveyor and control panel
  • Vitronics Unitherm 820A — three-quarter exit-end view in warehouse, machine on wood pallets, UNITHERM 820A nameplate visible
  • Vitronics Unitherm 820A SMT reflow oven — straight-on front/entry-end view in warehouse showing full face of machine on pallets
$10,000.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Vitronics Unitherm 820A SMR-820A SMT Convection Reflow Oven 8-Zone 380V 3Ph

The Vitronics Unitherm 820A is a full-production convection reflow oven designed for surface mount technology (SMT) PCB assembly. It features 8 forced-convection heating zones and 2 cooling zones, delivering a controlled thermal profile across the full length of the board pass-through. The machine uses an edge rail conveyor with right-to-left board flow and accepts boards up to the rail width of the 96×24 tunnel. This unit was manufactured by Vitronics Corp. in Newmarket, New Hampshire.

Specifications & What's Included

  • Manufacturer: Vitronics Corp. (Newmarket, NH, USA)
  • Model: Unitherm 820A
  • Full Model / MPN: SMR-820A
  • Year of Manufacture: 1996
  • Oven Type: Forced Convection Reflow Oven (SMT)
  • Heating Zones: 8
  • Cooling Zones: 2
  • Total Zones: 10
  • Tunnel Dimensions: Approximately 96" × 24"
  • Overall Machine Length: Approximately 14.5 feet
  • Conveyor Type: Edge Rail Conveyor
  • Board Flow Direction: Right to Left
  • Input Voltage: 380V
  • Phase: 3-Phase
  • Frequency: 60 Hz
  • Amperage: 64A
  • Computer/Controller: Articulating workstation arm with monitor and keyboard visible in photos — contact us to confirm what is included with the sale
  • Signal tower (tri-color stack light) visible on machine top

Applications

SMT convection reflow ovens are the standard production tool for soldering surface-mount components to printed circuit boards. In a typical SMT line, populated boards enter the oven on a conveyor and pass through a precise thermal profile: a preheat ramp, a soak phase, a reflow peak above solder liquidus temperature, and a controlled cool-down. The 10-zone configuration of the Unitherm 820A gives process engineers fine-grained control over each phase of the profile, supporting both leaded and lead-free solder pastes when programmed appropriately. The 820A is a mid-to-high volume production oven suited for contract electronics manufacturers, OEM PCB assembly lines, and electronics R&D or prototyping operations that require a full-size production-class machine. Vitronics (later Vitronics Soltec, following a merger with Soltec International) was a well-regarded name in SMT reflow and wave soldering equipment; the Unitherm series was their mainstream convection reflow line through the 1990s. This machine dates from the mid-1990s era when forced-convection reflow was becoming the dominant SMT soldering method, displacing IR (infrared) tunnel ovens.

Condition: Used
This Vitronics Unitherm 820A SMT Convection Reflow Oven was recently deinstalled from an active production shop where it was in regular use and is fully functional. It is being sold as-is without warranty, which is standard for large industrial equipment of this type. The machine shows normal cosmetic wear consistent with production use — the exterior panels are intact and the machine appears complete with its edge rail conveyor. An articulating computer workstation arm with monitor and keyboard is visible in some photos; please contact us to confirm exactly what is included with the sale. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Vitronics
Model:
Unitherm 820A
MPN:
SMR-820A
SKU:
12013
Type:
SMT Convection Reflow Oven
Number of Heating Zones:
8
Number of Cooling Zones:
2
Total Zones:
10 (8 heating, 2 cooling)
Voltage:
380V
Phase:
3-Phase
Frequency:
60Hz
Amperage:
64A
Power Requirements:
380V / 3PH / 60Hz / 64A
Conveyor Type:
Edge Rail Conveyor
Board Flow Direction:
Right to Left
Machine Length:
Approximately 14.5 feet
Year of Manufacture:
1996
Country/Region of Manufacture:
United States
Manufacturer Location:
Newmarket, NH, USA
Seller Notes:
Machine only — computer workstation/monitor shown in photos may not be included; contact us to confirm
Application:
PCB / SMT Surface Mount Technology Soldering / Reflow
Condition Notes:
This Vitronics Unitherm 820A SMT reflow oven was recently deinstalled from an active production shop and is fully functional. Sold as-is without warranty. Shows normal production wear. Contact us to confirm inclusions.
