VIGRA

VIGRA MMI-210 Dual-Channel Digital Audio Signal Processor VMEbus Module Rev C

(No reviews yet) Write a Review
SKU:
33838
MPN:
MMI-210
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • VIGRA MMI-210 VMEbus dual-channel audio signal processor PCB — angled top view showing full board with ICs and VME connector

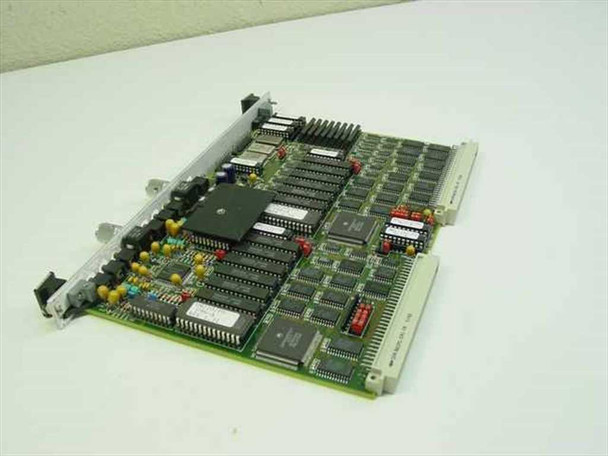

  • VIGRA MMI-210 VMEbus audio processor board — second angled view of PCB showing component side and edge connector
  • VIGRA MMI-210 front panel — silver VME module faceplate with VIGRA logo, green and red LEDs, two volume knobs, and BNC connectors for channels A and B

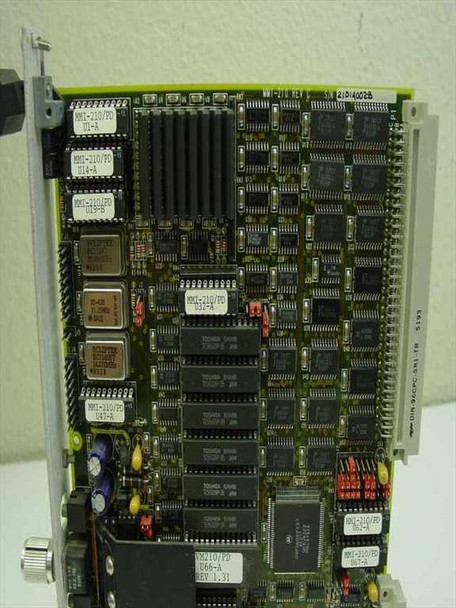

  • VIGRA MMI-210 PCB close-up — board label 'MMI-210 REV C', sub-assembly labels, Toshiba SRAM chips, oscillator, and REV 1.31 marking
  • VIGRA MMI-210 PCB reverse close-up — additional sub-assembly labels including U66-A, U70-A, U96-A REV 1.31, Toshiba SRAM ICs, and VME edge connector detail
$130.00
Was: $250.00
Current Stock: 1

Sold Out

Description

VIGRA MMI-210 Dual-Channel Digital Audio Signal Processor VMEbus Module Rev C

Real-time digital audio encoding and compression module for VMEbus systems. Provides dual-channel signal processing with front-panel audio I/O connectors and independent volume control per channel.

Specifications & What's Included

  • Model: MMI-210 (Hardware Rev C, Firmware Rev 1.31)
  • Form Factor: 6U VMEbus card module
  • Channels: 2 (Channel A and Channel B)
  • Connectors: BNC audio inputs/outputs (A IN, A OUT, B IN, B OUT, A&B OUT)
  • Controls: Independent volume knobs, LED status indicators
  • Memory: Toshiba SRAM ICs
  • Board only; pulled from working environment

Applications

This processor type was used in telecom and broadcast infrastructure for real-time audio signal conditioning and compression. Typical applications included audio routing and encoding in switching systems, transmission equipment, and industrial audio processing platforms. Compatible with standard VMEbus chassis using 6U form factor cards. Module integrates into larger systems requiring dual-channel audio processing at the hardware level.

Condition: Used
This VIGRA MMI-210 Dual-Channel VMEbus Audio/Signal Processor module has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The PCB is clean with no obvious damage, cracked traces, or missing components visible. The front panel faceplate is intact with both volume knobs and BNC connectors present. Normal light wear consistent with installed use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
VIGRA
Model:
MMI-210
MPN:
MMI-210
Type:
Dual-Channel Digital Audio/Signal Processor VMEbus Module
SKU:
33838
Hardware Revision:
Rev C
Firmware/PCB Revision:
REV 1.31
Form Factor:
VMEbus Card/Module
Number of Channels:
2 (Channel A and Channel B)
Bus Interface:
VMEbus (VME)
Function:
Real-time digital audio encoding and compression
Front Panel Connectors:
BNC: A OUT, A LINE IN, B OUT, B LINE IN, A&B OUT
Front Panel Controls:
Channel A volume knob, Channel B volume knob
Front Panel Indicators:
Green and red LED status indicators
PCB Sub-Assemblies:
MMI-210/PD U1-A, U14-A, U47-A, U32-A, U66-A, U70-A, U96-A, U63-A
Memory ICs:
Toshiba SRAM ICs (multiple, markings partially legible)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only. Pulled from a working environment.
Compatible With:
VMEbus chassis and systems (6U VME form factor)
Condition Notes:
VIGRA MMI-210 VMEbus audio/signal processor module. Inspected, in good used condition. Pulled from a working environment where it was in use and functional. PCB clean, faceplate intact, all connectors present.
View AllClose

Related Products

Related Products

ISIS Group RTS-201 2x1 Protection Switcher – front panel angled left view showing Change Over button and status indicators ISIS Group RTS-201 – close-up of left front panel showing ISIS Group logo, Power B input, and Status LED
Add to Cart
Quick view

ISIS Group RTS-201 2x1 Protection Switcher Dual Channel Video Audio Rackmount

ISIS Group

$75.00
Was: $150.00
ISIS Group RTS-201 2x1 Protection Switcher Dual Channel Video Audio RackmountThe ISIS Group RTS-201 is a professional dual-channel 2x1 protection switcher designed for broadcast and production...
39628
SKU:
39628
Availability:
Usually ships within 1-2 business days.
Weight:
10.00 LBS
Brand:
ISIS Group
Model:
RTS-201
MPN:
RTS-201
Type:
2x1 Protection Switcher
SKU:
39628
Form Factor:
1U Rack Mount
Number of Channels:
2 (Dual Channel)
Switching Configuration:
2x1 (2 inputs, 1 output)
Video Output:
BNC (Video Out)
Video Input:
BNC — Channel A and Channel B inputs
Video Monitor Output:
BNC — Channel A and Channel B monitor
Audio Input:
Balanced — up to 4 audio inputs per channel
Audio Output:
Balanced — Audio Out and Audio Monitor outputs
Audio Monitor:
Buffered Audio Monitor outputs
Control Interface:
GPI (General Purpose Interface) — DB9
GPI Output:
DB9 GPI Out connector
External Control:
DB9 EXT CONTROL port
Operation Mode:
Auto / Manual (front panel selectable)
Power Requirements:
200-240V~, 0.20A, 50/60Hz
Number of Power Supplies:
2 (Dual redundant — Power A and Power B)
Power Connector:
IEC C13 (x2)
Front Panel Indicators:
In-Use A/B, Presence A/B, Operation Auto/Manual
Front Panel Controls:
Change Over pushbutton (red), Power A/B status LEDs
Certifications:
UL Listed 50GK — Professional Video/Audio Equipment
Application:
Professional broadcast video/audio signal protection
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only — no cables included. Dual IEC power inlets present.
Country/Region of Manufacture:
United States
Condition Notes:
ISIS Group RTS-201 2x1 Protection Switcher. Inspected and in good used condition. Pulled from a working broadcast environment. Chassis and connectors appear intact with minor surface wear. Please view photos and contact us with questions.
3dbm 70MDF-DAT-GLW dual-channel satcom modulator front panel view showing three plug-in modules in 19-inch rack chassis 3dbm 70MDF-DAT-GLW rear panel view showing BNC connectors, IEC AC input, DB9 serial ports, and AC power switch on two modulator plug-ins
Add to Cart
Quick view

3dbm 70MDF-DAT-GLW Dual-Channel 70MHz FM Satcom Signal Modulator 19" Rack

3dbm

$375.00
Was: $750.00
3dbm 70MDF-DAT-GLW Dual-Channel 70MHz FM Satcom Signal Modulator 19" RackA dual-channel 70MHz FM satcom signal modulator in 19" rack-mount form factor. This unit modulates baseband signals onto a...
39334
SKU:
39334
Availability:
Usually ships within 1-2 business days.
Weight:
35.00 LBS
Brand:
3dbm Inc.
Model:
70MDF-DAT-GLW
MPN:
70MDF-DAT-GLW
Secondary Model:
70MDF-GLW / 50AT-1-2R
Type:
Dual-Channel 70MHz FM Satcom Signal Modulator
SKU:
39334
Condition:
Used – Pulled from Working Environment
Form Factor:
19" Rack Mount Chassis
Number of Channels:
2
Modulation Type:
FM (Frequency Modulation)
Center Frequency:
70 MHz
Plug-In Module 1:
3dbm 70MDF-GLW FM Modulator
Plug-In Module 2:
3dbm 50AT-1-2R Dual RF Attenuator
Plug-In Module 3:
3dbm 70MDF-GLW FM Modulator
Internal Sub-Assembly 1:
3DBM INC. 70MDF-GLW-MOD 70MHz FM Modulator
Internal Sub-Assembly 2:
3DBM INC. 70MDF-GLW-EQ Equalizer
RF Connector Type:
BNC (Tone In, Main RF Out, Range Calib RF Out)
Serial Interface:
DB9 (J4, J5 — RS-232 control)
AC Power Connector:
IEC C14 (J6 – AC Input) with fuse pull
Front Panel Controls:
Operate/Calibrate, Equalize/Linear switches; LED indicators
RF Attenuation Control:
Dual rotary attenuators: FM Modulator 1 & 2 RF Attenuation
Rear Connections per Module:
Tone Input (J1), Main RF Output (J2), Range Calib RF Out (J3)
Attenuator Module Ports:
RF 1 In (J1), RF 1 Out (J2), RF 2 In (J3), RF 2 Out (J4)
Application:
Satellite Ground Station / Satcom Uplink Signal Modulation
Seller Notes:
Includes 19" chassis with two 70MDF-GLW modulator plug-ins and one 50AT-1-2R dual attenuator plug-in.
Country/Region of Manufacture:
United States
Condition Notes:
3dbm 70MDF-DAT-GLW dual-channel 70MHz FM satcom modulator. Inspected, in good condition. Pulled from a working environment where it was in active use and functional. All three plug-ins present. Please view photos and contact us with questions.
Sound Control Technologies ASP-8x8 Audio Matrix DSP Signal Processor – left-side three-quarter view showing teal front panel and DB9 front comm port Sound Control Technologies ASP-8x8 – rear panel showing 5-pin DIN power input, DSP Link In and Out ports, and green screw-terminal analog audio connectors
Add to Cart
Quick view

Sound Control Technologies ASP-8x8 Audio Matrix DSP Audio Signal Processor 8x8

Sound Control Technologies

$100.00
Was: $200.00
Sound Control Technologies ASP-8x8 Audio Matrix DSP Audio Signal Processor 8x8 8x8 audio matrix DSP processor for routing and processing analog audio signals. Features balanced screw-terminal...
40189
SKU:
40189
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
Sound Control Technologies
Model:
ASP-8x8
MPN:
ASP-8x8
SKU:
40189
Type:
DSP Audio Matrix Signal Processor
Number of Inputs:
8
Number of Outputs:
8
Matrix Configuration:
8x8
Audio Interface Type:
Analog (balanced, screw-terminal)
Connector Type (Audio):
Green screw-terminal barrier strips
Front Comm Interface:
DB9 serial (RS-232)
DSP Link Ports:
DSP Link In / DSP Link Out (RJ-style)
Power Requirements:
+5VDC @ 1.5A, ±12VDC @ 0.2A (external supply)
Power Connector:
5-pin DIN (proprietary AC adapter required)
Front Panel Controls:
COMM, SELECT, MODE, UP, DOWN buttons; INPUT, OUTPUT, GAIN, DELAY, PRESET, CLIP, RECALL, SAVE, ID indicators
Form Factor:
Desktop / Tabletop
Condition:
As-Is / For Parts or Not Working
Seller Notes:
No AC adapter included. Cannot be powered or tested without supplied power source.
Country/Region of Manufacture:
United States
Condition Notes:
Sound Control Technologies ASP-8x8 Audio Matrix DSP Processor. Good cosmetic condition but cannot be tested — no AC adapter included. Sold as-is for parts or repair only, no functionality guaranteed. Please view photos and contact us with questions.

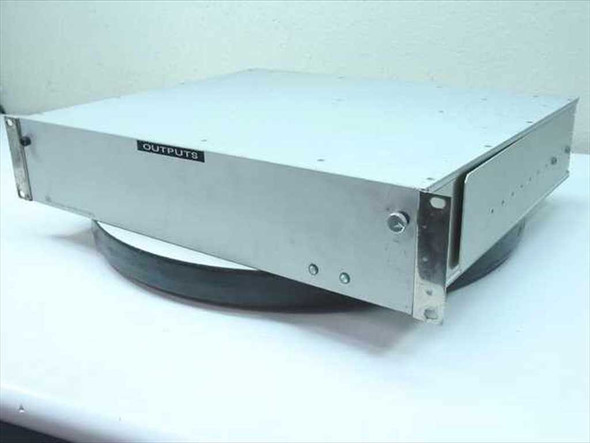

Graham-Patten Systems GPS 1401 Digital Audio Module – top and front panel view showing OUTPUTS label and rack ears Graham-Patten Systems GPS 1401 Digital Audio Module – rear panel showing 16 XLR output connectors and AC inlet
