ViewSonic Macintosh Adapter Mac 15-Pin to SVGA 15-Pin Video Adapter 1600x1200

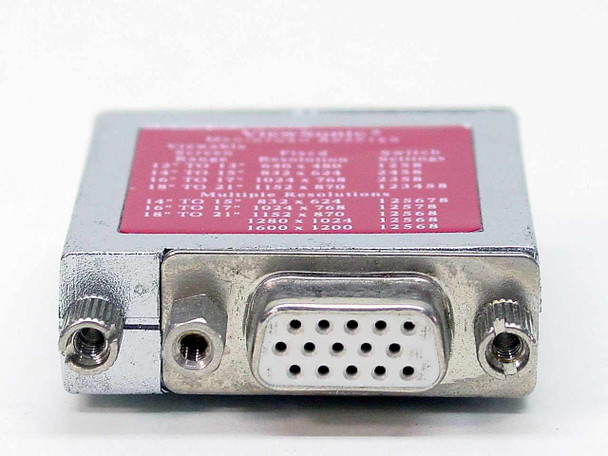

The ViewSonic Macintosh Adapter is a compact inline video adapter that connects an Apple Macintosh computer's DB-15 video output to a standard SVGA monitor with an HD-15 input. An 8-position DIP switch on the side of the unit lets you select the correct resolution and sync mode for your monitor, supporting both fixed-resolution and multiple-resolution configurations.
Specifications & What's Included
- Brand: ViewSonic
- Type: Mac 15-Pin (DB-15 male) to SVGA 15-Pin (HD-15 female) video adapter
- Switch: 8-position DIP switch (positions 1–8), labeled ON / ECE
- Housing: Metal (silver/gray), compact inline form factor
- Fixed Resolution Switch Settings:
- 12″–13″ screens: 640 × 480 — switch settings 1258
- 14″–15″ screens: 832 × 624 — switch settings 2458
- 16″–17″ screens: 1024 × 768 — switch settings 2358
- 18″–21″ screens: 1152 × 870 — switch settings 123458
- Multiple Resolution Switch Settings:
- 14″–15″: 832 × 624 — switch settings 125678
- 16″–17″: 1024 × 768 — switch settings 12578
- 18″–21″: 1152 × 870 — switch settings 12568
- 1280 × 1024 — switch settings 12568
- 1600 × 1200 — switch settings 12568
- Maximum resolution: 1600 × 1200
- Includes: Adapter only — no cables or documentation
Applications
Apple Macintosh computers from the late 1980s through the mid-1990s used a proprietary 15-pin DB-15 video connector — physically similar to a standard VGA/SVGA HD-15 plug but with a different pin layout and sync signaling. This made Macs incompatible with the growing market of standard SVGA PC monitors without an adapter. The ViewSonic Macintosh Adapter was designed to bridge that gap, allowing owners of Mac II, Quadra, Centris, LC, and early Power Mac systems to connect a standard SVGA multisync monitor in place of an Apple-branded display. The DIP switches communicate monitor identity and sync capability back to the Mac's video circuitry, enabling the system to select the correct resolution and refresh rate. These adapters remain useful today for anyone maintaining vintage Macintosh equipment or using period-correct CRT monitors with legacy Mac hardware.
