View Engineering Integrated Video Processor Board 2019160-501 Rev D3

(No reviews yet) Write a Review
SKU:
26252
MPN:
2019160-501 D3
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • View Engineering 2019160-501 Integrated Video Processor Board – top-side component view showing ICs, memory chips, and edge connector
  • View Engineering 2019160-501 Video Processor Board – reverse-angle view showing solder side, capacitors, and full board layout
  • View Engineering Integrated Video Processor Board silkscreen label reading 'VIEW ENG INTEGRATED VIDEO PROCESSOR', Copyright 1988, with visible IC markings

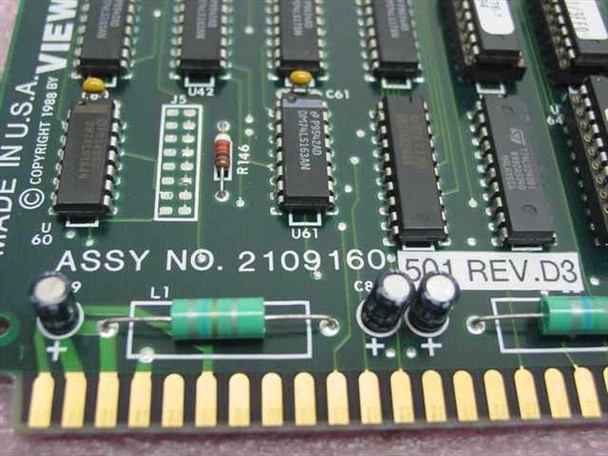

  • View Engineering board close-up of assembly number silkscreen reading 'ASSY NO. 2109160-501 REV. D3' and 'MADE IN U.S.A. Copyright 1988'
$100.00
Was: $200.00
Current Stock: 1

Sold Out

Description

View Engineering Integrated Video Processor Board 2019160-501 Rev D3

Integrated video processor board designed for machine vision and automated inspection systems. This PCB module handles video signal processing and image analysis functions in industrial inspection equipment.

Specifications & What's Included

  • Model: 2019160-501 (Secondary: 2109160-501)
  • Revision: D3
  • Form Factor: PCB / Card Module
  • Slot Position: Slot 4
  • Manufactured: USA, 1988
  • Board only

Applications

Video processor boards of this type were used in industrial machine vision systems for automated inspection, quality control, and defect detection on production lines. These modules typically integrated into larger vision inspection platforms and controlled image capture, processing, and analysis functions. Applications included semiconductor inspection, surface defect detection, and component verification in manufacturing environments.

Condition: Open Box
This View Engineering Integrated Video Processor Board (Assy No. 2019160-501, Rev D3) is in open-box condition. The board appears clean and free of obvious damage, with no broken components or heavy contamination visible. It carries the Slot 4 designation. The board was made in the USA in 1988 and shows minimal signs of age consistent with open-box storage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
View Engineering
Model:
2019160-501
MPN:
2019160-501
Secondary Model:
2109160-501
Type:
Integrated Video Processor Board
Revision:
Rev D3
Assembly Number:
2019160-501
Form Factor:
PCB / Card Module
Country/Region of Manufacture:
United States
Year of Manufacture:
1988
Application:
Machine Vision / Automated Inspection
Slot:
Slot 4
SKU:
26252
Seller Notes:
Board only. Open-box condition. Slot 4 designation visible on board.
Condition:
Open Box
Condition Notes:
View Engineering Integrated Video Processor Board 2019160-501 Rev D3. Open-box condition, clean, no visible damage. Slot 4 designation. Made in USA, 1988. Please view photos and contact us with questions.
