Description

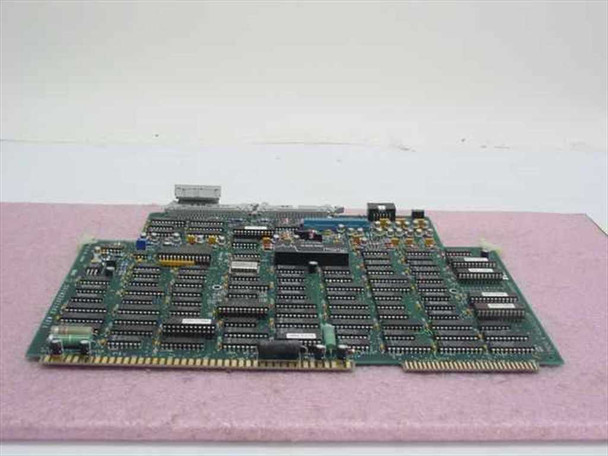

View Engineering 1009235-503 Rev A Slot 3 Timing Acquisition Board PCB
Timing and acquisition board designed for View Engineering machine vision inspection systems. This Slot 3 module handles synchronization and data capture functions within the system chassis.
Specifications & What's Included
- Brand: View Engineering
- Model: 1009235-503 Rev A
- Type: Timing & Acquisition Board / PCB
- Form Factor: Card/Module (PCB)
- Slot Position: Slot 3
- Board only
Applications
Timing and acquisition boards are core components in machine vision inspection systems, managing sensor synchronization and image data capture. This board integrates into View Engineering inspection platforms used in industrial quality control and automated visual inspection applications. Slot-based architecture allows modular configuration within the system chassis.
Condition: Used
This View Engineering 1009235-503 Rev A Slot 3 Timing & Acquisition Board has been inspected and is in good condition. The board shows normal handling wear consistent with prior use in a machine vision system but is free of visible damage. Component markings are clear and the edge connector fingers appear intact. Please view our photo set and contact us if you have any questions.
This View Engineering 1009235-503 Rev A Slot 3 Timing & Acquisition Board has been inspected and is in good condition. The board shows normal handling wear consistent with prior use in a machine vision system but is free of visible damage. Component markings are clear and the edge connector fingers appear intact. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
View Engineering |
Model: |
1009235-503 |
MPN: |
1009235-503 |
Secondary Model: |

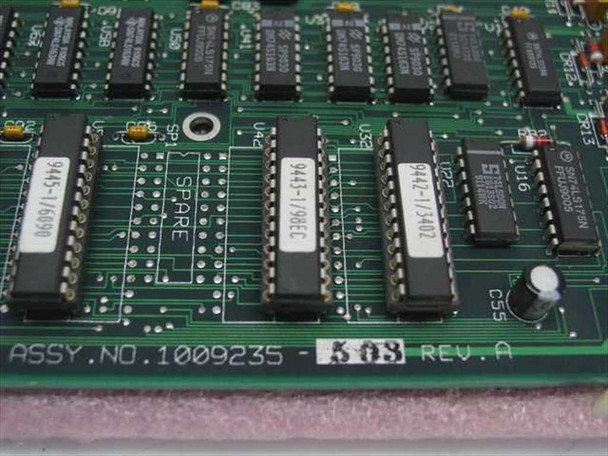

ASSY.NO.1009235-503 REV.A |
Type: |
Timing & Acquisition Board / PCB |
Revision: |
Rev A / Revision A |
Slot: |
Slot 3 |
Form Factor: |
Card/Module (PCB) |
Application: |
Machine Vision Inspection System |
Compatible With: |
View Engineering machine vision inspection systems |
SKU: |
26249 |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Board only. Inspected and in good condition. |
Condition Notes: |
View Engineering 1009235-503 Rev A Timing & Acquisition Board. Inspected and in good condition. Normal handling wear; no visible damage. Edge connector fingers intact. Please view photos and contact us with questions. |
