Description
Varian VUJ-8527-01 C-Band Microwave Waveguide Load Metering Assembly 5.925-6.425 GHz

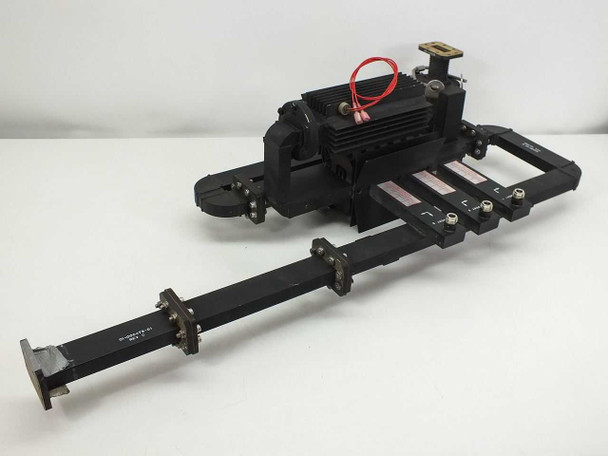

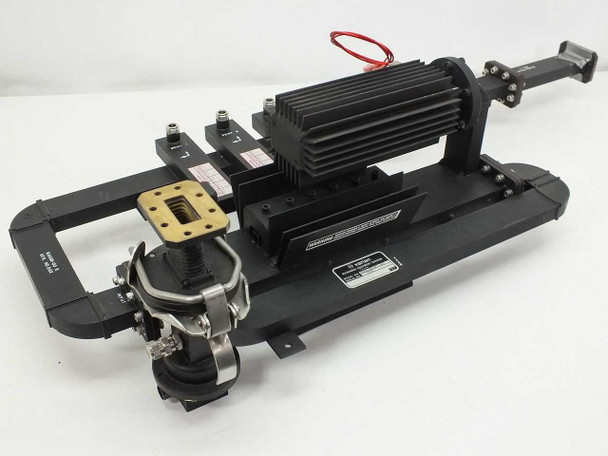

C-Band waveguide load metering assembly for microwave signal measurement and termination. Features three output ports with fixed attenuation levels and finned aluminum heatsink load. Rigid rectangular waveguide construction with CPR-137G brass flange.
Specifications & What's Included
- Frequency Range: 5.925–6.425 GHz (C-Band)

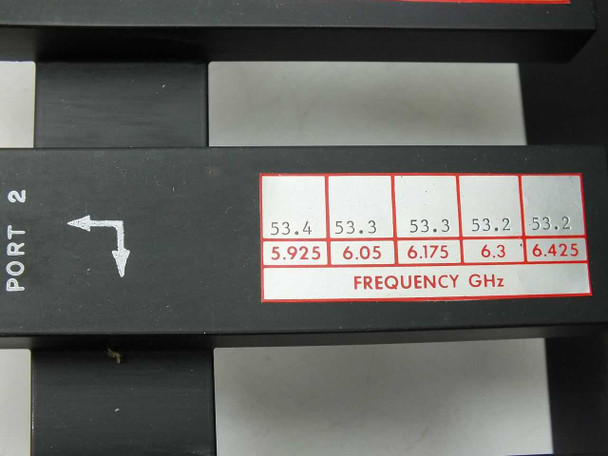

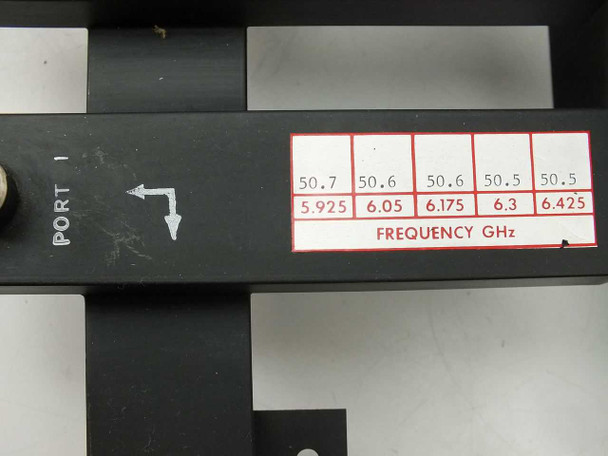

- Three ports with insertion loss: Port 1 (50.5–50.7 dB), Port 2 (53.2–53.4 dB), Port 3 (60.6–60.8 dB)
- Waveguide Type: Rigid rectangular with CPR-137G brass flange
- Load Assembly: Finned black anodized aluminum heatsink
- Includes clamp and calibration labels
- Manufactured by Varian Microwave Equipment Division, USA
Applications
Used in satellite communications, terrestrial microwave systems, and test equipment for C-Band signal measurement and attenuation. Common in telecom infrastructure and RF test labs requiring calibrated load terminations. Compatible with standard rigid waveguide systems operating in the 5.9–6.4 GHz band.
Condition: Used

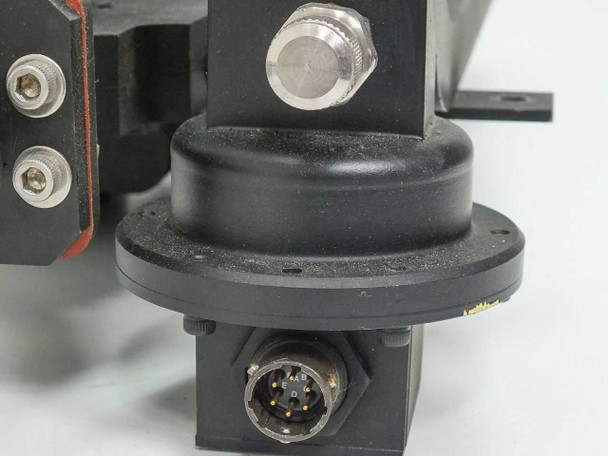

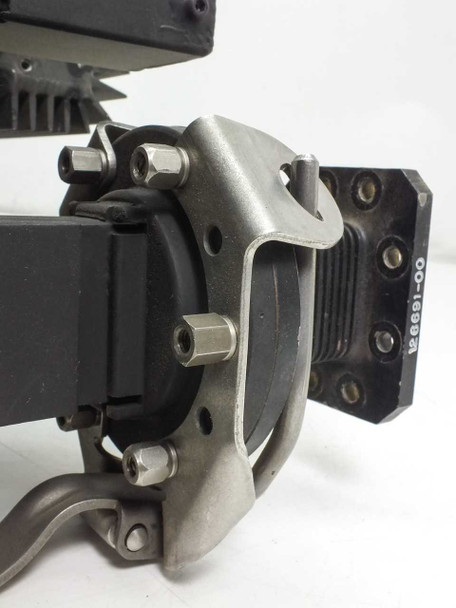

This Varian VUJ-8527-01 C-Band Microwave Waveguide Load Metering Assembly has been inspected and appears to be in good used condition. It has not been tested or powered at our facility. The assembly is physically complete — the rigid waveguide sections, finned heatsink load, brass waveguide flange, circular waveguide port with stainless clamp, and calibration labels are all present and intact. The black anodized aluminum finish shows minor surface scuffs consistent with prior use and handling, but there is no obvious damage to the waveguide sections or flanges. The per-port calibration stickers (Port 1, Port 2, Port 3) are legible and in place. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Varian VUJ-8527-01 C-Band Microwave Waveguide Load Metering Assembly has been inspected and appears to be in good used condition. It has not been tested or powered at our facility. The assembly is physically complete — the rigid waveguide sections, finned heatsink load, brass waveguide flange, circular waveguide port with stainless clamp, and calibration labels are all present and intact. The black anodized aluminum finish shows minor surface scuffs consistent with prior use and handling, but there is no obvious damage to the waveguide sections or flanges. The per-port calibration stickers (Port 1, Port 2, Port 3) are legible and in place. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Varian |
Model: |
VUJ-8527-01 |
MPN: |
VUJ-8527-01 |
Type: |
C-Band Microwave Waveguide Load Metering Assembly |
SKU: |
45561 |
Frequency Range: |
5.925 – 6.425 GHz (C-Band) |
Number of Ports: |
3 |
Frequency Band: |
C-Band |
Waveguide Type: |
Rigid |
Port 1 Insertion Loss (dB): |
50.5–50.7 dB across 5.925–6.425 GHz |
Port 2 Insertion Loss (dB): |
53.2–53.4 dB across 5.925–6.425 GHz |
Port 3 Insertion Loss (dB): |
60.6–60.8 dB across 5.925–6.425 GHz |
Waveguide Flange: |
CPR-137G / rectangular waveguide flange (brass) |
Heatsink / Load Assembly: |
Finned black anodized aluminum heatsink load |
Manufacturer Division: |
Varian Microwave Equipment Division |
FSCM: |
59782 |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected, not bench-tested |
Seller Notes: |
Assembly only; inspected and in good condition, not tested at facility |
Condition Notes: |
Varian VUJ-8527-01 C-Band Waveguide Load Metering Assembly. Inspected, good used condition. Not tested at our facility. Assembly complete with heatsink load, brass flange, clamp, and calibration labels. Minor surface scuffs. |
