Varian

Varian F137CA2 WR-137 C-Band Waveguide with Fins Satcom RF Microwave Load

(No reviews yet) Write a Review
SKU:
50357
MPN:
F137CA2
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Varian F137CA2 WR-137 C-Band waveguide with fins — three-quarter front view showing black finned body and white flange ends with Varian logo

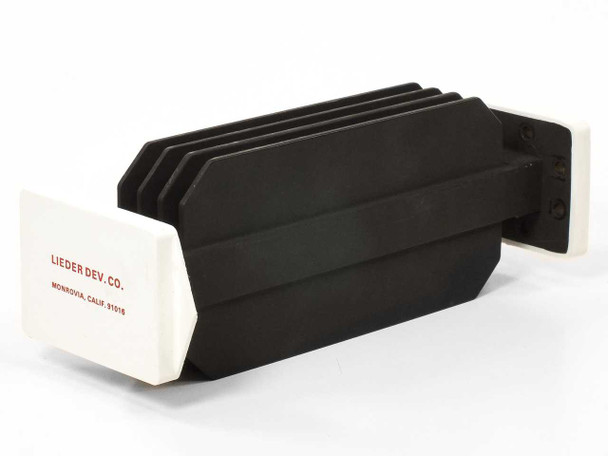

  • Varian F137CA2 WR-137 waveguide — rear three-quarter view showing finned body and white rectangular flanges; Lieder Dev. Co. Monrovia CA label visible on flange
  • Varian F137CA2 WR-137 waveguide — straight-on side view showing model label reading F137CA2 and Varian Mech. Pscm 59782 Made in USA

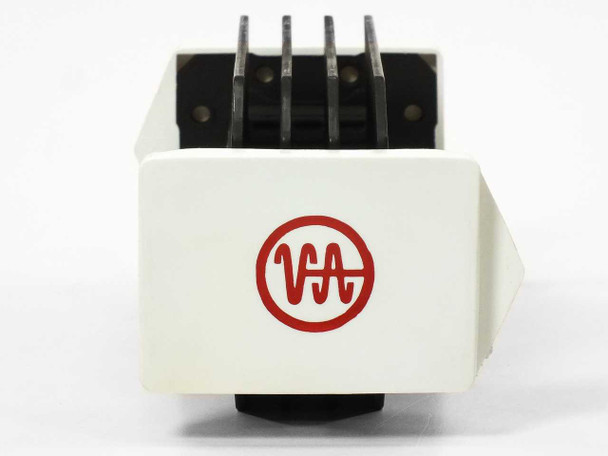

  • Varian F137CA2 waveguide — end-on view of white flange face showing Varian logo and fins protruding from black body
  • Varian F137CA2 WR-137 waveguide — brass flange face showing rectangular waveguide aperture and six bolt holes
  • Varian F137CA2 waveguide — close-up of second brass flange face showing rectangular waveguide aperture and bolt holes

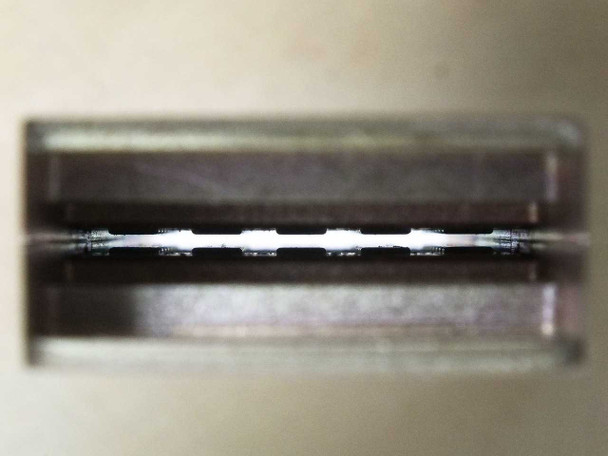

  • Varian F137CA2 WR-137 waveguide — macro close-up inside the rectangular waveguide aperture showing interior bore and internal pin/probe detail
$110.00
Was: $225.00
Current Stock: 1

Sold Out

Description

Varian F137CA2 WR-137 C-Band Waveguide with Fins Satcom RF Microwave Load

WR-137 rectangular waveguide component designed for RF signal transmission and termination in C-Band satellite communications and microwave systems. Features longitudinal cooling fins on the black anodized aluminum body for enhanced heat dissipation.

Specifications & What's Included

  • Brand: Varian
  • Model: F137CA2
  • Waveguide Size: WR-137
  • Frequency Band: C-Band (3.95–5.85 GHz)
  • Flange Type: Rectangular waveguide flange (brass)
  • Body: Black anodized aluminum with longitudinal fins
  • Origin: United States
  • Unit only; no accessories included

Applications

WR-137 waveguides are used in satellite ground station equipment, microwave test systems, and RF transmission networks operating in the C-Band frequency range. These components serve as matched loads, dummy loads, or transmission elements in satellite uplink/downlink systems and microwave communication infrastructure. The finned design enables operation under sustained RF power by dissipating generated heat.

Condition: Used
This Varian F137CA2 WR-137 C-Band waveguide with fins has been inspected and is in good used condition. The black finned body is intact with no visible cracks or damage. Both brass waveguide flanges are present and show minor surface oxidation typical of age, but the mating faces and rectangular apertures appear clean and undamaged. The white plastic flange end caps are intact on both ends. The model label on the body reads F137CA2, and a secondary label reads Varian Mech. Pscm 59782, Made in USA. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian
Model:
F137CA2
MPN:
F137CA2
Type:
C-Band WR-137 Waveguide with Fins
SKU:
50357
Waveguide Size:
WR-137
Frequency Band:
C-Band (3.95–5.85 GHz)
Application:
RF / Satcom / Microwave
Flange Type:
Rectangular waveguide flange (brass)
Body Material:
Black anodized aluminum body with fins
Fins:
Yes — longitudinal fins on body
Condition:
Used – Inspected, Good Condition
Seller Notes:
Unit only; no additional accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
Varian F137CA2 WR-137 C-Band waveguide with fins. Inspected, good used condition. Black finned body intact, both brass flanges present with minor oxidation typical of age, apertures clean. Model label legible.
