Varian VJW1454R1 01014548-00 Remote Control Channel Select Assembly 19" 2U

Varian VJW1454R1 01014548-00 Remote Control Channel Select Assembly 19" 2U

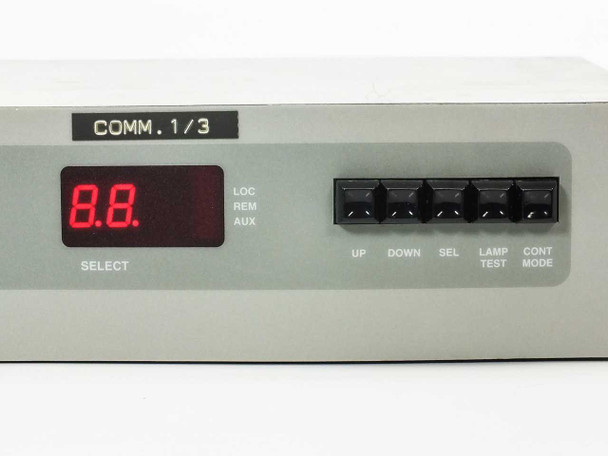

The Varian VJW1454R1 is a 19-inch 2U rackmount Remote Control Channel Select Assembly manufactured by Varian Microwave Equipment Products of Santa Clara, California. It provides centralized remote channel and communications path selection for satellite ground station equipment, specifically for controlling High Power Amplifier (HPA) system switching and communications routing from a rack-mounted control point. The front panel features two independent seven-segment LED numeric displays — labeled CHANNEL and SELECT — along with a bank of five pushbuttons (UP, DOWN, SEL, LAMP TEST, CONT MODE) and status LEDs for LOC, REM, AUX, PWR FAIL, and CABLE states.

Specifications & What's Included

• Manufacturer: Varian Microwave Equipment Products, Santa Clara, California
• Model: VJW1454R1
• Part Number: 01014548-00
• Description (label): REMOTE CTRL CHNL SEL ASSY
• Form Factor: 19" rackmount, 2U
• Power Input: 115 VAC, 100 VA (IEC inlet, J1)
• Front Panel Displays: Dual 7-segment red LED — CHANNEL display and SELECT display
• Front Panel Indicators: PWR FAIL, CABLE, LOC, REM, AUX status LEDs
• Front Panel Controls: UP, DOWN, SEL, LAMP TEST, CONT MODE pushbuttons

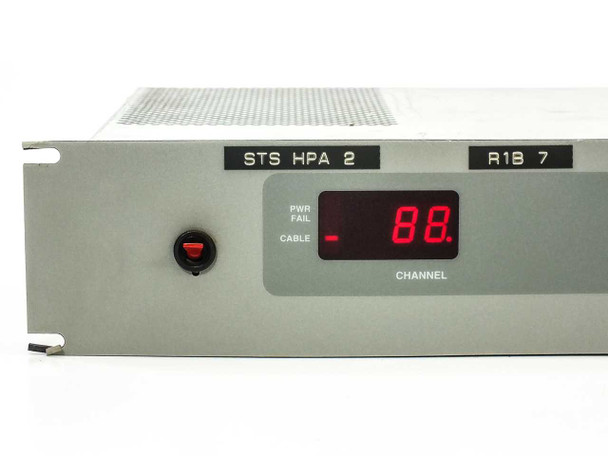

• Front Panel Labels: STS HPA (sections 2 and 9 visible), R1B 7, COMM.1/3

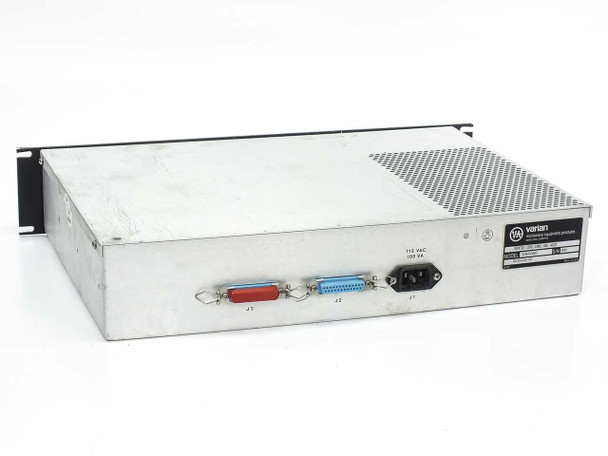

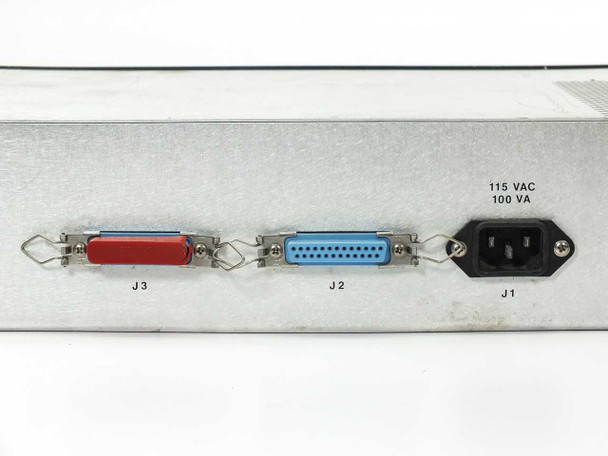

• Rear Connectors: J1 — IEC AC power inlet; J2 — DB25 (blue); J3 — DB25 (red)

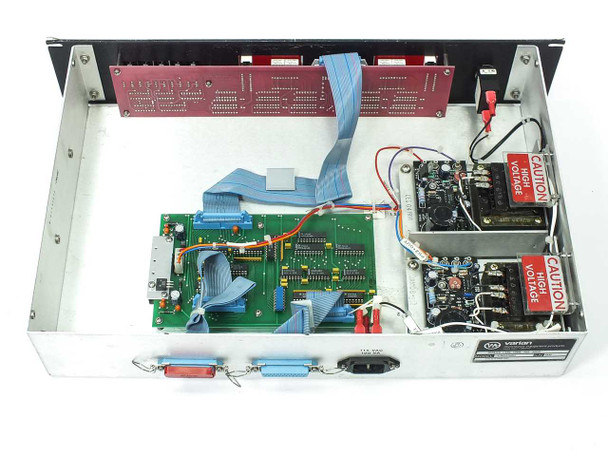

• Interior: Main logic PCB with ribbon cable interconnects; red backplane board; internal power section with high-voltage caution labeling
• Country of Manufacture: United States
• Included: Unit only — no cables or accessories

Applications
