Varian 01-00064 CMC 1527A HV Power Assembly Klystron 738-8415 Stancor Relay
High voltage power assembly designed for klystron power supply and modulator applications. Open frame panel-mount unit incorporating transformers and relays for transmitter systems.
Specifications & What's Included
- Model: 1527A | MPN: 01-00064 | Assembly Part: 300-96900010
- Primary Input: 115V AC | Secondary Output: 12V DC
- Stancor P-8657 Transformer (115V/12V) and Stancor C-2722 Transformer
- Two AMF Potter & Brumfield KUP14D15 12VDC Relays
- Dimensions: 20.5" x 6.5" x 6" | Open Frame / Panel Mount
- Manufactured in United States
Applications
This assembly was used in Varian klystron and transmitter systems, providing high voltage power distribution and modulation control. Klystron power supplies of this type were standard in RF amplification systems for radar, medical, and industrial applications. The assembly integrates transformer-based voltage conversion with relay switching for system control.
Condition: Used

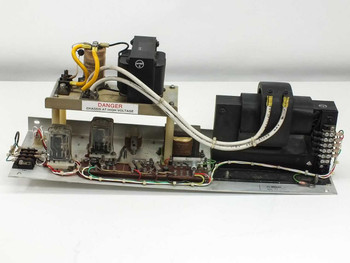

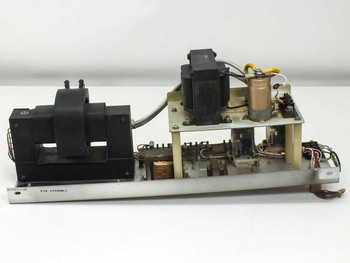

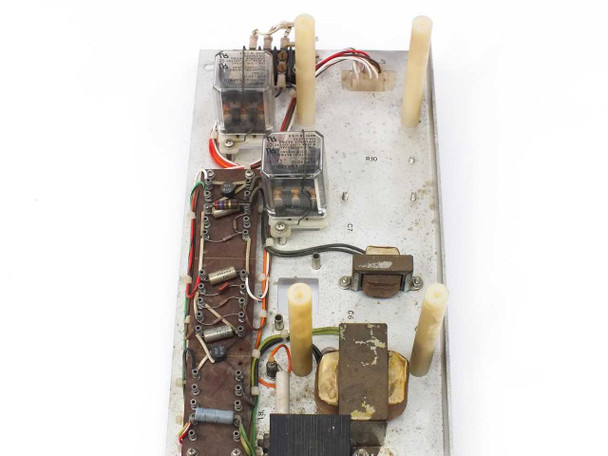

This Varian 01-00064 CMC 1527A High Voltage Power Assembly has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use. The aluminum chassis shows light surface oxidation and general handling wear consistent with its age. The PCB, transformers, and relay components are all present and intact with no obvious damage visible. The large potted high-voltage transformer and both AMF Potter & Brumfield 12VDC relays appear undamaged. Please view our photo set and contact us if you have any questions.
This Varian 01-00064 CMC 1527A High Voltage Power Assembly has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use. The aluminum chassis shows light surface oxidation and general handling wear consistent with its age. The PCB, transformers, and relay components are all present and intact with no obvious damage visible. The large potted high-voltage transformer and both AMF Potter & Brumfield 12VDC relays appear undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Varian |
Model: |
1527A |
MPN: |
01-00064 |
Secondary Model: |
738-8415 |
Type: |
High Voltage Power Assembly |
SKU: |
48881 |
Manufacturer Division: |
Varian M.E.D. |
Assembly Part Number: |
300-96900010 |
PCB / Chassis Part Number: |
01-000040 |
Application: |
Klystron Power Supply / Modulator |
Transformer 1 Brand/Model: |
Stancor P-8657 (PRI: 115V / SEC: 12V) |
Transformer 2 Brand/Model: |
Stancor C-2722 |
Relay: |
AMF Potter & Brumfield KUP14D15, 12VDC (Qty 2) |
Primary Voltage: |
115V AC |
Secondary Voltage: |
12V DC |
Form Factor: |
Open Frame / Panel Mount Assembly |
Dimensions: |
20.5" x 6.5" x 6" |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Multi-component HV assembly; includes transformers and relays as described |
Compatible With: |
Varian klystron / transmitter systems |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Varian 01-00064 CMC 1527A HV Power Assembly inspected and in good used condition. Pulled from a working environment where it was actively in use. All components present and intact. Please contact us with any questions. |
