Vacuum Solenoid Coil 264 Gauss/Amp BNC Connector 38" Long Magnetic Field Coil

(No reviews yet) Write a Review
SKU:
41532
MPN:
Vacuum
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
16.00 LBS
Shipping:
Calculated at Checkout

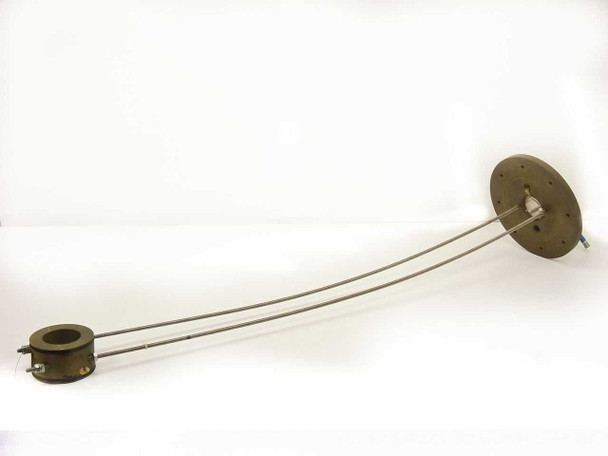

  • Vacuum solenoid coil assembly full length view showing brass toroidal coil housing at left, stainless steel support rods, and circular flanged end plate at right — 38 inches overall length
  • Close-up of brass toroidal solenoid coil housing showing cylindrical open-bore construction, stainless threaded rod mounting hardware, and small PCB sensor component near base

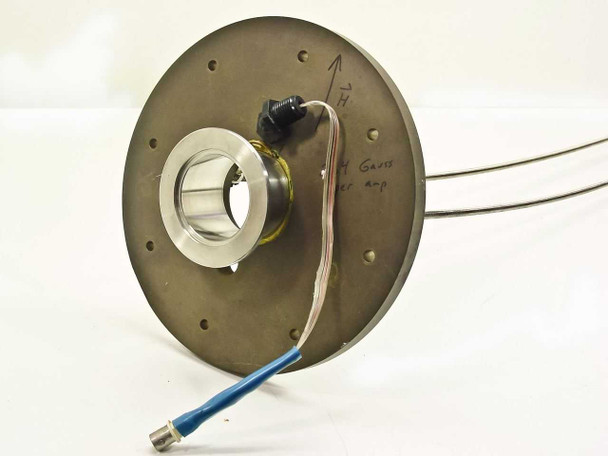

  • Side view of circular flanged end plate with central bore, handwritten '264 Gauss per Amp' label, blue BNC coaxial cable lead, and stainless rod attachment hardware
  • Close-up of blue coaxial cable terminating in female BNC connector — output connector for vacuum solenoid coil assembly
$175.00
Was: $350.00
Current Stock: 1

Sold Out

Description

Vacuum Solenoid Coil 264 Gauss/Amp BNC Connector 38" Long Magnetic Field Coil

Vacuum solenoid coil designed to generate axial magnetic fields within vacuum chamber environments. Rated at 264 Gauss per Ampere with a 38-inch overall length. Toroidal brass coil housed on stainless steel support structure with flanged mounting plate.

Specifications & What's Included

  • Model: 264 Gauss/Amp Vacuum Solenoid Coil
  • Overall Length: 38 inches
  • Magnetic Field Rating: 264 Gauss per Amp
  • Connector: BNC (female) with blue coaxial cable
  • Coil Housing: Brass, toroidal/cylindrical design with open center bore
  • Support Structure: Stainless steel threaded rods
  • Mounting: Flanged end plate with bolt circle pattern
  • Includes small PCB sensor mounted near coil housing

Applications

Vacuum solenoid coils are used in research and industrial vacuum chambers to generate controlled axial magnetic fields. Common applications include particle physics experiments, plasma research, and electron beam systems where precise magnetic field control is required within a vacuum environment. This assembly integrates standard BNC connector output for field measurement and control integration with chamber equipment and instrumentation.

Condition: For Parts or Not Working
This vacuum solenoid coil (264 Gauss/Amp, 38" long, BNC output) is being sold as-is for parts or repair. The assembly appears physically intact — the brass toroidal coil housing, stainless steel support rods, flanged end plate, and blue BNC coaxial cable lead are all present. A small PCB sensor component is visible near the coil housing. The brass housing shows surface oxidation and minor wear consistent with prior lab use. The item has not been tested and no functionality is guaranteed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
264 Gauss/Amp Vacuum Solenoid Coil
Type:
Vacuum Solenoid / Magnetic Field Coil
SKU:
41532
Condition:
As-Is / For Parts or Not Working
Overall Length:
38 inches
Magnetic Field Rating:
264 Gauss per Amp
Connector Type:
BNC (female)
Cable Color:
Blue coaxial cable
Coil Housing Material:
Brass
Coil Housing Shape:
Toroidal / cylindrical with open center bore
End Plate:
Circular flanged plate with bolt pattern
Support Structure:
Stainless steel threaded rods
Application:
Vacuum chamber magnetic field generation
Mounting:
Flanged end plate with bolt circle
Seller Notes:
Sold as-is for parts or repair. BNC connector output. Includes small PCB sensor near coil housing.
Compatible With:
Vacuum chamber systems requiring axial magnetic field
Condition Notes:
Vacuum solenoid coil 264 Gauss/Amp, 38" long, sold as-is for parts or repair. Assembly appears intact — brass coil, stainless rods, flanged plate, BNC cable lead, and small PCB sensor present. Not tested; no functionality guaranteed.
