USHIO B0048 UV Flash Power Supply 3Ph 208V 45A Mitsubishi A1SJHCPU PLC System

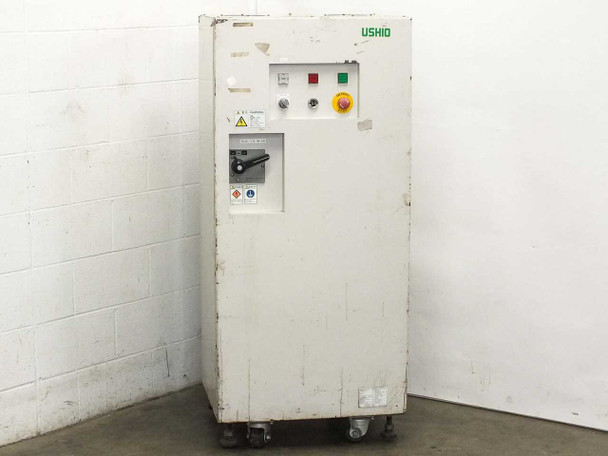

Floor-standing cabinet UV flash power supply system rated for 208V 3-phase 45A input. Includes integrated Mitsubishi MELSEC A-Series PLC, capacitor bank, and variable frequency drive for UV lamp curing applications.
Specifications & What's Included

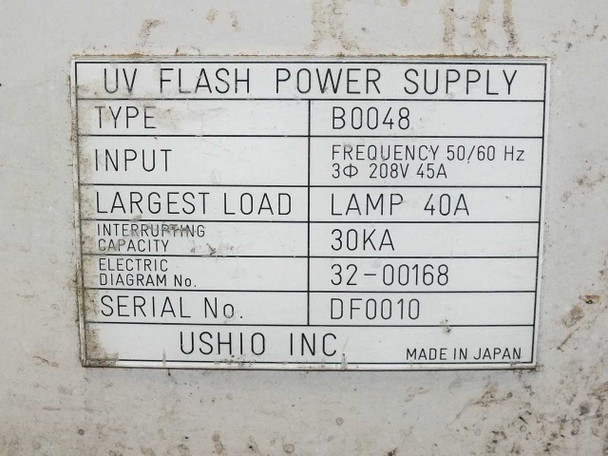

- Input: 208V, 3-phase, 50/60 Hz, 45A maximum
- Largest lamp load capacity: 40A
- Cabinet: 26"W × 22"D × 58"H on casters

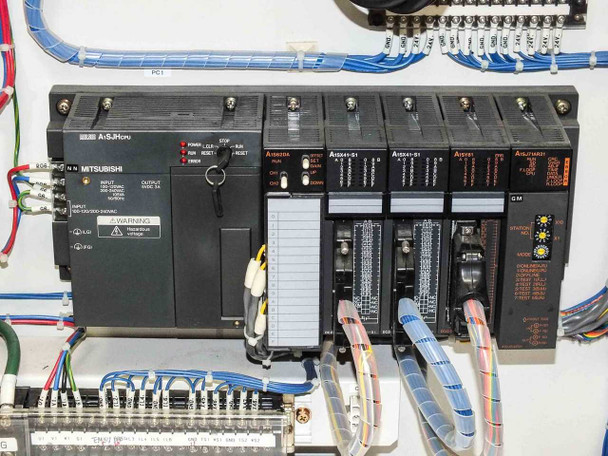

- Mitsubishi A1SJHCPU CPU module with four I/O modules and interface module
- Fuji BU-FSB3040 40A 3-pole breaker and SC-1N/SEUL contactor
- Mitsubishi FR-E520-0.4K VFD, YEC UY-PFC9000 power supply (Mfg. 2000-07)
- Four USHIO CPF-0014A capacitors (1800VDC, 250µF)
Applications
UV flash lamp curing and exposure systems use similar architectures for industrial printing, electronics manufacturing, and coating applications. The Mitsubishi MELSEC A-Series platform integrates directly with factory automation environments and supports both analog and digital control loops. This cabinet-style configuration provided standalone control and power delivery for UV lamp arrays in production line environments.
Condition: Used
This USHIO B0048 UV Flash Power Supply with integrated Mitsubishi A1SJHCPU PLC system has been inspected and is in good used condition. The unit was pulled from a working environment and shows the cosmetic wear expected from industrial service — the exterior cabinet has scuffing, paint wear, and surface soiling consistent with its age, most visibly on the front face and lower cabinet sections. Internally, all major sub-components appear intact and undamaged: the Mitsubishi MELSEC A-Series PLC rack, YEC UY-PFC9000 power supply, Fuji BU-FSB3040 breaker (CB1), four USHIO CPF-0014A 1800VDC 250µF capacitors, Mitsubishi FR-E520-0.4K Freqrol E500 VFD, Fuji SC-1N/SEUL contactor, and associated terminal blocks and wiring all appear complete and in serviceable order. This item is large and heavy (approx. 26"W x 22"D x 58"H) and will require freight shipping — please contact us for a freight shipping quote, to arrange local pickup, or to schedule a viewing at our facility. Please view our photo set and contact us if you have any questions.
This USHIO B0048 UV Flash Power Supply with integrated Mitsubishi A1SJHCPU PLC system has been inspected and is in good used condition. The unit was pulled from a working environment and shows the cosmetic wear expected from industrial service — the exterior cabinet has scuffing, paint wear, and surface soiling consistent with its age, most visibly on the front face and lower cabinet sections. Internally, all major sub-components appear intact and undamaged: the Mitsubishi MELSEC A-Series PLC rack, YEC UY-PFC9000 power supply, Fuji BU-FSB3040 breaker (CB1), four USHIO CPF-0014A 1800VDC 250µF capacitors, Mitsubishi FR-E520-0.4K Freqrol E500 VFD, Fuji SC-1N/SEUL contactor, and associated terminal blocks and wiring all appear complete and in serviceable order. This item is large and heavy (approx. 26"W x 22"D x 58"H) and will require freight shipping — please contact us for a freight shipping quote, to arrange local pickup, or to schedule a viewing at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Ushio |
Model: |
B0048 |
MPN: |
B0048 |
Type: |
UV Flash Power Supply System |
SKU: |
46971 |
Seller Notes: |
Includes Mitsubishi A1SJHCPU PLC, capacitor bank, Fuji breaker, YEC power supply, VFD, and more |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Floor-Standing Cabinet on Casters |
Input Voltage: |
208V |
Input Phase: |
3-Phase |
Input Frequency: |
50/60 Hz |
Input Current: |
45A |
Largest Lamp Load: |
40A |
Interrupting Capacity: |
30 kA |
Electric Diagram No.: |
32-00168 |
Cabinet Dimensions: |
26"W x 22"D x 58"H |
PLC Brand: |
Mitsubishi |
PLC Model: |
A1SJHCPU |
PLC Platform: |
Mitsubishi MELSEC A-Series |
Included Module 1: |
Mitsubishi A1SJHCPU – CPU Module (Qty 1) |
Included Module 2: |
Mitsubishi A1S62DA – Analog Output Module (Qty 1) |
Included Module 3: |
Mitsubishi A1SX41-51 – Digital Input Module (Qty 2) |
Included Module 4: |
Mitsubishi A1SY81 – Transistor Output Module (Qty 1) |
Included Module 5: |
Mitsubishi A1SJAR21 – Interface Module (Qty 1) |
Included Power Supply: |
YEC UY-PFC9000 (Mfg. 2000-07, Made in Japan) (Qty 1) |
Included Breaker: |
Fuji BU-FSB3040 – 40A, 3-Pole, 600V AC (Qty 1) |
Included VFD: |
Mitsubishi FR-E520-0.4K Freqrol E500 (Qty 1) |
Included Contactor: |
Fuji SC-1N/SEUL (Qty 1) |
Included Capacitors: |
USHIO CPF-0014A RG-SH 1800VDC 250uF (Qty 4) |
Capacitor Voltage Rating: |
1800 VDC |
Capacitor Capacitance: |
250 uF |
Application: |
UV Flash Lamp Curing / UV Exposure Systems |
Condition: |
Used – Inspected, Pulled from Working Environment |
Condition Notes: |
USHIO B0048 UV Flash Power Supply with Mitsubishi A1SJHCPU PLC system. Inspected, pulled from a working environment, good used condition. Cosmetic wear on exterior. All sub-components present. Freight shipping required. |
