Uni-Solar PVL-144 144W 24V Flexible Amorphous Solar Panel MC3 Lot of 30

Uni-Solar PVL-144 144W 24V Flexible Amorphous Solar Panel MC3 Lot of 30

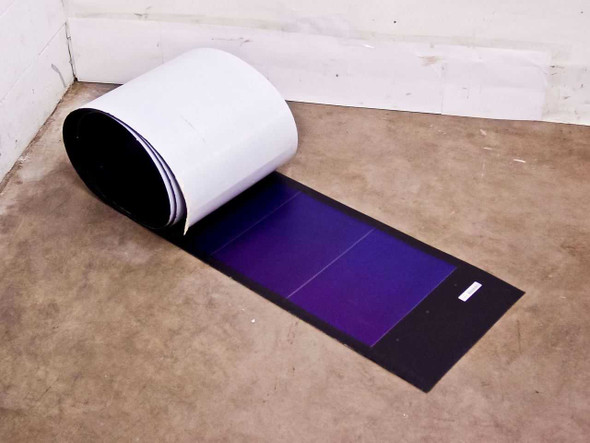

This listing is for a complete factory carton of 30 Uni-Solar PVL-144 144-watt flexible amorphous thin-film solar panels, totaling 4.32 kW. The panels are 2011 new old stock and remain in the original Uni-Solar factory carton, unused and in their original condition. Each panel uses an amorphous silicon (a-Si) thin-film cell construction on a lightweight, flexible laminate with a factory-applied peel-and-stick adhesive backing and MC3 connector cables.

Specifications & What's Included

• Quantity: 30 panels per carton (4,320W / 4.32 kW total)
• Maximum Power (Pmax): 144 W per panel
• Nominal Operating Voltage: 24V
• Voltage at Pmax (Vmpp): 33.0 V
• Current at Pmax (Impp): 4.36 A
• Short-Circuit Current (Isc): 5.3 A
• Open-Circuit Voltage (Voc): 46.2 V

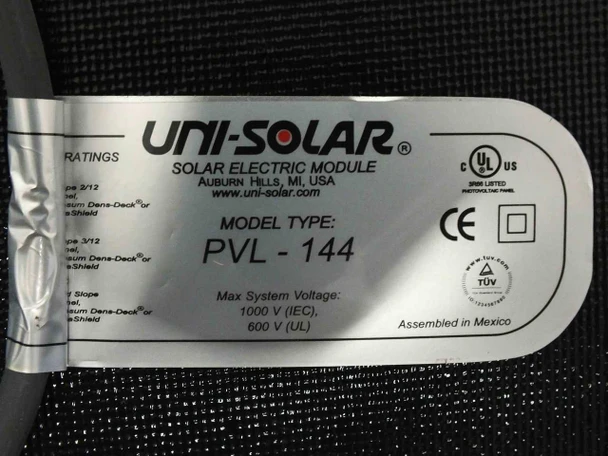

• Max System Voltage: 600 V (UL) / 1000 V (IEC)
• Module Efficiency: 6.67%
• Cell Technology: Amorphous silicon (a-Si) thin film — no glass
• Frame: Frameless flexible laminate
• Mounting: Factory-applied peel-and-stick adhesive on reverse

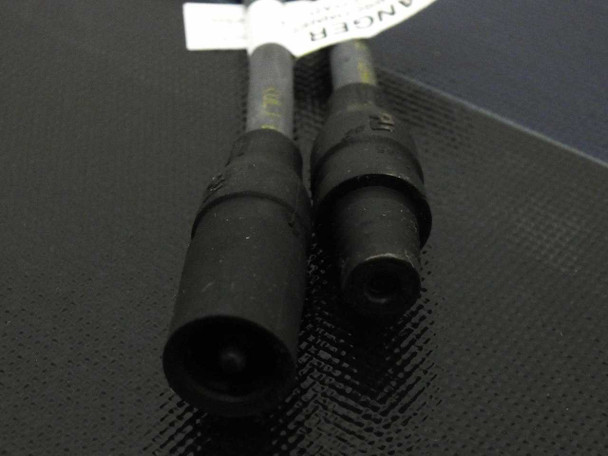

• Module Connector: MC3 with 12-inch lead wires (top-facing cables)
• Maximum Series Fuse: 10 A (UL) / 8 A (IEC)
• Minimum Blocking Diode: 10 A (UL) / 8 A (IEC)
• Field Wiring: Copper only, 12–10 AWG, 90°C minimum insulation rating
• Panel Dimensions: 18 ft x 15-3/8 in
• Panel Weight: 17 lbs each
• Certifications: UL Listed, CE, TÜV
• Assembled in: Mexico
• Date Code: February 2011

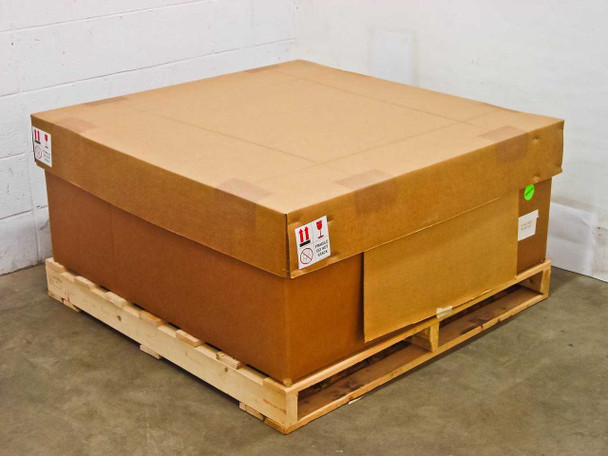

• Carton Weight: approximately 525–580 lbs
• Carton Dimensions: 45" W x 45" D x 25–30" H
• Each panel includes bypass diodes connecting individual cells in series

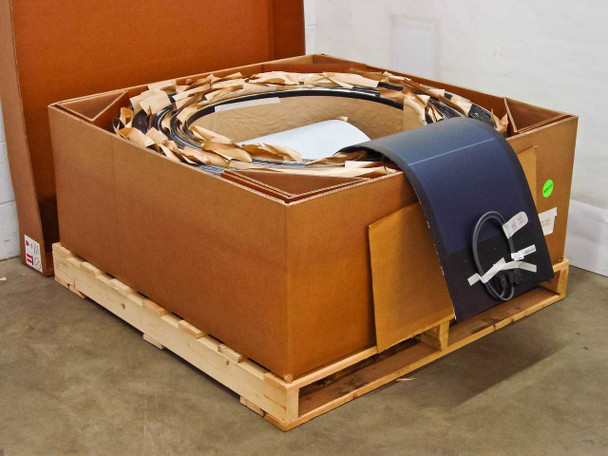

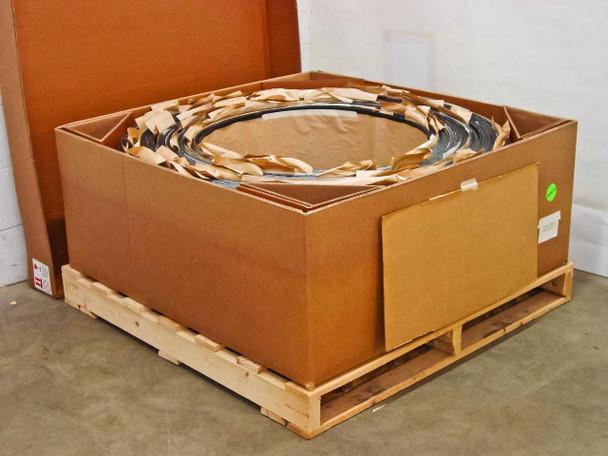

• Includes: 30 PVL-144 panels, MC3 connector accessories, installation instruction sheet — all in original Uni-Solar factory carton

Applications

The Uni-Solar PVL series is designed for direct adhesive installation on commercial metal roofing and TPO/EPDM membrane roofing systems, eliminating roof penetrations and the need for mounting racks or ballast. Because the panels are lightweight (about one-fifth the weight of conventional crystalline glass modules) and roll up for transport, they are practical for low-slope and curved roof profiles where rigid panels cannot be used. The amorphous silicon cell technology performs better than crystalline silicon under diffuse light, partial shading, and high ambient temperatures — the bypass diode architecture means a shaded or soiled cell reduces output from only that cell rather than shutting down the whole string. The PVL-144 was widely used in commercial and industrial rooftop systems throughout the 2000s and early 2010s, and remains a sought-after module for retrofit applications on existing membrane and standing-seam metal roofs. Cartons can be shipped on freight in stacked multiples for reduced per-unit shipping cost; individual panels can also be rolled and shipped in a roughly 20-inch cube for smaller orders.
