UDT

UDT S380 Dual Channel Optometer IEEE 488 GPIB Benchtop Optical Power Meter

(No reviews yet) Write a Review
SKU:
42469
MPN:
S380
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
10.00 LBS
Shipping:
Calculated at Checkout
  • UDT S380 Dual Channel Optometer – front panel three-quarter view showing LCD display, control buttons, and Channel 1 and Channel 2 BNC input connectors

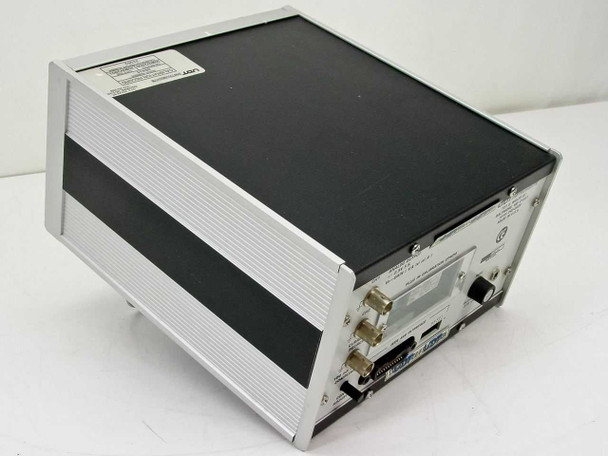

  • UDT S380 Optometer – rear panel view showing BNC analog outputs, IEEE 488 GPIB connector, DIP switch bank, EPROM socket, fuse holder, and EXT SUPPLY jack
  • UDT S380 Dual Channel Optometer – straight-on front panel view showing S380 label, LCD display, control buttons, and both channel BNC connectors; Channel 2 surround shows discoloration
  • UDT S380 Optometer – close-up of Channel 1 and Channel 2 BNC photodetector input connectors; Channel 2 panel surround shows visible tarnishing and discoloration
  • UDT S380 Dual Channel Optometer – close-up of front panel label reading S380 and DUAL CHANNEL OPTOMETER

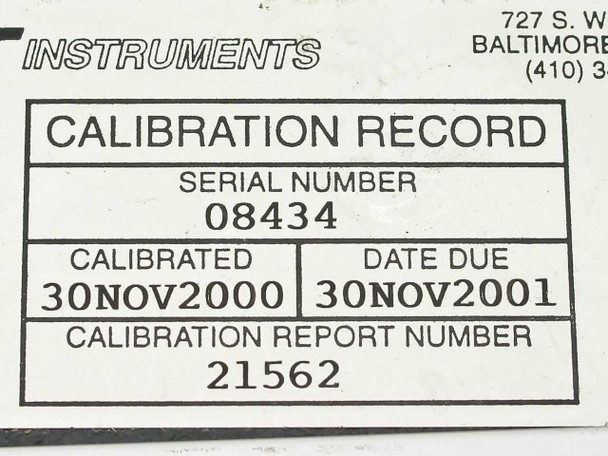

  • UDT S380 Optometer – calibration record sticker showing serial number 08434, calibrated 30NOV2000, date due 30NOV2001, calibration report number 21562
  • UDT S380 Optometer – internal PCB label showing Model S380, Serial 08434, Cal. 21562
  • UDT S380 Optometer – rear panel detail showing CH1 and CH2 BNC analog outputs labeled ±2.5V F.S., plug-in calibration EPROM module, IEEE 488 GPIB connector, and DIP address switch bank
  • UDT S380 Optometer – rear panel showing CE mark, serial number label 08434, SLO-BLOW 375 mA fuse, EXT SUPPLY jack, and manufacturer address Baltimore MD Made in USA

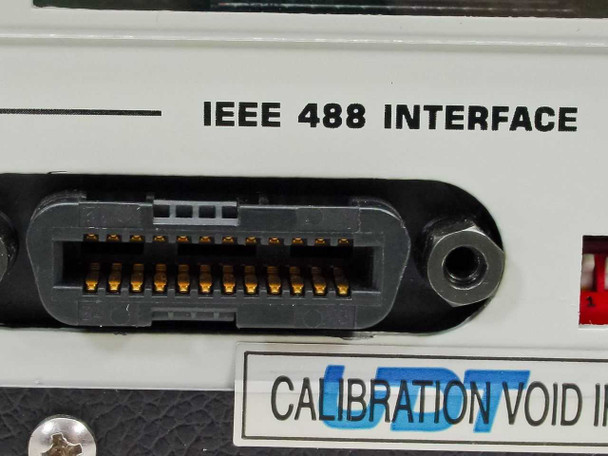

  • UDT S380 Optometer – close-up of IEEE 488 GPIB interface connector and UDT Instruments calibration void seal sticker on rear panel
  • UDT S380 Dual Channel Optometer System with IEEE 485 Interface
$185.00
Was: $768.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

UDT S380 Dual Channel Optometer IEEE 488 GPIB Benchtop Optical Power Meter

The UDT Instruments S380 is a benchtop dual-channel optometer designed to measure optical power from two photodetector inputs simultaneously. It accepts photodetector probes on its two front-panel BNC inputs (Channel 1 and Channel 2), processes the photocurrent, and displays results on a front-mounted LCD. A plug-in calibration EPROM on the rear panel stores the wavelength-specific calibration data for connected detectors, allowing the instrument to be recalibrated or reconfigured by swapping the EPROM module.

Specifications & What's Included

  • Model: UDT Instruments S380
  • Configuration: Dual channel (Channel 1, Channel 2)
  • Input connectors: 2x BNC photodetector inputs, front panel
  • Analog outputs: CH1 and CH2 BNC outputs, ±2.5V full scale; Vo = –GAIN (V/A) × I_in(A)
  • Current source output: 100 mA, 3V minimum compliance
  • Computer interface: IEEE 488 GPIB (rear panel, 24-pin GPIB connector)
  • GPIB address: Configurable via rear-panel DIP switch bank (16/8/4/2/1 positions)
  • Calibration: Plug-in EPROM PCB module (rear panel socket); calibration void if seal broken
  • Display: Front-panel LCD
  • Front-panel controls: POWER, DISPLAY ILLUM, FUNCTION, ZERO/LOG REF, CHANNEL SELECT, AUTO/MANUAL, CAL SELECT, WAVELENGTH, Up/Down arrows, START/STOP
  • Fuse: SLO-BLOW 375 mA (rear panel)
  • External supply jack: EXT SUPPLY (rear panel)
  • Form factor: Benchtop, aluminum enclosure with tilt stand
  • Compliance: CE marked
  • Manufactured by UDT Instruments, Baltimore, MD, USA
  • Included: Optometer unit only — no photodetector probes, GPIB cables, or manual included

Applications

The UDT S380 is a general-purpose optical power meter used in laboratory and production environments for measuring light intensity from photodiodes, photodetectors, and similar sensors. Instruments of this type are standard tools in optics labs, laser characterization setups, fiber optic test benches, photonics research, and radiometric calibration work. The dual-channel design allows simultaneous measurement of two detector inputs — useful for beam-splitting experiments, reference/signal comparisons, and differential power measurements. The IEEE 488 GPIB interface makes it compatible with automated test systems and GPIB-based instrument control software running on workstations and PCs from the same era. UDT Instruments (later part of Gamma Scientific) was a well-regarded U.S. manufacturer of optical detectors and radiometric instruments, and the S380 was a capable mid-range optometer suited to both research and production-line optical testing. The plug-in EPROM calibration system allowed labs to maintain separate calibrated detector/EPROM sets for different wavelengths or applications.

Condition: Used
This UDT Instruments S380 Dual Channel Optometer has been inspected and appears to be in good overall condition. The front panel controls and LCD display are intact, and the chassis shows the normal light wear expected on used bench instruments. Note that the Channel 2 front-panel connector surround shows visible discoloration and tarnishing — please review the photos for a clear view of this area. The plug-in calibration EPROM is present in the rear panel socket. The last recorded calibration was November 2000; buyers intending to use this instrument for calibrated measurements should plan to have it recalibrated. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
UDT Instruments
Model:
S380
MPN:
S380
Type:
Dual Channel Optometer / Optical Power Meter
SKU:
42469
Number of Channels:
2
Interface:
IEEE 488 GPIB
Analog Output:
±2.5V Full Scale
Output Type:
BNC analog output (CH1, CH2)
Input Connectors:
2x BNC (Channel 1, Channel 2 front panel)
Current Source Output:
100 mA, 3V min compliance
Fuse:
SLO-BLOW 375 mA
Calibration:
Plug-in calibration EPROM; last cal. 30NOV2000
Display:
LCD
Form Factor:
Benchtop
Country/Region of Manufacture:
United States
Seller Notes:
Unit only — no photodetectors, probes, GPIB cables, or manual included.
Condition Notes:
UDT Instruments S380 Dual Channel Optometer inspected and in good overall condition. Channel 2 connector surround shows discoloration/tarnishing — see photos. Calibration EPROM present; last cal. Nov 2000, recalibration recommended.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

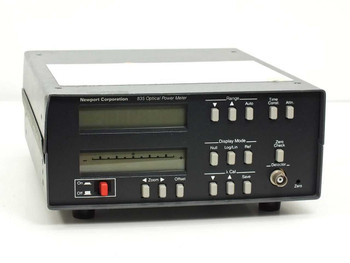

Newport Corporation 835 Optical Power Meter – front panel view showing dual LCD display, Range, Display Mode, and Cal controls Newport Corporation 835 Optical Power Meter – rear panel showing IEC power inlet, voltage selector, analog output terminals, and model label
