Description
Newport Corporation 835 Optical Power Meter 400-1000nm Pico-Watt Laser
Benchtop optical power meter designed to measure laser power across the 400–1000 nm wavelength range. Displays measurements on dual digital and analog readout with measurement range from 2 nanoWatts to 2 Watts in decade steps.
Specifications & What's Included
- Model: Newport 835
- Wavelength Range: 400–1000 nm
- Measurement Range: 2 nW to 2 W (decade steps)
- Resolution: 0.1 pW to 100 µW (4–10 digits)

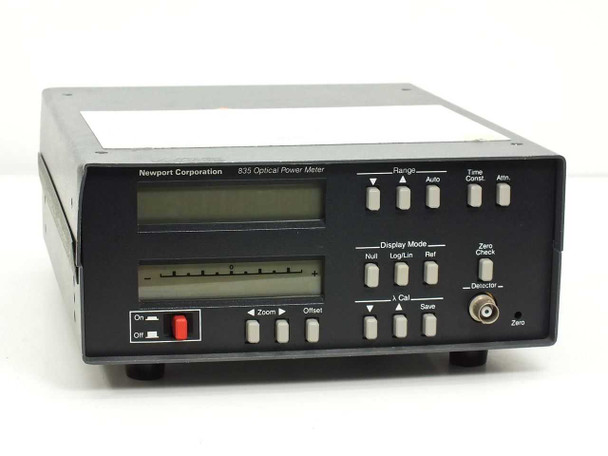

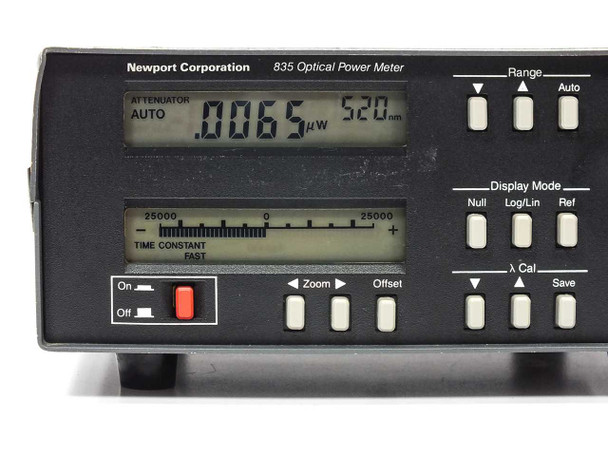

- Display: Digital readout + analog bar graph with Null/Log/Lin/Ref modes
- Auto attenuator; time constant selectable (Slow, Med, Fast)
- Power Requirements: 105–125V or 210–250V AC, 50–60 Hz

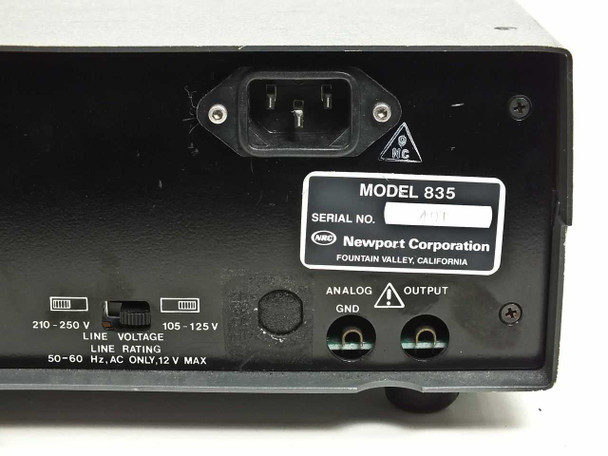

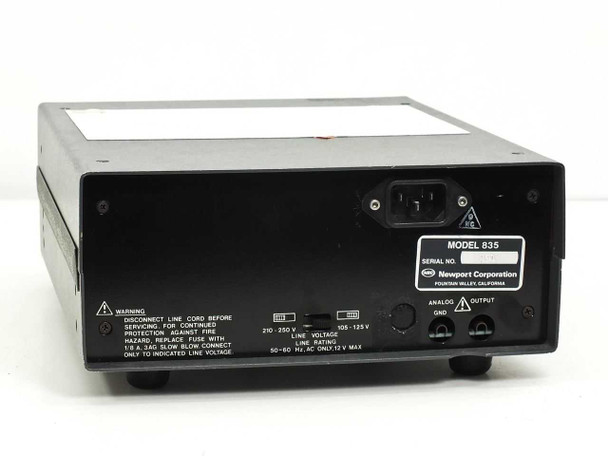

- Analog output on rear panel (12V max)
- Compatible with Newport 835-BAT battery pack
- Includes: Power cable only. Detector not included.
Applications
Optical power meters are used in telecommunications, photonics research, and laser system alignment for accurate power measurement and system validation. The Newport 835 serves laboratory and field environments requiring precise measurements in the visible to near-infrared spectrum. Commonly integrated into fiber optic testing setups and laser characterization workflows.
Condition: For Parts or Not Working
This Newport Corporation 835 Optical Power Meter powers on, the dual display lights up, and all front-panel buttons respond. However, we are unable to fully test the unit at our facility — full optical measurement verification would require a compatible detector, which is not included. As a result, this meter is being sold as-is for parts or repair with no functionality guarantee. The power cable is included; no detector is included. Please view our photo set and contact us if you have any questions.
This Newport Corporation 835 Optical Power Meter powers on, the dual display lights up, and all front-panel buttons respond. However, we are unable to fully test the unit at our facility — full optical measurement verification would require a compatible detector, which is not included. As a result, this meter is being sold as-is for parts or repair with no functionality guarantee. The power cable is included; no detector is included. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Newport Corporation |
Model: |
835 |
MPN: |
835 |
Type: |
Optical Laser Power Meter |
SKU: |
45384 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Powers on, display lights, buttons respond; cannot fully test. No detector included. Removable power cable included. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop |
Power Requirements: |
105-125V or 210-250V AC, 50-60Hz (selectable) |
Wavelength Range: |
400–1000 nm |
Measurement Range: |
2 nW to 2 W (in decade steps) |
Resolution: |
0.1 pW to 100 µW (4–10 digits, range dependent) |
Display Type: |
Dual display: digital readout + analog bar graph |
Display Modes: |
Null, Log/Lin, Ref |
Attenuator: |
Auto attenuator |
Analog Output: |
Yes – Analog GND/Output on rear panel, 12V max |
Sampling Interval: |
Approx. 160 ms |
Accuracy: |
Range dependent – see manual |
Detector: |
Not included – requires external detector |
Compatible With: |
Newport 835-BAT battery pack (field installable) |
Time Constant: |
Slow, Med, Fast (front panel selectable) |
Condition Notes: |
Newport 835 Optical Power Meter powers on, display lights, all buttons respond. Cannot fully test without detector (not included). Sold as-is for parts or repair, no functionality guarantee. Power cable included. |
