TTI Inc

TTI Inc T9000 TriboCop Spinstand Granite Plate SC2000 Signal Conditioner TSurf

(No reviews yet) Write a Review
SKU:
44778
MPN:
T9000
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
350.00 LBS
Shipping:
Calculated at Checkout
  • TTI T9000 TriboCop Spinstand system overview — main spinstand unit with acrylic enclosure, TriboCop base with pressure gauges, and three TTI rackmount power/control chassis stacked to the right
  • TTI rackmount chassis rear panels — upper unit showing Motor Control section with Servo A/B/C/D and Step connectors, 115V AC-IN, AC-OUT, DC-IN, and Fuse 15A; TTI Inc Milpitas CA label visible; lower unit showing DC Power Out (DC3/DC4), 115V AC-IN, AC-OUT, and Fuse 15A
  • TTI power supply rear panels — DC Power Out connectors, 115V AC-IN, AC-OUT, Fuse 15 Amp on upper unit; lower unit with 120V AC-IN, AC-OUT/1, Fuse 15 Amp and two large cooling fans; TTI Inc Milpitas CA labels visible
  • TTI TriboCop main unit front panel — 'TriboCop' and 'TTI' branding, three analog pressure gauges labeled Clamp, Spindle, and Line with Regulator labels, main power switch, and Power/Air/Index/Clamp LED indicators

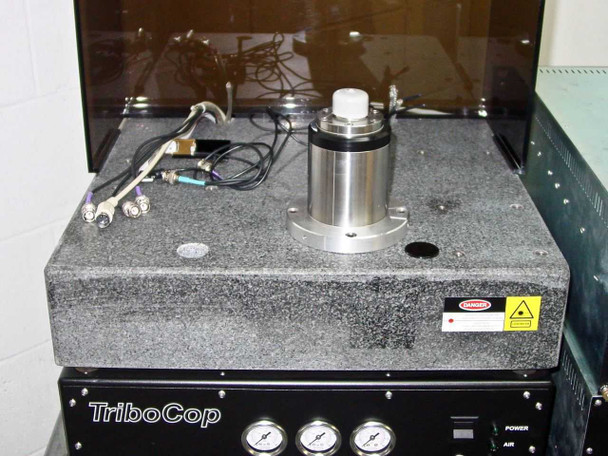

  • TTI T9000 TriboCop Spinstand top view — granite surface plate with spindle motor/head assembly mounted centrally, BNC and signal cables, laser warning label, with TriboCop base unit visible below
  • Close-up of BNC and signal cables included with the TTI T9000 TriboCop Spinstand system — multiple BNC connectors in purple, white, black, and teal, plus a small circular DC connector, resting on granite plate

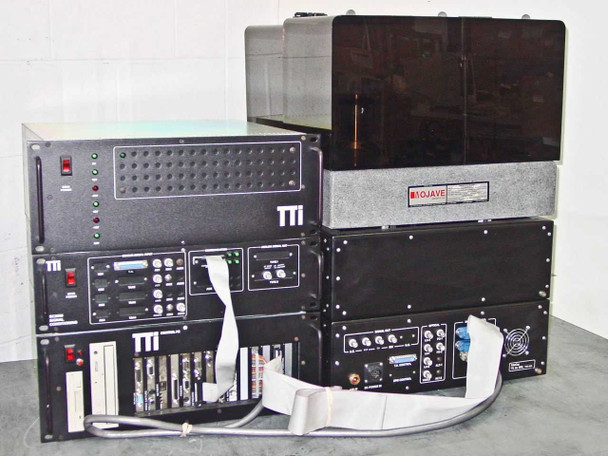

  • Full TTI T9000 system left rack stack — rackmount TTI power/control units with visible TTI branding, floppy drive and expansion card backplane in Control PC, ribbon cables; Mojave-labeled enclosure and main spinstand enclosure to the right
  • TTI SC2000 Signal Conditioner front panel — 'SC2000 SIGNAL CONDITIONING' label, Main Power switch, LED voltage indicators, Sensor Signal Input section (SS1–SS4, TA1–TA4, AUX1–AUX4 BNC connectors), Communication section (Main D-sub, AUX), Analog Signal Out (Type I and Type II); Control PC unit below with TTi branding
  • TTI SC2000 Signal Conditioner and Control PC front panels — SC2000 with Sensor Signal Input BNCs (SS1–SS4, TA1–TA4), Communication Main and AUX ports, Analog Signal Out Type I/II; TTI Control PC rackmount chassis below with expansion card backplane and floppy drive visible
  • TTI Control PC rear expansion slot panel — labeled slots: Monitor (VGA), Video Capture, Network, Printer (parallel), Keyboard, RS-232/Main COM 278H, Ch A and Ch B BNC connectors, CKT connector, Servo Control, Stepper Control; ribbon cable exiting chassis
  • TTI Control PC rear panel — full view of expansion card slots including Monitor, Video Capture, Network, Printer, Keyboard, RS-232/Main COM 278H card, Ch A/Ch B BNC outputs, Servo Control, and Stepper Control; all slot labels clearly visible
  • TTI SC2000 Signal Conditioner rear detail — Communication section with Main (blue D-sub/IEEE) and AUX connectors with LED indicators; Analog Signal Out section with Type I (AE Scope Output, AE Output to Digitizer BNCs) and Type II connections
  • TTI TriboCop spinstand rear/side panel detail — Signal Out BNC connectors labeled A.E., PZT, TA, IDX, S.G.; T.A. Control D-sub connector; SPM Control port; Air-In pneumatic fitting; DC Power In circular multi-pin connector
  • TTI TriboCop spinstand rear panel — Signal Out BNCs (A.E., PZT, TA, IDX, S.G.); Optical section with F, E, ALT-1, ALT-2, VIDEO BNC connectors; T.A. Control D-sub; SPM Control; Air-In and DC Power In connectors visible
  • TTI TriboCop spinstand rear panel — Optical section (F, E, ALT-1, ALT-2, VIDEO BNC connectors), Motion Control section with two blue Centronics-style connectors labeled N/C and Servo; TriboCop TTI Inc SR# label visible at lower right; cooling fan
$3,000.00
Was: $6,000.00
Current Stock: 1

Sold Out

Description

TTI Inc T9000 TriboCop Spinstand Granite Plate SC2000 Signal Conditioner TSurf

Benchtop tribology spinstand system for friction and wear testing of hard disk drive components. Used in HDD R&D for head/disk interface characterization and disk surface analysis.

Specifications & What's Included

  • TTI T9000 TriboCop Spinstand main unit with vibration-isolating granite plate
  • SC2000 Signal Conditioner rackmount unit with multiple signal outputs (A.E., PZT, TA, IDX, S.G. via BNC)
  • Control PC with Windows NT, multi-card backplane, monitor, keyboard, network and video capture ports
  • Multiple rackmount power supply chassis (115V/120V AC input, 15A fuses)
  • TSurf software suite for Windows NT
  • Partial set of BNC and signal cables
  • Front panel pressure gauges and status indicators (Power, Air, Index, Clamp LEDs)

Applications

The T9000 TriboCop is designed for hard drive R&D environments requiring precision measurement of friction coefficients, wear rates, and head-disk interactions. Signal outputs support acoustic emission, piezoelectric, thermal, and optical monitoring. Compatible with HDD manufacturing and research workflows for evaluating disk surface properties and slider performance under controlled spinstand conditions.

Condition: For Parts or Not Working
This TTI Inc T9000 TriboCop Spinstand tribology test system is being sold as-is for parts or repair. It came out of Western Digital where it was used in hard drive manufacturing R&D. The equipment has a good overall appearance with normal wear consistent with lab use — the granite plate, TriboCop base unit, SC2000 Signal Conditioner, TTI Control PC, and TTI power supply chassis are all present and appear physically intact. However, a portion of the upper assembly and one or more cables are reported missing, and due to the system's age and incomplete state, we are not able to confirm functionality. It is sold strictly as-is with no guarantee of working condition. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
TTI Inc
Model:
T9000
MPN:
T9000
Type:
Tribology Spinstand Test System
SKU:
44778
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes granite plate, SC2000 Signal Conditioner, Control PC, TSurf software, BNC cables. Upper assembly and some cables reported missing.
Country/Region of Manufacture:
United States
Form Factor:
Benchtop / Rackmount System
Software Included:
TSurf Software Suite (Windows NT)
Application / Use Case:
Friction and wear testing, disk tribology, HDD R&D
Components Included 1:
TTI T9000 TriboCop Spinstand main unit with granite plate
Components Included 2:
TTI SC2000 Signal Conditioner rackmount unit
Components Included 3:
TTI Control PC (rackmount, Windows NT, multi-card backplane)
Components Included 4:
TTI Power Supply units (multiple rackmount chassis)
Components Included 5:
TSurf software suite; BNC and signal cables (partial set)
Signal Outputs:
A.E., PZT, TA, IDX, S.G. (BNC); Optical: F, E, ALT-1, ALT-2, VIDEO
Signal Conditioner Model:
TTI SC2000
Control Interfaces:
T.A. Control (D-sub), SPM Control, Motion Control (Servo), Stepper Control
Communication Ports:
Main (D-sub/IEEE), AUX; Control PC: Monitor, Video Capture, Network, Printer, Keyboard
Power Supply Input:
115V AC-IN / 120V AC-IN (multiple units); Fuse: 15 Amp
Pressure Gauges:
Clamp, Spindle, and Line pressure gauges on front panel
Status Indicators:
Power, Air, Index, Clamp LEDs on front panel
Granite Plate:
Yes — vibration-isolating granite surface plate included
Compatible With:
Hard drive tribology R&D; HDD head/disk interface testing
Operating System:
Windows NT (TTI Control PC)
Condition Detail:
Sold as-is; upper assembly and some cables reported missing; age-related wear
Condition Notes:
TTI T9000 TriboCop Spinstand sold as-is for parts or repair. Came from Western Digital HDD R&D. Granite plate, SC2000, Control PC, and power chassis present; upper assembly and some cables missing. Not tested. No functionality guarantee.
