Description

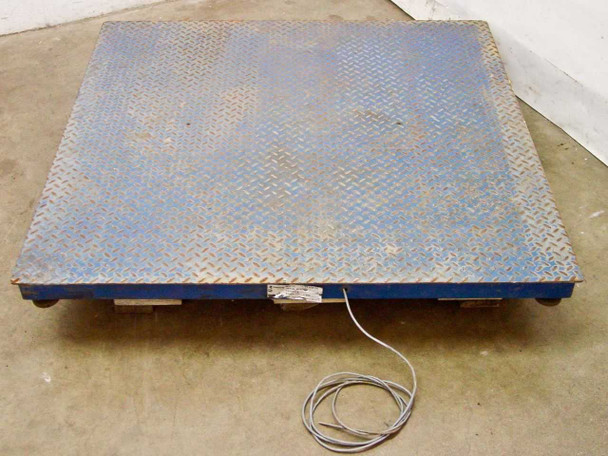

Totalcomp T4X4-6K Class 3 Floor Scale Platform 4x4 Ft 6000 lb Capacity For Parts
The Totalcomp T4X4-6K is a heavy-duty industrial floor scale platform rated for 6,000 lb capacity. It features a 4-foot by 4-foot diamond plate steel deck and is designed to pair with a separate weight indicator/display. The platform is built to NTEP Class 3 accuracy standards, making it suitable for legal-for-trade industrial weighing applications.
Specifications & What's Included
- Brand: Totalcomp
- Model: T4X4-6K
- Accuracy Class: NTEP Class 3
- Platform Dimensions: 4 ft x 4 ft (48 in x 48 in)
- Capacity: 6,000 lb maximum
- Deck Construction: Diamond plate steel
- Frame: Welded steel, painted blue

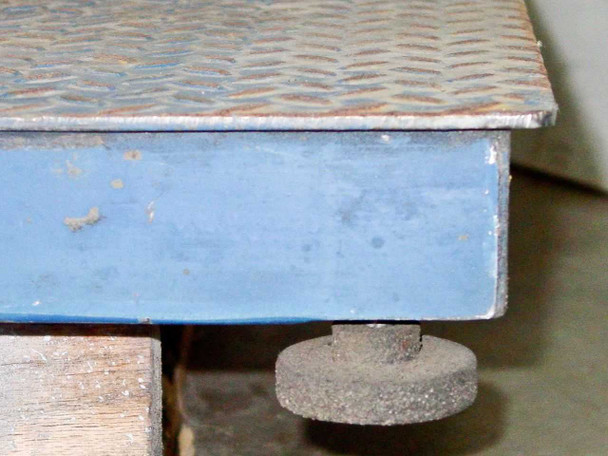

- Leveling Feet: Adjustable leveling feet present at corners
- Display: Not included

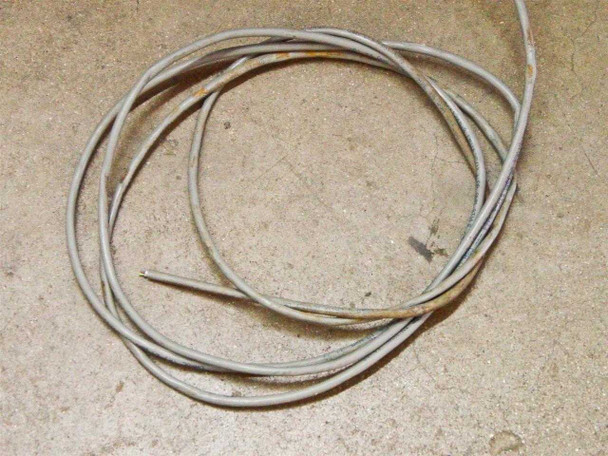

- Display Cable: Cut — bare wire ends; cable included with platform
- Condition: As-is, for parts or repair
Applications
Industrial floor scale platforms like the Totalcomp T4X4-6K are used in warehouses, manufacturing facilities, distribution centers, and shipping operations for weighing palletized loads, drums, and bulk materials. The 4x4 ft deck accommodates standard pallet footprints, and the platform sits low to the floor for easy pallet jack or forklift access. Class 3 platforms are designed to connect to a compatible NTEP-approved weight indicator, with the platform housing internal load cells that send a signal to the display. This unit's platform structure and load cell assembly may be usable as a replacement deck or for parts in an existing scale system. A buyer with a compatible weight indicator and the ability to re-terminate the cut cable could potentially restore this unit to service.

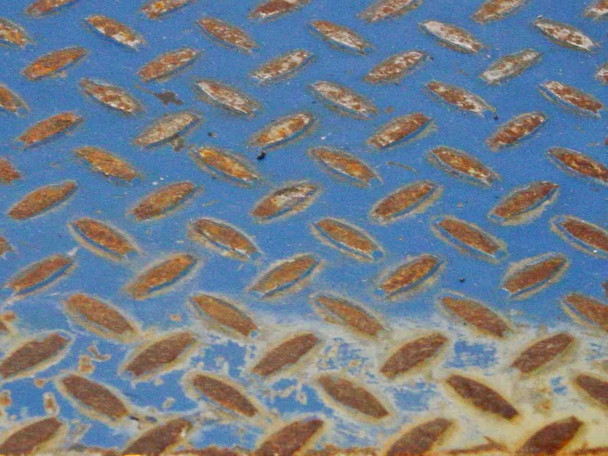

This Totalcomp T4X4-6K Class 3 Floor Scale Platform is being sold as-is for parts or repair. The cable to the display indicator has been cut and we do not have a display to test the unit, so functionality cannot be confirmed. The diamond plate steel deck shows significant surface rust across the top, and the blue paint on the frame shows wear and chipping. The adjustable leveling feet appear intact. The cut cable is included with the platform. This item may have value as a replacement scale platform or for parts. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Totalcomp |
Model: |
T4X4-6K |
MPN: |
T4X4-6K |
Type: |
Floor Scale Platform |
SKU: |
43574 |
Condition: |
As-Is / For Parts or Not Working |
Accuracy Class: |
Class 3 |
Platform Size: |
4 ft x 4 ft (48 in x 48 in) |
Capacity: |
6000 lb |
Scale Type: |
Floor / Pallet Scale |
Deck Material: |
Diamond Plate Steel |
Display Included: |
No |
Cable Status: |
Display cable cut — no display included |
Seller Notes: |
Platform only — display cable cut, no display. Sold for parts or repair. |
Country/Region of Manufacture: |
United States |
Compatible With: |
Standard weight indicator / digital display with load cell input |
Condition Notes: |
Totalcomp T4X4-6K Class 3 Floor Scale Platform sold as-is for parts. Display cable is cut; no display included; functionality untested. Deck shows surface rust and paint wear. Cut cable included. |
