Topaz

Topaz MN1C-AD075 Computer AC Power Distribution Center 208Y/120V 3-Phase 125A

(No reviews yet) Write a Review
SKU:
27550
MPN:
Powercenter
Condition:
Used
Availability:
Usually ships within 3-5 business days — please contact us to confirm freight arrangements for this large floor-standing unit.
Weight:
1,100.00 LBS
Shipping:
Calculated at Checkout

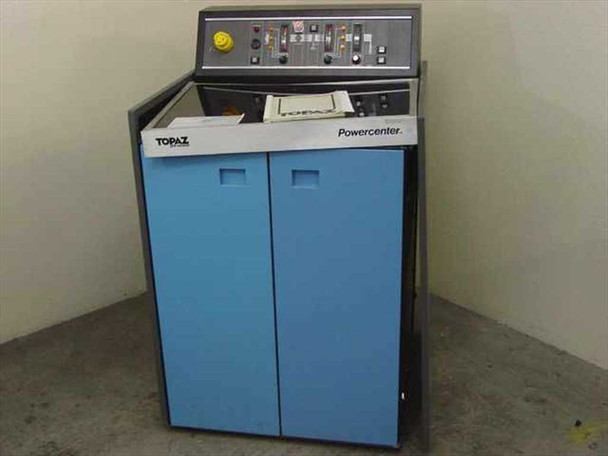

  • Topaz MN1C-AD075 Powercenter – front view showing blue cabinet doors and top-mounted Power-Flow control panel

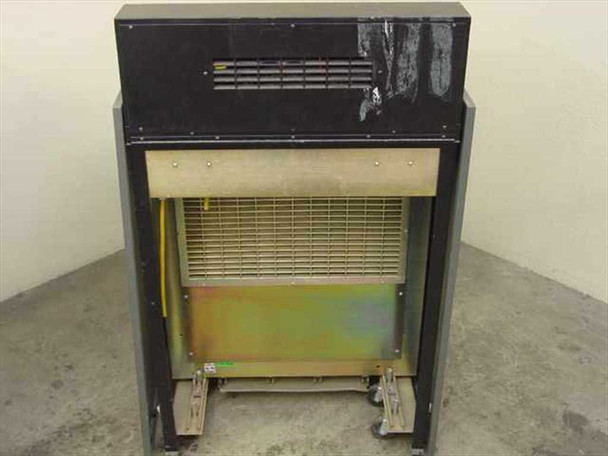

  • Topaz MN1C-AD075 Powercenter – rear view showing ventilation grille, top exhaust, and isolation transformer visible through lower opening

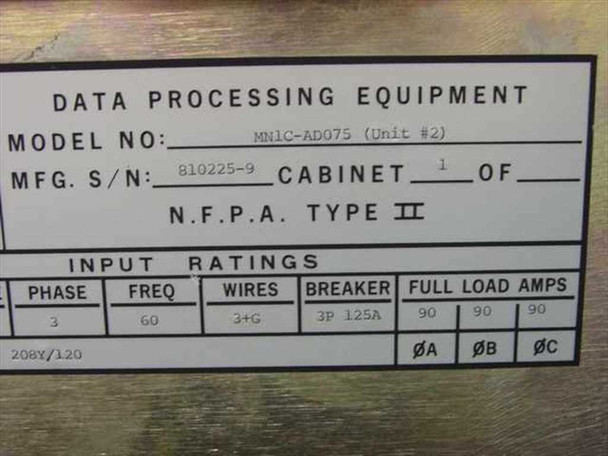

  • Topaz MN1C-AD075 rating plate – shows Model MN1C-AD075, MFG S/N 810225-9, 3-Phase 60Hz 3+G wiring, 3P 125A breaker, 90A full load per phase, 208Y/120V, NFPA Type II

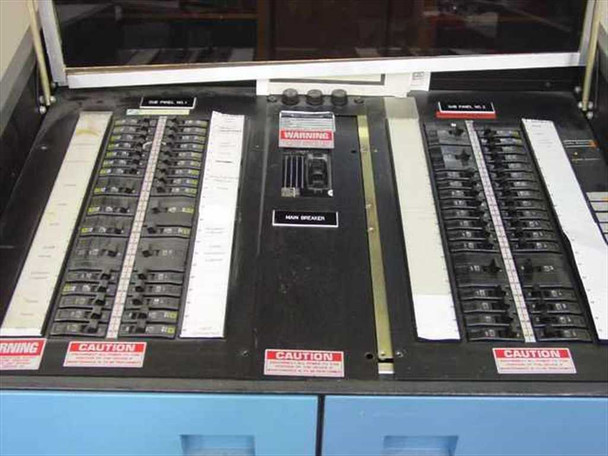

  • Topaz MN1C-AD075 interior top – main breaker panel open showing Sub Panel 1 and Sub Panel 2 circuit breakers and central main breaker with warning labels

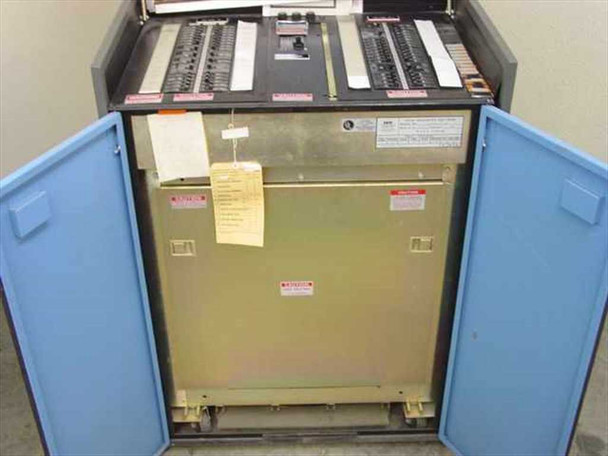

  • Topaz MN1C-AD075 – cabinet doors open showing isolation transformer body inside lower cabinet and breaker panels at top

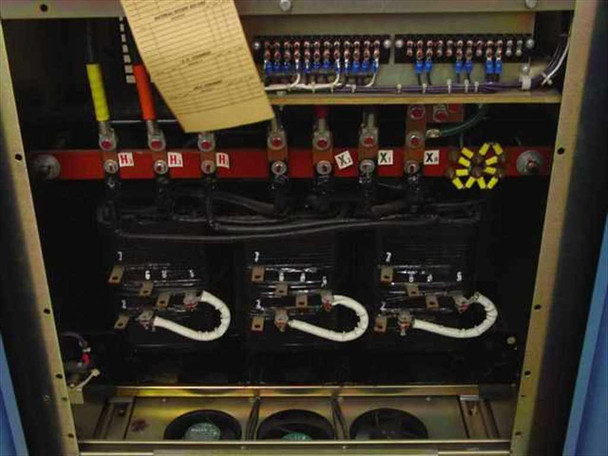

  • Topaz MN1C-AD075 – transformer compartment interior showing H1–H4 and X1–X2 terminal bus bars, primary and secondary winding connections, and three-phase transformer core

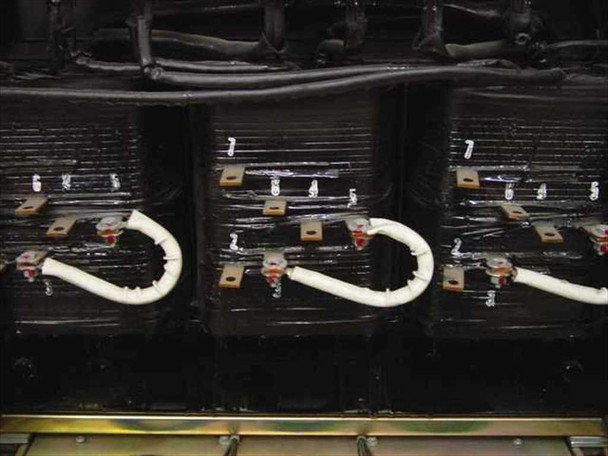

  • Topaz MN1C-AD075 – close-up of three-phase isolation transformer windings showing inter-winding electrostatic shield connections and tap wiring

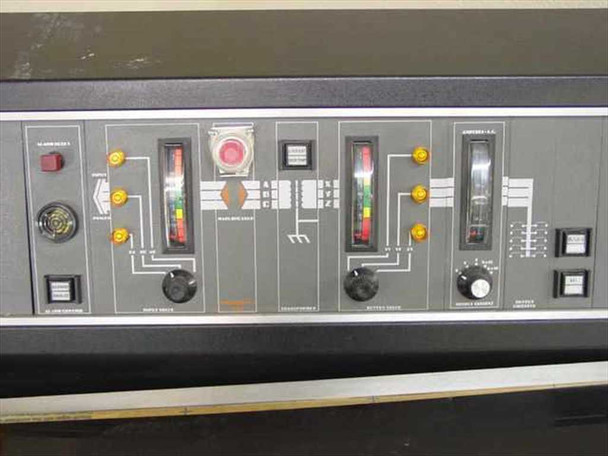

  • Topaz MN1C-AD075 Power-Flow control panel – front panel showing analog metering gauges, supply/transformer/output indicators with LED lamps, alarm indicators, and control switches

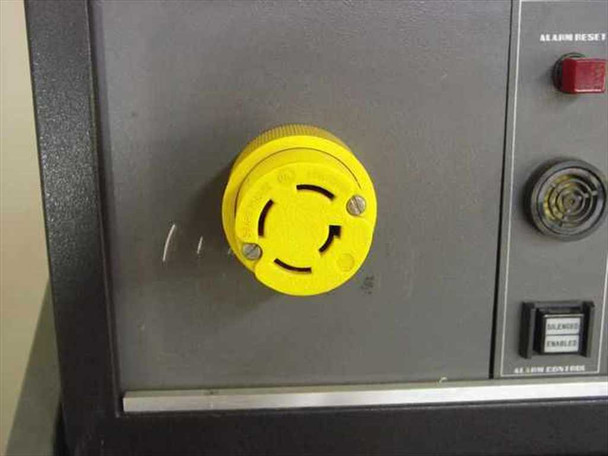

  • Topaz MN1C-AD075 – side panel detail showing yellow twist-lock connector (alarm/control interface) with Alarm Reset button and Silence/Enable alarm control switch

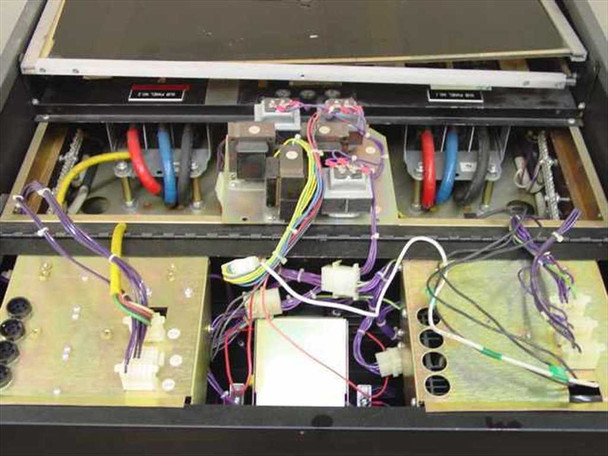

  • Topaz MN1C-AD075 – internal electronics bay showing auxiliary transformers, control wiring harness (multi-color), and metering/control PCBs
$1,400.00
Was: $2,800.00
Current Stock: 1

Sold Out

Description

Topaz MN1C-AD075 Computer AC Power Distribution Center 208Y/120V 3-Phase 125A

Floor-standing AC power distribution center designed for computer room and data center applications. Provides isolated and conditioned 208Y/120V three-phase power with individual circuit breaker protection and emergency shunt-trip capability.

Specifications & What's Included

  • Input: 208Y/120V 3-Phase, 60 Hz, 125A master breaker
  • Full load capacity: 90A per phase
  • Electrostatically shielded isolation and step-down transformer
  • Dual sub-panel configuration with individual circuit breakers per output
  • Emergency shunt-trip mechanism and single-point ground
  • Power-flow metering panel with standard alarms
  • NFPA Type II classification
  • Unit only; output cables not included

Applications

Topaz power distribution centers serve computer rooms, server facilities, and data centers requiring conditioned AC power with isolation and surge protection. These units filter electrical noise and provide independent circuit management for sensitive equipment. Commonly used in telecommunications facilities and controlled-environment installations where power quality and redundancy are required.

Condition: Used
This Topaz MN1C-AD075 Computer AC Power Distribution Center (Powercenter) has been inspected and is in good used condition. The blue cabinet panels show normal wear consistent with prior data center use, and the control panel face has some surface marks and discoloration typical of age. The internal transformer, breaker panels, and wiring all appear intact and complete as shown in the photos. The Power-Flow metering panel, sub-panel breakers, and main 125A shunt-trip breaker are all present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Topaz
Model:
MN1C-AD075
MPN:
MN1C-AD075
Type:
Computer AC Power Distribution Center (Powercenter)
SKU:
27550
Input Voltage:
208Y/120V AC
Phase:
Three Phase (3-Phase)
Frequency:
60 Hz
Input Wiring:
3-Phase + Ground (3+G)
Master Breaker Rating:
3-Pole 125A
Full Load Amps:
90A per phase (A, B, C)
NFPA Classification:
NFPA Type II
Transformer Type:
Electrostatically shielded isolation & step-down
Output Distribution:
Individual circuit breaker per output cable
Sub-Panel Configuration:
Dual sub-panels (Sub Panel 1 & Sub Panel 2)
Master Breaker Feature:
Emergency shunt-trip mechanism
Grounding:
High integrity, low impedance, single point ground
Metering:
Power-Flow panel with standard metering and alarms
Safety Interface:
Building safety and emergency-off interface
Form Factor:
Floor-Standing Cabinet
Manufacturer Serial Number:
810225-9
Application:
Computer room / data center AC power distribution
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only; no output cables included. See photos for full detail.
Country/Region of Manufacture:
United States
Condition Notes:
Topaz MN1C-AD075 Computer AC Powercenter. Inspected, good used condition. Cabinet shows normal wear; internal transformer, breaker panels, and wiring appear intact and complete. Please contact us with any questions.
