PDI PP13-4-1500-641 Power Pak M-4 PDU 150 KVA 480V 3-Phase 208/120V 180A

(No reviews yet) Write a Review
SKU:
52920
MPN:
PP13-4-1500-641
Condition:
Used
Availability:
Usually ships within 3-5 business days due to size and freight requirements.
Weight:
1,617.00 LBS
Shipping:
Calculated at Checkout

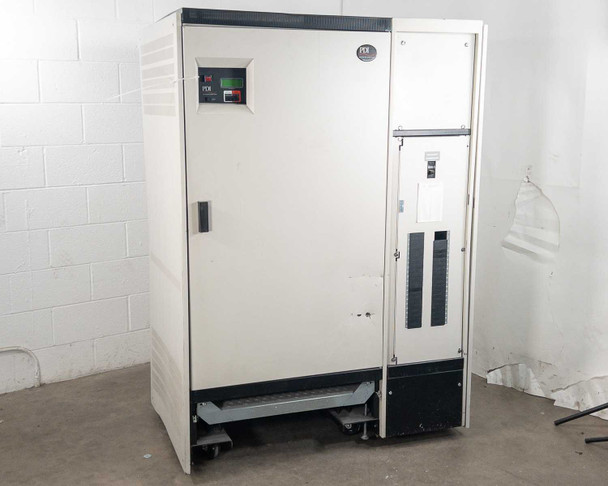

  • PDI Power Pak M-4 PDU PP13-4-1500-641 floor-standing cabinet — front left view showing main door and side breaker panel, closed
  • PDI Power Pak M-4 PDU PP13-4-1500-641 — front right three-quarter view showing M-4 monitor panel and right breaker cabinet door closed
  • PDI PP13-4-1500-641 rating plate showing serial number 110-0668, model PP13-4-1500-641, manufacture date 10/00, 150 KVA, 480V/180A/3-phase input, 208/120V 416A 3-phase output, 250A input breaker, 225A output breaker
  • PDI Power Pak M-4 PDU — front view with main left cabinet door open, revealing internal panelboard section with red caution tags on breakers
  • PDI Power Pak M-4 interior — full panelboard view with left and right breaker panels open, showing dual branch circuit breaker arrays and bus connections
  • PDI Power Pak M-4 interior lower section — three-phase dry-type step-down transformer cores with UL/CSA labels, wiring harnesses, and bus bar connections visible
  • L3 Communications transformer nameplate — KVA, phase 3, 60 Hz, HV and LV tap/voltage chart, style, customer PN, serial number, and manufacture date fields visible
  • PDI M-4 Monitor instruction label and PDI Power Pak M-4 Monitor display label showing model M-4 and date 07/04/94; monitor mode and alarm mode operating instructions
  • PDI Power Pak M-4 interior upper wiring section — input bus bar terminals (Line A, Line B, Line C), control wiring harnesses, and internal power supply board

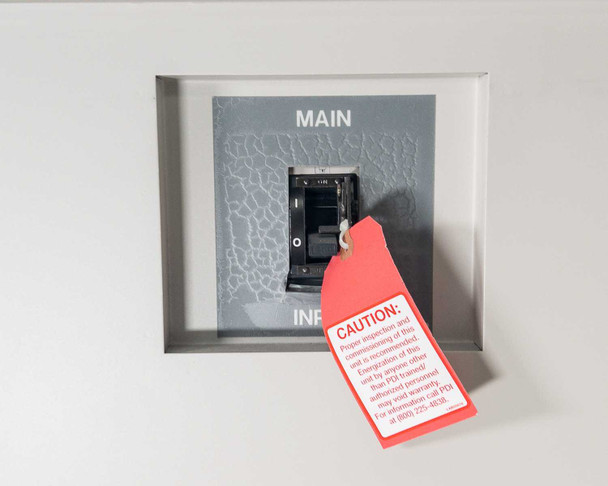

  • PDI Power Pak M-4 main input breaker panel — labeled MAIN with 250A breaker shown in OFF position with red CAUTION tag attached
  • PDI M-4 Monitor front control panel — red power button, green LCD true RMS display, Display Functions buttons, and four numbered Alarm indicator buttons

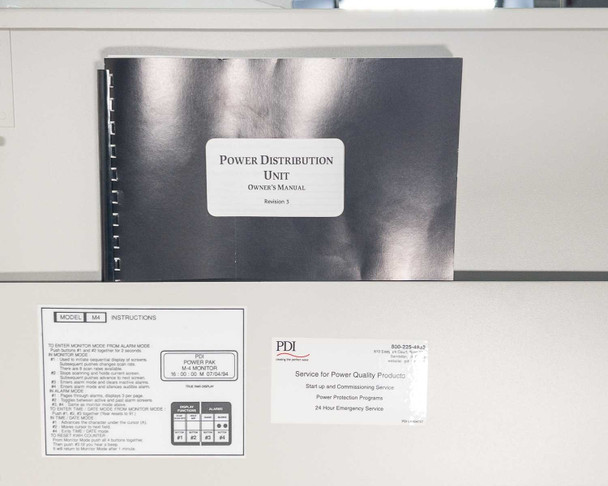

  • PDI Power Distribution Unit Owner's Manual (Revision 5) spiral-bound, M-4 Monitor instruction card, and PDI service information card laid on table

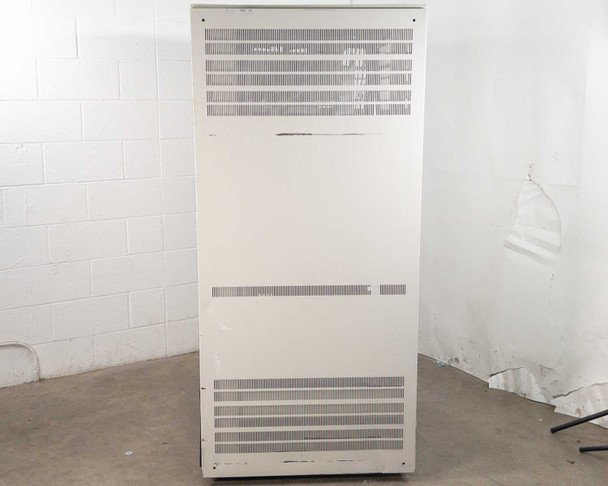

  • PDI Power Pak M-4 PDU — rear view of full cabinet showing louvered ventilation panels on upper and lower sections

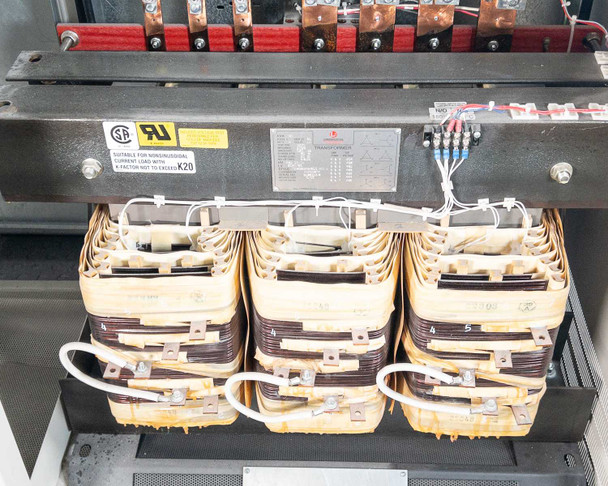

  • PDI Power Pak M-4 — lower interior close-up of three-phase transformer cores with UL and CSA certification labels and copper bus bar connections at top
  • PDI Power Pak M-4 PDU — side/rear view of cabinet showing louvered ventilation openings
  • PDI Power Pak M-4 interior input bus bar close-up — labeled Ground Bus, Line C, Line B, Line A terminals with lug connections and incoming cables

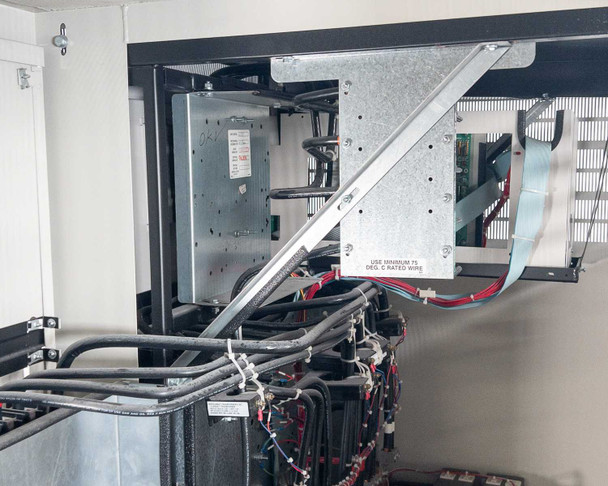

  • PDI Power Pak M-4 interior upper section — M-4 monitor electronics module, cable management, and internal wiring with label reading USE MINIMUM 75 DEG C RATED WIRE
  • PDI Power Pak M-4 interior — close-up of center branch circuit breaker column showing individual circuit breaker positions and bus bar connections
  • PDI Power Pak M-4 interior — output panelboard section showing 225A main breaker and label stating panelboard rated for continuous duty 175A maximum, with lug bus bars below

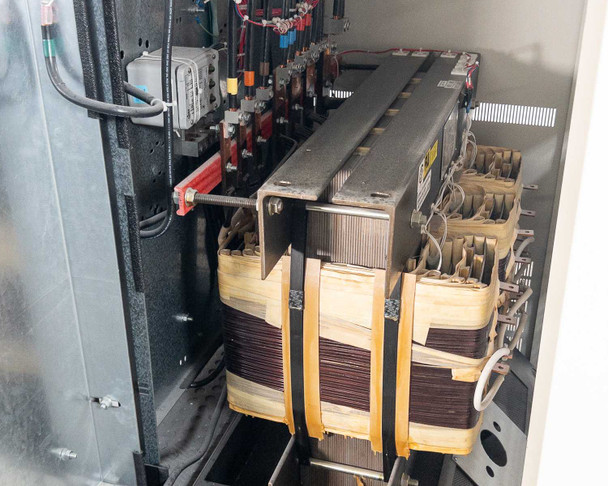

  • PDI Power Pak M-4 — additional transformer section showing stacked three-phase transformer cores, bus bars, and branch wiring inside lower cabinet
  • PDI PP13-4-1500-641 Power Pak M-4 Monitor Power Distribution Unit 480v 180a 3Pha
$8,000.00
Was: $12,000.00
Current Stock: 1

Sold Out

Description

PDI PP13-4-1500-641 Power Pak M-4 PDU 150 KVA 480V 3-Phase 208/120V 180A

Floor-standing power distribution unit with integrated step-down transformer. Converts 480V 3-phase input to 208Y/120V output for critical power applications.

Specifications & What's Included

  • 150 KVA capacity, 60 Hz
  • Input: 480V 3-phase, 180A, 250A main breaker
  • Output: 208Y/120V 3-phase, 416A, 225A main breaker
  • Transformer: L3 Communications step-down configuration
  • UL and CSA listed
  • Includes PDI M-4 monitor and Owner's Manual (Revision 5)
  • Manufactured October 2000

Applications

Used in data centers, server rooms, and other critical power environments requiring voltage conversion and distribution. The Power Pak M-4 supplies 208/120V branch circuits from 480V building infrastructure. Compatible with standard 3-phase PDU monitoring and control systems.

Condition: Used
This PDI Power Pak M-4 Power Distribution Unit (model PP13-4-1500-641) has been inspected and is in good used condition. The unit was pulled from a working data center or computer room environment where it had been in active service. The exterior cabinet shows typical wear consistent with operational use — minor scuffing on the white painted panels is visible. Internally, the transformer cores, panelboard, and wiring appear intact and undamaged based on inspection. The M-4 monitor control panel is present and the display and button assembly appear complete. The original Power Distribution Unit Owner's Manual (Revision 5), M-4 Monitor instruction card, and PDI service reference card are included as shown in the photos. A red CAUTION tag is attached to the main input breaker, consistent with standard lockout/tagout practice during storage and transport — this is normal for equipment of this type and is not an indication of a fault. Please view our complete photo set and contact us with any questions prior to purchase.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
PDI (Power Distribution Inc.)
Model:
Power Pak M-4
MPN:
PP13-4-1500-641
Type:
Power Distribution Unit (PDU) with Transformer
SKU:
52920
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes Power Distribution Unit Owner's Manual (Revision 5)
Country/Region of Manufacture:
United States
Form Factor:
Floor-Standing Cabinet
Power Rating:
150 KVA
Input Voltage:
480V
Input Current:
180A
Input Phase:
3-Phase
Input Main Breaker:
250A
Output Voltage:
208/120V (208Y/120V)
Output Current:
416A
Output Phase:
3-Phase
Output Main Breaker:
225A
Frequency:
60 Hz
Transformer Configuration:
Step-Down, HV 480V to LV 208Y/120V
Transformer Manufacturer:
L3 Communications (formerly Fideltronics)
Monitor Model:
PDI M-4 Monitor
Input Connection:
3-Phase Bus Bar: Line A, Line B, Line C + Ground Bus
UL Listed:
Yes (UL label visible on transformer and panelboard)
CSA Listed:
Yes (CSA label visible on transformer)
Manufacture Date:
October 2000
Serial Number Prefix:
110-0668 (see internal fields)
Compatible With:
Data centers, computer rooms, critical power environments
Condition Notes:
This PDI Power Pak M-4 Power Distribution Unit (model PP13-4-1500-641) has been inspected and is in good used condition. The unit was pulled from a working data center or computer room environment where it had been in active service.
