Tokimec

Tokimec 02-123806 D7-24 DC 24V Hydraulic Solenoid Valve 02-123882 40018228

(No reviews yet) Write a Review
SKU:
46828
MPN:
02-123806
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Shipping:
Calculated at Checkout

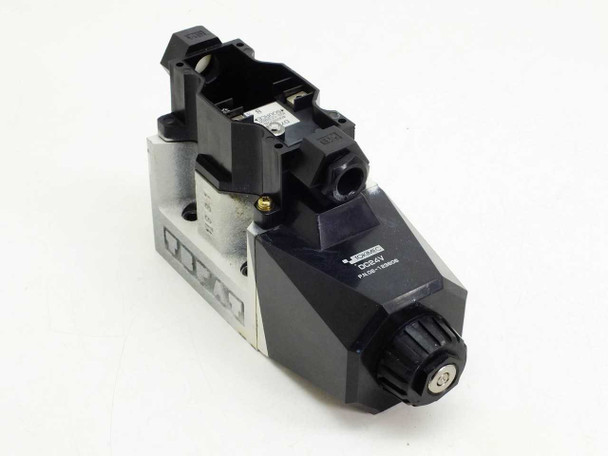

  • Tokimec 02-123806 D7-24 DC 24V hydraulic solenoid valve — front-left three-quarter view showing solenoid coil housing and valve body
  • Tokimec 02-123806 D7-24 hydraulic solenoid valve — rear-left three-quarter view showing aluminum manifold base and solenoid assembly

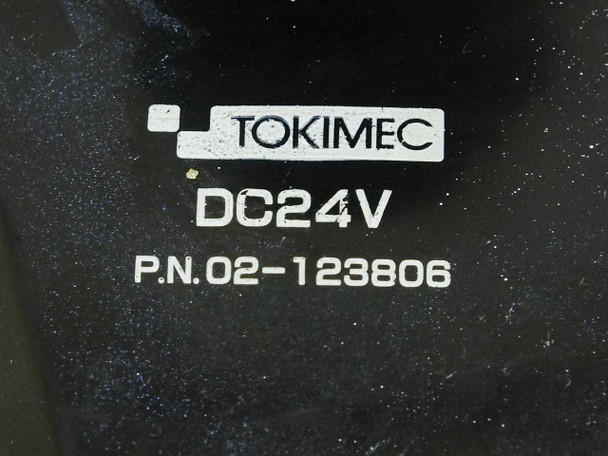

  • Tokimec DC24V label close-up showing brand name, voltage rating DC24V, and part number P.N. 02-123806
  • Solenoid coil label close-up showing model D7-24, reference number 40018228, part number 02-123882, and SOURCE marking with 8X designation
  • Tokimec D7-24 solenoid valve — end view showing octagonal manual override knob with center detent pin

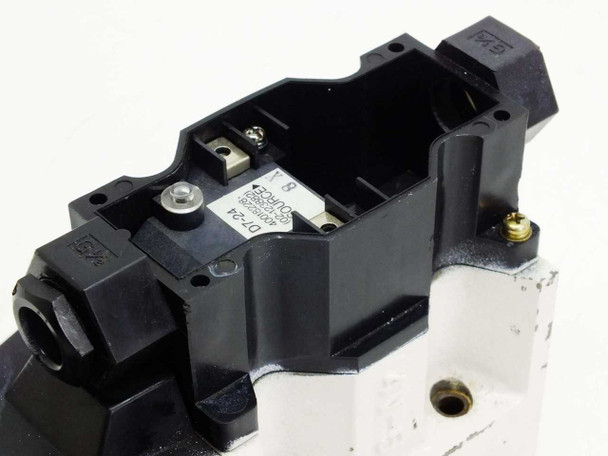

  • Tokimec D7-24 valve — top view of solenoid coil DIN connector cavity showing terminal block and D7-24 label
  • Tokimec hydraulic solenoid valve — bottom-side view of aluminum manifold base showing port openings and embossed logo
$225.00
Was: $450.00
Current Stock: 1

Sold Out

Description

Tokimec 02-123806 D7-24 DC 24V Hydraulic Solenoid Valve 02-123882 40018228

The Tokimec 02-123806 is a DC 24V solenoid-operated hydraulic directional control valve in the D7 series. This type of valve uses an electromagnetic coil to shift an internal spool, directing hydraulic fluid flow between ports to control actuator movement or system pressure in a hydraulic circuit. The coil connects via a standard DIN-style connector cavity on top of the solenoid housing, and a manual override knob on one end allows the spool to be shifted mechanically when needed.

Specifications & What's Included

  • Brand: Tokimec
  • Part Number (P.N.): 02-123806
  • Secondary Part Number: 02-123882
  • Reference Number: 40018228
  • Model / Series: D7-24
  • Coil Voltage: DC 24V
  • Actuation: Solenoid-operated
  • Valve Type: Hydraulic directional control valve (spool type)
  • Connector: DIN-style solenoid coil cavity (top-mounted)
  • Manual Override: Octagonal knob with center detent pin (end-mounted)
  • Valve Body / Manifold: Aluminum manifold base with multiple port openings
  • Country of Manufacture: Japan
  • Included: Valve assembly only

Applications

Tokimec (formerly Tokyo Keiki) is a well-known Japanese manufacturer of hydraulic components, producing directional control valves, pumps, and servo valves for industrial and mobile hydraulic systems. The D7 series solenoid directional valve is used to control the direction of hydraulic fluid flow in machine tool hydraulic circuits, injection molding machines, presses, industrial automation equipment, and similar hydraulic power systems. These valves are commonly mounted on sub-plate manifolds and wired to a machine's PLC or relay-based control system, which energizes the solenoid coil to shift the spool and route oil to the desired actuator port. The DC 24V coil voltage is the standard for PLC-interfaced systems. Replacement and spare-parts demand for Tokimec D7-series valves remains strong in facilities that maintain legacy Japanese machine tools and hydraulic presses.

Condition: Used
This Tokimec 02-123806 D7-24 DC 24V hydraulic solenoid valve has been inspected and appears to be in good condition. It has not been tested at our facility. The valve body and aluminum manifold base show light surface marks and minor cosmetic wear consistent with prior use or storage; overall the unit looks clean and intact. The solenoid coil housing, DIN connector cavity, and manual override knob are all present and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tokimec
Model:
D7-24
MPN:
02-123806
Secondary Model:
02-123882
Type:
Hydraulic Solenoid Directional Control Valve
SKU:
46828
Coil Voltage:
DC 24V
Actuation Type:
Solenoid
Valve Series:
D7
Reference Number:
40018228
Seller Notes:
Valve only; inspected and appears in good condition; not bench-tested.
Country/Region of Manufacture:
Japan
Condition Notes:
Tokimec 02-123806 D7-24 DC 24V hydraulic solenoid valve. Inspected; appears in good used condition. Not tested at our facility. Light cosmetic wear. Please view photos and contact us with questions.
