Tiara

Tiara LanCard 785A368U04 Rev F ISA Network Card BNC AUI 1989

(No reviews yet) Write a Review
SKU:
40759
MPN:
785A368U04
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Tiara LanCard 785A368U04 ISA network card – angled front view showing BNC and AUI DB15 bracket connectors and populated PCB
  • Tiara LanCard 785A368U04 – PCB rear/solder side with network address label 02608C-675936 and P/N LS4B-01 REV D marking visible

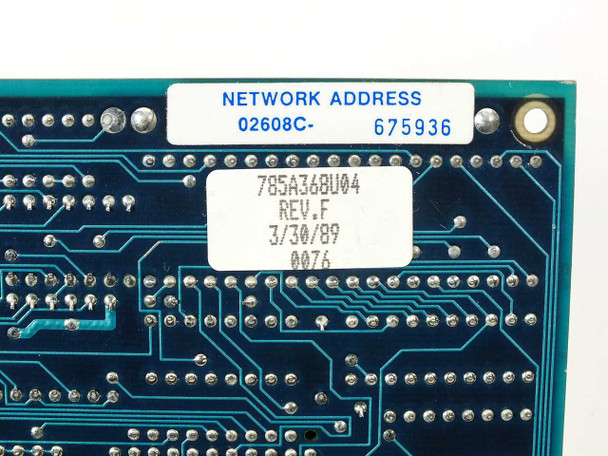

  • Tiara LanCard 785A368U04 – close-up of PCB label showing model 785A368U04, Rev F, date 3/30/89, and network address 02608C-675936

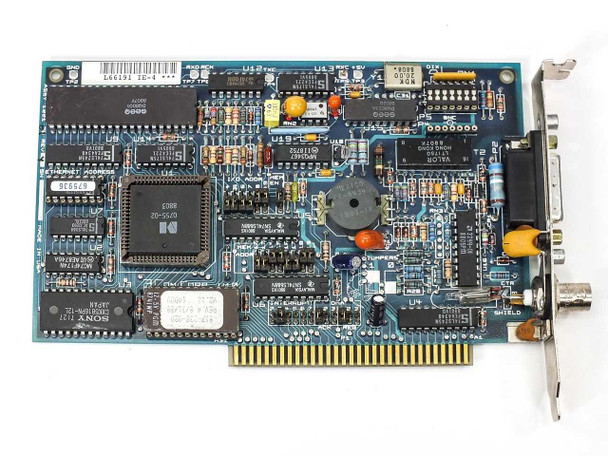

  • Tiara LanCard 785A368U04 – component side top view showing main ICs including Sony and other chips, ISA edge connector, and bracket
  • Tiara LanCard 785A368U04 – angled bracket view showing BNC coax connector and AUI DB15 connector on metal bracket
$18.00
Was: $40.00
Current Stock: 2

Sold Out

Description

Tiara LanCard 785A368U04 Rev F ISA Network Card BNC AUI 1989

ISA network interface card for legacy computer systems. Provides 10 Mbps Ethernet connectivity via dual connectors supporting both thin coax (10Base2 BNC) and thick coax (10Base5 AUI) network standards.

Specifications & What's Included

  • Model: 785A368U04 Rev F
  • Type: ISA Network Interface Card
  • Bus Interface: ISA (Industry Standard Architecture)
  • Connectors: BNC (10Base2), AUI/DB15 (10Base5)
  • Network Technology: Ethernet 10 Mbps
  • Manufacture Date: March 1989
  • Card only; no accessories included

Applications

ISA network cards were standard equipment in 1980s and early 1990s desktop and server systems, including IBM compatibles and industrial control computers. This card supports both 10Base2 and 10Base5 Ethernet topologies, common in established networks of that era. Typical installations included office workstations, laboratory equipment, and networked manufacturing systems requiring reliable coaxial connectivity.

Condition: Used
This Tiara LanCard 785A368U04 Rev F ISA network card has been inspected and appears to be in good used condition. The PCB shows normal aging consistent with a card manufactured in 1989 — light oxidation on the ISA edge connector fingers and typical handling marks on the board surface. The bracket, BNC connector, and AUI DB15 connector all appear intact with no visible damage. No accessories are included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tiara
Model:
785A368U04
MPN:
785A368U04
Secondary Model:
P/N LS4B-01 REV D
Type:
ISA Network Interface Card (NIC)
SKU:
40759
Condition:
Used – Inspected
Hardware Revision:
Rev F
Manufacture Date:
3/30/89
Form Factor:
ISA Card
Bus Interface:
ISA (Industry Standard Architecture)
Connector Type:
BNC, AUI (DB15)
Network Technology:
Ethernet
Compatible Interface:
10Base2 (BNC), 10Base5 / AUI (DB15)
Network Address:
02608C-675936
Seller Notes:
Card only; no accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
Tiara LanCard 785A368U04 Rev F ISA NIC inspected and in good used condition. PCB shows normal aging; bracket, BNC, and AUI connectors intact. Card only, no accessories.
