Thomas-Conrad

Thomas-Conrad TC9145 16-Bit ISA Token Ring Network Card DB9 RJ-45 V1.10

(No reviews yet) Write a Review
SKU:
43490
MPN:
TC9145
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout
  • Thomas-Conrad TC9145 16-bit ISA Token Ring network card – angled top view showing main PCB, chips, and bracket with DB9 and RJ-45 ports
  • Thomas-Conrad TC9145 ISA Token Ring card – solder-side (bottom) view showing PCB traces and ISA edge connector

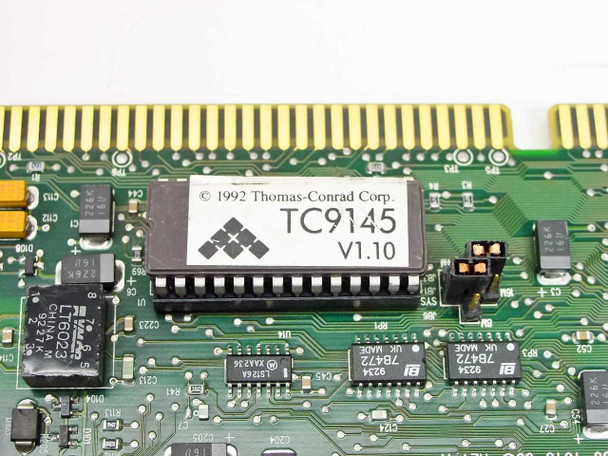

  • Thomas-Conrad TC9145 close-up of firmware label showing model number TC9145, V1.10, and copyright 1992 Thomas-Conrad Corp.

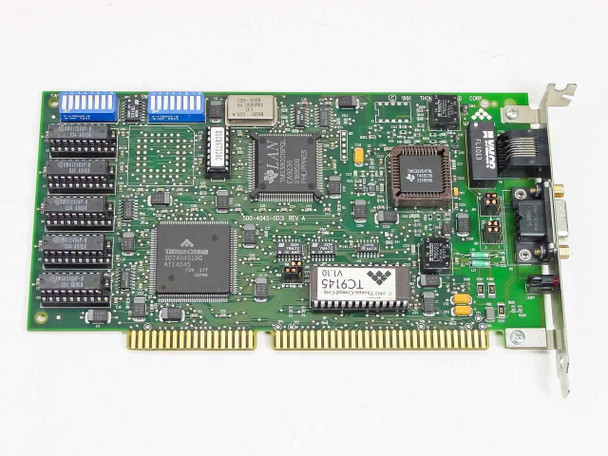

  • Thomas-Conrad TC9145 Token Ring card – top-down front view showing full PCB layout, main controller chip, and board revision label

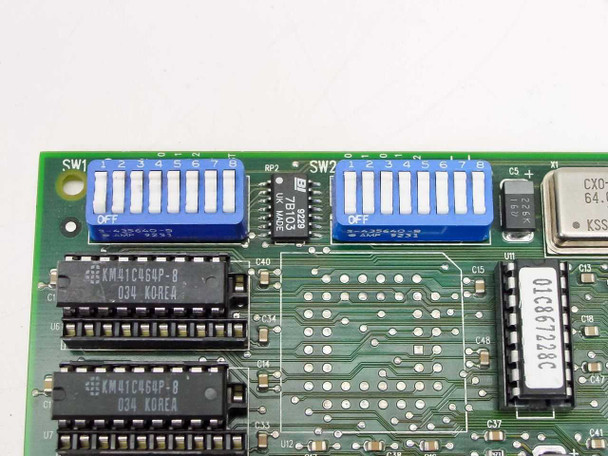

  • Thomas-Conrad TC9145 close-up of DIP switches SW1 and SW2, KM41C464P-8 memory chips, and oscillator

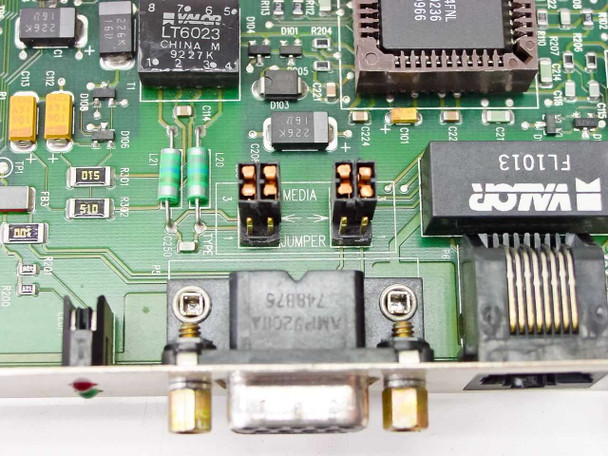

  • Thomas-Conrad TC9145 close-up of MEDIA JUMPER area, Valor FL1013 magnetics module, and LT6023 component near bracket

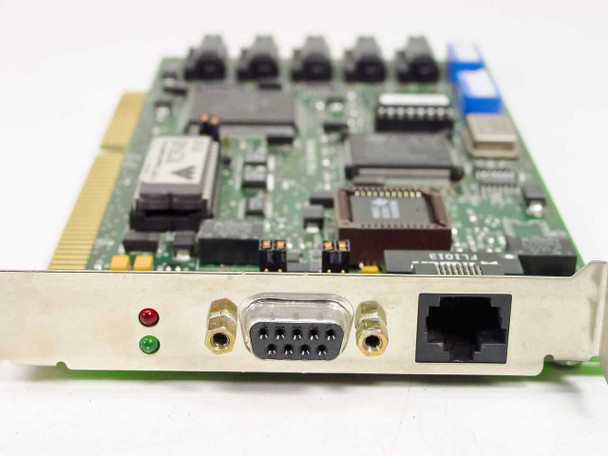

  • Thomas-Conrad TC9145 bracket close-up showing DB9 (9-pin) port, RJ-45 port, and red/green LED indicators
$25.00
Was: $50.00
Current Stock: 2

Sold Out

Description

Thomas-Conrad TC9145 16-Bit ISA Token Ring Network Card DB9 RJ-45 V1.10

16-bit ISA network adapter for Token Ring connectivity. Supports 4 Mbps and 16 Mbps data rates with dual connectors for network configuration flexibility.

Specifications & What's Included

  • Model: TC9145 (Rev 4 PCB)
  • Bus Interface: ISA 16-bit
  • Network Technology: Token Ring (4/16 Mbps switchable)
  • Connectors: DB9 (9-pin) and RJ-45
  • Configuration: DIP switches (SW1, SW2) and media jumper selectable
  • Form Factor: ISA full-length card
  • Card only; no accessories included

Applications

Token Ring network adapters were standard connectivity components in IBM PC/AT and compatible systems through the 1990s, primarily in corporate and institutional networks. The TC9145 connects ISA-bus computers to Token Ring LANs, supporting both 4 Mbps and 16 Mbps ring speeds via onboard configuration. Historically used in office workstations, servers, and industrial control systems requiring Token Ring connectivity.

Condition: Used
This Thomas-Conrad TC9145 16-Bit ISA Token Ring Network Card has been inspected and is in good used condition. The PCB is clean with no visible damage, broken traces, or missing components. The bracket is intact with both the DB9 and RJ-45 ports present and undamaged. The two LED indicators on the bracket are intact. The onboard DIP switches and media jumper are all present. Normal light handling wear is visible consistent with prior installation and removal from a system. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Thomas-Conrad
Model:
TC9145
MPN:
TC9145
Type:
Token Ring Network Adapter Card
SKU:
43490
Hardware Revision:
V1.10
Bus Interface:
ISA 16-Bit
Network Technology:
Token Ring
Connector Type 1:
DB9 (9-Pin)
Connector Type 2:
RJ-45
Data Rate:
4 Mbps / 16 Mbps
Form Factor:
ISA Full-Length Card
PCB Revision:
Rev 4 (visible on board label)
Media Jumper:
Selectable via onboard jumper (MEDIA JUMPER)
Configuration:
DIP switch configurable (SW1, SW2 onboard)
Condition:
Used – Inspected
Country/Region of Manufacture:
United States
Compatible With:
IBM PC/AT and compatible ISA bus systems
Seller Notes:
Card only. No accessories included.
Condition Notes:
Thomas-Conrad TC9145 16-Bit ISA Token Ring card inspected and in good used condition. PCB is clean, bracket intact, DB9 and RJ-45 ports present. Normal handling wear from prior use.
View AllClose

Related Products

Related Products

IBM 41H8452 16/4 Auto ISA Token Ring Network Card – front angled view showing RJ-45 and DB9 bracket connectors IBM 41H8452 ISA Token Ring NIC – rear angled view showing component side of PCB and bracket port layout
Add to Cart
Quick view

IBM 41H8452 16/4 Auto ISA Token Ring Network Card PRE37610 RJ-45 DB9

IBM

$22.00
Was: $40.00
IBM 41H8452 16/4 Auto ISA Token Ring Network Card PRE37610 RJ-45 DB9 Token Ring network interface card for ISA bus systems. Supports 16 Mbps and 4 Mbps data rates with automatic switching...
11080
SKU:
11080
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
IBM
Model:
41H8452
MPN:
41H8452
Secondary Model:
PRE37610
FRU:
41H8452
Type:
Token Ring Network Interface Card (NIC)
SKU:
11080
Bus Interface:
ISA
Network Standard:
Token Ring 16/4 Mbps
Data Rate:
16 Mbps / 4 Mbps (Auto)
Connector Type:
RJ-45 and DB9
Form Factor:
ISA Expansion Card
Compatible With:
IBM PCs and compatibles with ISA slot
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; no software, cables, or accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
IBM 41H8452 16/4 Auto ISA Token Ring NIC pulled from a working environment. Inspected and in good used condition. PCB is clean, bracket and connectors intact. Card only — no software or cables included.

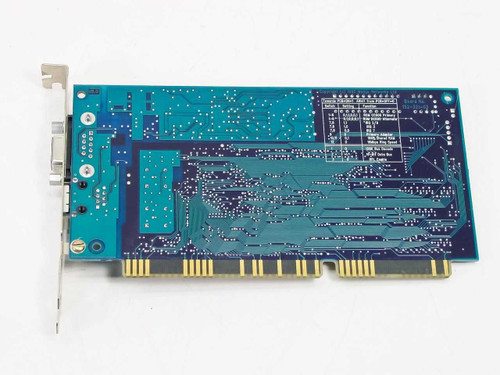

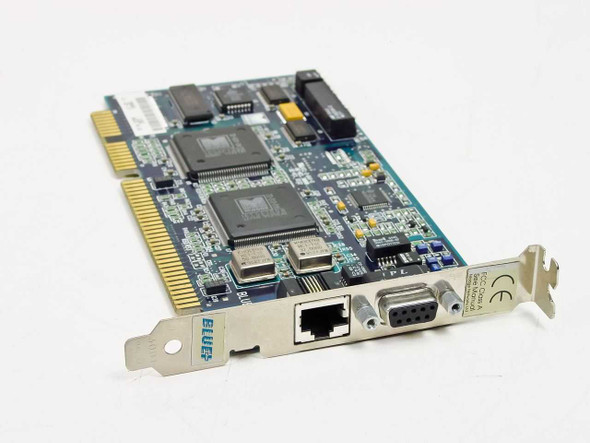

Madge Blue+ 16/4 ISA Token Ring Network Card 152-330-01 — front view showing RJ-45 and DB9 bracket ports and main PCB Madge Blue+ 16/4 ISA Token Ring Card 152-330-01 — rear/solder side of PCB showing trace layout and configuration table
Add to Cart
Quick view

Madge Blue+ 16/4 ISA Token Ring Network Card 152-330-01 RJ-45 DB9

Madge

$25.00
Was: $50.00
Madge Blue+ 16/4 ISA Token Ring Network Card 152-330-01 RJ-45 DB9The Madge Blue+ 16/4 is an ISA bus Token Ring network adapter card supporting both 4 Mbps and 16 Mbps Token Ring speeds. Manufactured...
18962
SKU:
18962
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Madge
Model:
Blue+ 16/4
MPN:
152-330-01
Type:
Token Ring ISA Network Card
SKU:
18962
Bus Interface:
ISA
Network Technology:
Token Ring
Data Rate:
4/16 Mbps
Connector Type 1:
RJ-45
Connector Type 2:
DB9 (9-pin D-sub)
Form Factor:
ISA Expansion Card
Country/Region of Manufacture:
United Kingdom
Compatible With:
IBM PC/AT and ISA-bus compatible systems
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only. No software or accessories included.
Condition Notes:
Madge Blue+ 16/4 ISA Token Ring Card 152-330-01. Inspected and in good used condition. PCB clean, no visible damage. Bracket, RJ-45, and DB9 intact. Card only — no software or accessories.
Cabletron T2015 Token Ring ISA NIC – top-side PCB view showing TMS380C26PQL chip and component layout Cabletron T2015 Token Ring ISA network card – solder-side PCB view showing memory ICs and ISA edge connector
Add to Cart
Quick view

Cabletron T2015 16-Bit ISA Token Ring Network Card TMS380C26PQL RJ45 DB9

Cabletron

$18.30
Was: $50.00
Cabletron T2015 16-Bit ISA Token Ring Network Card TMS380C26PQL RJ45 DB9 This is a Token Ring network interface card designed for ISA 16-bit slots in legacy desktop computers. It provides network...
10359
SKU:
10359
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Cabletron
Model:
T2015
MPN:
9000691-03
Secondary Model:
940079100
SKU:
10359
Type:
Token Ring Network Interface Card (NIC)
Chipset:
Texas Instruments TMS380C26PQL
Bus Interface:
ISA 16-bit
Network Standard:
Token Ring
Connector Type 1:
RJ45
Connector Type 2:
DB9
Form Factor:
Half-Length ISA Card
Country/Region of Manufacture:
Philippines
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; no accessories included.
Compatible With:
ISA 16-bit slot desktop PCs, Token Ring networks
Review Status:
Auto-Approved (needs review) 2026-07-03
Condition Notes:
Cabletron T2015 16-bit ISA Token Ring NIC inspected and in good used condition. PCB shows light shelf wear. RJ45, DB9, and bracket intact. No visible damage. Please view photos and contact us with questions.

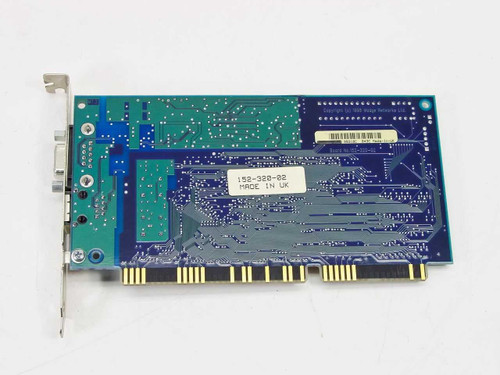

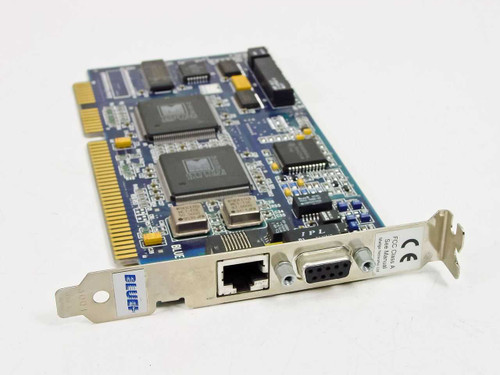

Madge 152-320-02 Blue+ 16/4 ISA Token Ring adapter card – angled front view showing RJ-45 and DB9 bracket ports and blue PCB with main controller ICs Madge 152-320-02 Token Ring ISA card – rear/bottom of PCB showing solder side and white label reading 152-320-02 Made in UK
