Madge Blue+ 16/4 ISA Token Ring Network Card 152-330-01 RJ-45 DB9

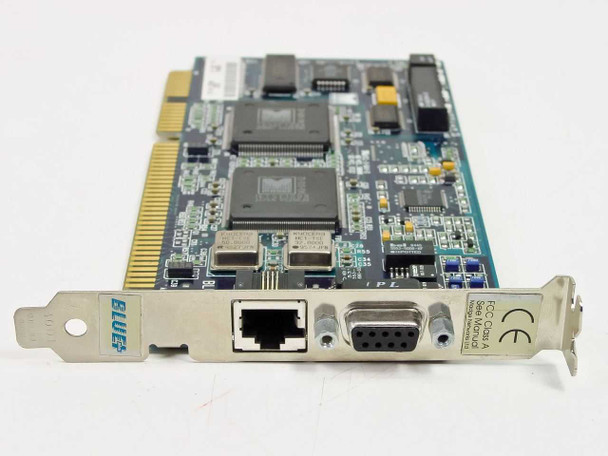

The Madge Blue+ 16/4 is an ISA bus Token Ring network adapter card supporting both 4 Mbps and 16 Mbps Token Ring speeds. Manufactured by Madge Networks in the United Kingdom, it connects a PC to an IEEE 802.5 Token Ring LAN via either an RJ-45 (UTP) or DB9 (STP/IBM Type 1) interface. The card carries Madge's "Straight Blue" lineage and is silkscreen-labeled "BLUE+ 16/4 ISA" on the PCB.
Specifications & What's Included
- Manufacturer: Madge Networks
- Part Number (MPN): 152-330-01
- PCB Revision: 988A06 / B35D
- Country of Manufacture: United Kingdom (per label)
- Bus Interface: ISA (Industry Standard Architecture)
- Network Technology: IEEE 802.5 Token Ring
- Data Rate: 4 Mbps / 16 Mbps (auto-sensing or configurable)
- Port 1: RJ-45 (UTP Token Ring)
- Port 2: DB9 9-pin D-sub (STP / IBM Type 1 Token Ring)

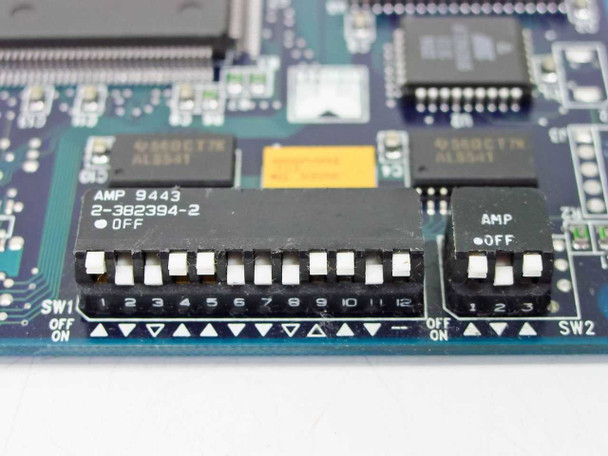

- On-board DIP switches: SW1 (12-position) and SW2 (3-position) for address/IRQ/mode configuration
- Main controller ICs: two large ASIC packages visible on PCB (markings not fully legible at photo resolution)
- Additional ICs: Toshiba memory/logic devices (TC514256BJ visible in close-up), AMP connector ICs, and multiple TI ALS541 logic ICs
- CE marked; FCC Class A compliance label on bracket
- Form Factor: ISA full-length expansion card
- Included: Card only — no driver disks, software, or accessories
