Madge Blue+ 16/4 ISA Token Ring Network Card 152-320-01 RJ45 DB9 ISA Bus

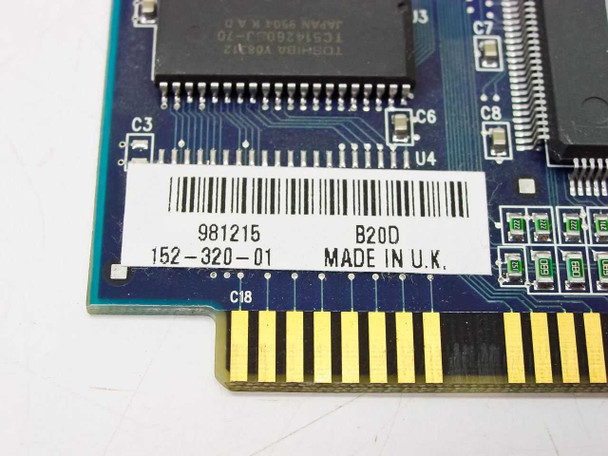

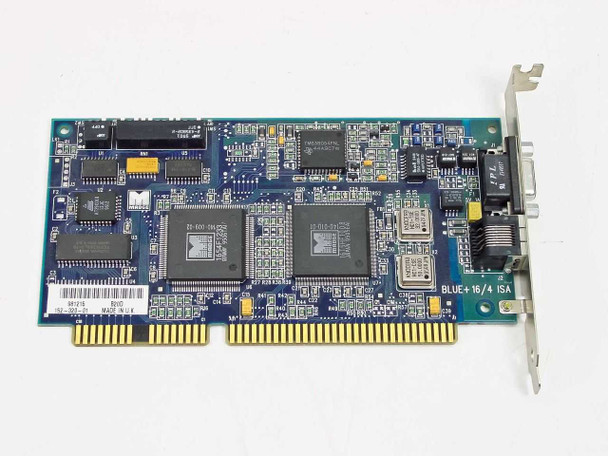

The Madge Blue+ 16/4 is an ISA-bus Token Ring network adapter card produced by Madge Networks Ltd. It supports both 4 Mbps and 16 Mbps Token Ring speeds, making it compatible with the full range of IEEE 802.5 Token Ring networks in use during the 1990s. The card carries part number 152-320-01, revision B20D, and was manufactured in the United Kingdom.
Specifications & What's Included
- Manufacturer: Madge Networks Ltd
- Part Number: 152-320-01
- Revision: B20D
- Date Code: 981215
- Network Technology: Token Ring (IEEE 802.5)
- Data Rate: 16/4 Mbps (auto-sensing)
- Bus Interface: ISA (Industry Standard Architecture)

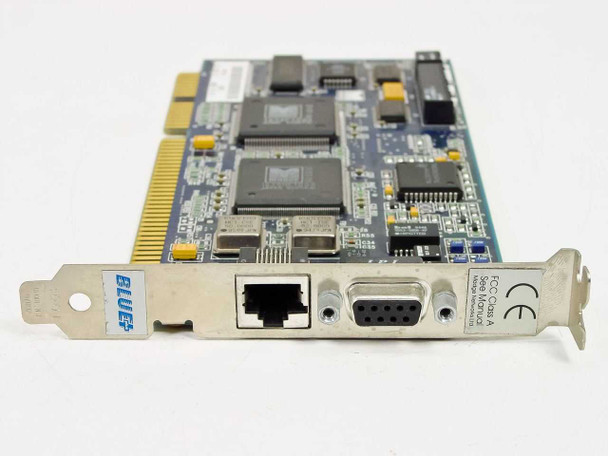

- Bracket Connectors: RJ45 (UTP) and DB9

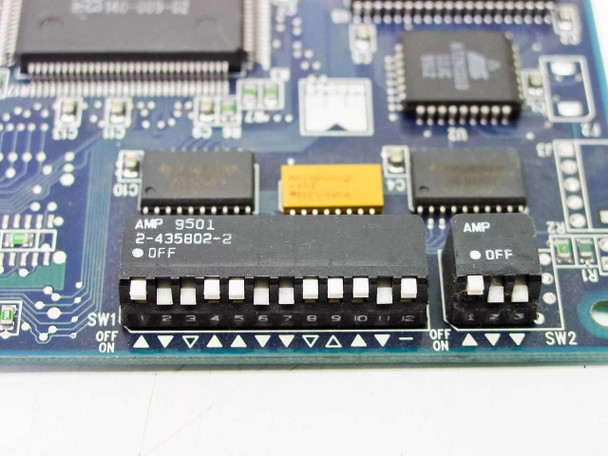

- Onboard DIP switch banks: SW1 (12-position) and SW2 for configuration
- AMP connector IC: 2-435802-2 (visible on PCB)
- Country of Manufacture: United Kingdom
- CE mark: present on bracket
- Included: card only; no cables or accessories
Applications
Token Ring was IBM's primary LAN technology through the late 1980s and into the mid-1990s, running at 4 Mbps and later 16 Mbps over shielded or unshielded twisted-pair cabling. The Madge Blue+ 16/4 was a widely deployed ISA Token Ring adapter, used in IBM-compatible PCs connected to corporate Token Ring networks running IBM mainframe, AS/400, and LAN Server environments. Madge Networks was one of the leading independent Token Ring NIC vendors of that era, with cards like the Blue+ series supporting both the RJ45 (UTP) and DB9 (STP/IBM Type 1) cabling infrastructures common at the time. These ISA Token Ring cards are now primarily sought by organizations maintaining legacy IBM network infrastructure, vintage computing enthusiasts, and those restoring or preserving 1990s-era enterprise systems. The ISA bus interface means this card requires a system with an ISA slot, typical of PCs from the early-to-mid 1990s — an era when ISA was beginning to give way to PCI as the dominant expansion bus standard.
This Madge Blue+ 16/4 ISA Token Ring Network Card (P/N 152-320-01) has been inspected and is in good used condition. It was pulled from a working environment where it was previously in use. The card shows normal surface wear consistent with prior installation. The RJ45 and DB9 bracket ports are present and intact. The PCB is clean with no visible damage, broken traces, or missing components. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
