Texscan RA-73 Adjustable Step RF Attenuator SMA Female Connectors 0-10 dB

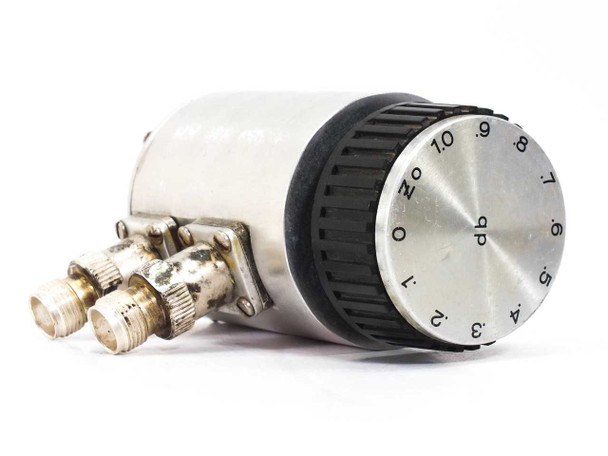

The Texscan RA-73 is a handheld inline RF attenuator with SMA female connectors. It provides adjustable attenuation in 11 discrete steps from 0 to 10 dB via rotary dial selection.
Specifications & What's Included
- Model: RA-73
- Attenuation Range: 0–10 dB (11 steps)
- Connectors: SMA Female (2)
- Adjustment: Rotary dial (step attenuator)
- Measured Center Pin Impedance: 4.8–13.0 Ohm (approximate, across all dial positions)
- Reference Impedance: 155.8 Ohm (approximate)
- Form Factor: Handheld / Inline
Applications
Step attenuators are used in RF and microwave test setups, transmitter/receiver signal level adjustment, and equipment protection during measurement and troubleshooting. The RA-73 is found in telecom, broadcast, and industrial RF applications where controlled signal reduction is required without continuous tuning.
Condition: Used

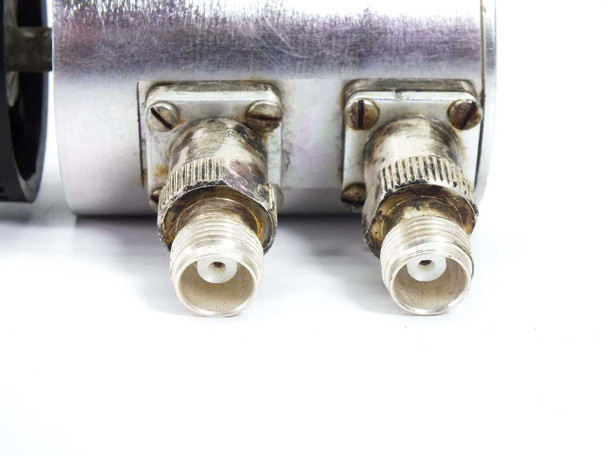

This Texscan RA-73 adjustable step RF attenuator has been inspected and is in working condition. We measured the resistance (ohms) across the center pins at each dial position using a multimeter. Approximate readings from dial 0 through 10 and the Zo position are: 4.8, 5.4, 6.3, 7.1, 8.1, 8.9, 9.8, 10.7, 11.4, 12.4, 13.0, and 155.8 ohms. The aluminum body shows light surface wear consistent with age and prior lab use. The dual SMA female connectors show some tarnishing on the coupling hardware, visible in our photos. The rotary dial and dB scale markings are clean and legible. Please view our photo set and contact us if you have any questions.
This Texscan RA-73 adjustable step RF attenuator has been inspected and is in working condition. We measured the resistance (ohms) across the center pins at each dial position using a multimeter. Approximate readings from dial 0 through 10 and the Zo position are: 4.8, 5.4, 6.3, 7.1, 8.1, 8.9, 9.8, 10.7, 11.4, 12.4, 13.0, and 155.8 ohms. The aluminum body shows light surface wear consistent with age and prior lab use. The dual SMA female connectors show some tarnishing on the coupling hardware, visible in our photos. The rotary dial and dB scale markings are clean and legible. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Texscan |
Model: |
RA-73 |
MPN: |
RA-73 |
Type: |
Adjustable Step RF Attenuator |
SKU: |
48691 |
Connector Type: |
SMA Female |
Number of Connectors: |
2 |
Attenuation Range: |
0–10 dB (11 steps) |
Adjustment Type: |
Rotary Dial (Step) |
Measured Impedance Range: |
4.8–13.0 Ohm (center pin, approximate) |
Zo (Reference) Reading: |
155.8 Ohm (approximate, multimeter) |
Form Factor: |
Handheld / Inline |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only. Staff measured resistance at each of 11 dial positions. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Texscan RA-73 RF attenuator inspected and in working condition. Resistance measured at all 11 dial positions (4.8–13.0 Ohm) plus Zo (155.8 Ohm). Light surface wear; SMA connectors show minor tarnish. Please contact us with any questions. |
