Description
Texscan RA-70 Adjustable Step RF Attenuator SMA Connector 0-10 dB 11-Step
Step attenuator for RF and microwave applications. Provides fixed attenuation levels from 0 to 10 dB in 1 dB increments, plus a high-impedance (Zo) position, selected via rotary dial.
Specifications & What's Included
- Attenuation Range: 0–10 dB (11 steps) + Zo position
- Connector Type: SMA Female
- Impedance: 50 Ohm
- Number of Ports: 2
- Adjustment: Step rotary dial (positions 0–10 + Zo)

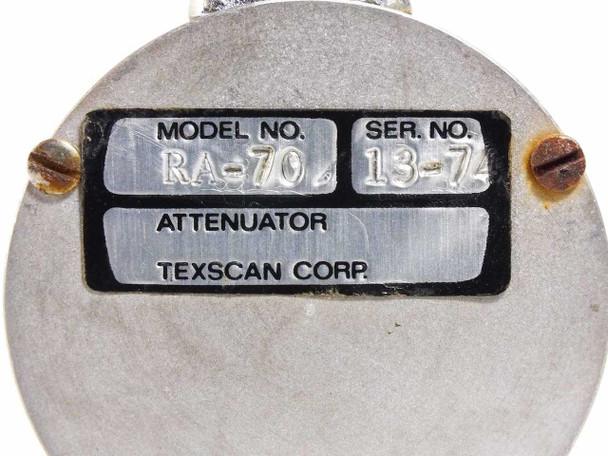

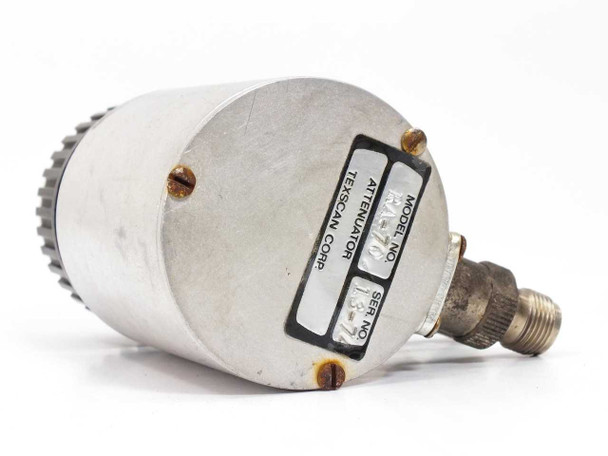

- Manufacturer: Texscan (USA)
- Unit only; no accessories included
Applications
Step attenuators are used in RF test equipment, signal conditioning, telecommunications systems, and laboratory measurements to reduce signal levels in controlled increments. Commonly found in telecom bench setups and RF/microwave test configurations requiring manual attenuation adjustment.
Condition: Used

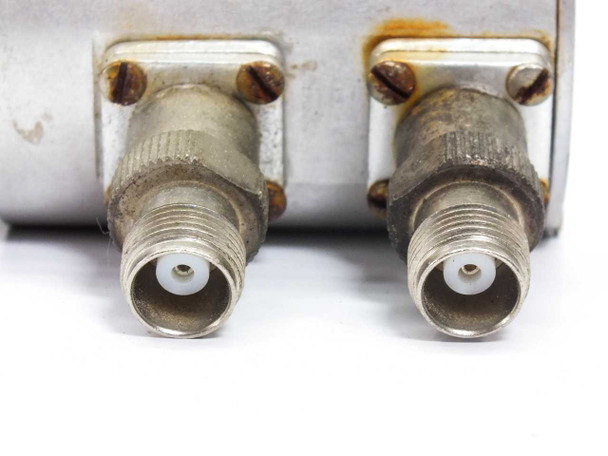

This Texscan RA-70 Adjustable Step RF Attenuator has been inspected and tested at our facility and is in working condition. We measured the resistance across the center pins at each dial position using a multimeter. The approximate readings at dial settings 0 through 10, plus the Zo position, are as follows: 0.4, 8.9, 17.3, 25.8, 33.9, 42.4, 50.4, 57.3, 64.7, 71.4, 77.7, and 149.4 ohms. The SMA connectors show visible oxidation and surface wear consistent with age and use. The aluminum body and dial are intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Texscan RA-70 Adjustable Step RF Attenuator has been inspected and tested at our facility and is in working condition. We measured the resistance across the center pins at each dial position using a multimeter. The approximate readings at dial settings 0 through 10, plus the Zo position, are as follows: 0.4, 8.9, 17.3, 25.8, 33.9, 42.4, 50.4, 57.3, 64.7, 71.4, 77.7, and 149.4 ohms. The SMA connectors show visible oxidation and surface wear consistent with age and use. The aluminum body and dial are intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Texscan |
Model: |
RA-70 |
MPN: |
RA-70 |
Type: |
Adjustable Step RF Attenuator |
SKU: |
48693 |
Connector Type: |
SMA (Female) |
Number of Ports: |
2 |
Attenuation Range: |
0-10 dB (11 steps) + Zo |
Adjustment Type: |
Step (rotary dial, positions 0–10 + Zo) |
Impedance: |
50 Ohm (Zo) |
Form Factor: |
Handheld / Inline |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only; staff-measured resistance at each dial step. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Texscan RA-70 RF Attenuator inspected and tested. Multimeter-measured resistance at each dial step (0–10 + Zo): 0.4, 8.9, 17.3, 25.8, 33.9, 42.4, 50.4, 57.3, 64.7, 71.4, 77.7, 149.4 ohms. SMA connectors show oxidation. Working condition. |
