Description
TEW TISF-452 18" Foot Pedal Impulse Sealer 450mm Plastic Bag Heat Sealer 400W
The TEW TISF-452 is a floor-standing, foot-pedal-operated impulse heat sealer with an 18-inch (450mm) sealing bar. Impulse sealers work by sending a brief burst of electrical current through a nichrome heating element, which melts and bonds the bag material, then cools under pressure to form a tight seal. This unit operates hands-free via a foot pedal, making it well suited for higher-volume or two-handed packaging tasks. It is being sold as-is because the lower heating element is broken and must be replaced before the machine can seal.
Specifications & What's Included
- Model: TEW TISF-452
- Seal length: 450mm (18")
- Seal width: 2mm
- Maximum seal thickness: 1.0mm
- Impulse power: 400W max
- Heat time: 0.2–3.0 seconds (adjustable)
- Cooling/congealing time: 1.0–8.0 seconds
- Reset time: 1.0–8.0 seconds

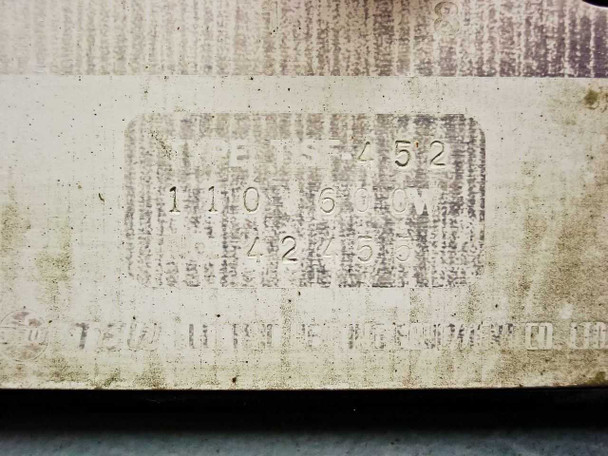

- Power: 110V, 60Hz (standard 3-prong plug, per rating plate)
- Operation: foot pedal (hands-free)

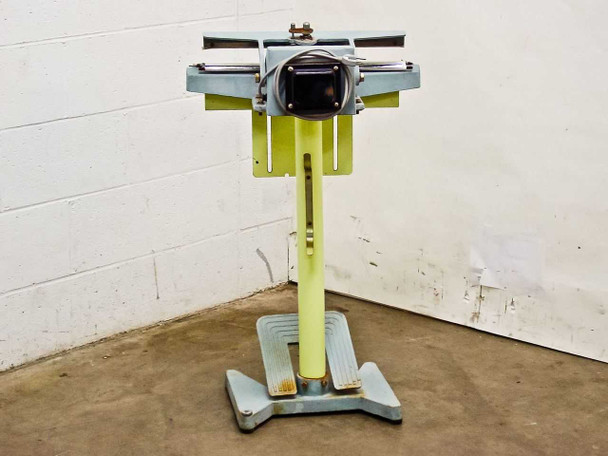

- Form factor: floor-standing pedestal mount
- Overall dimensions: 21" W x 19" D x 24" T

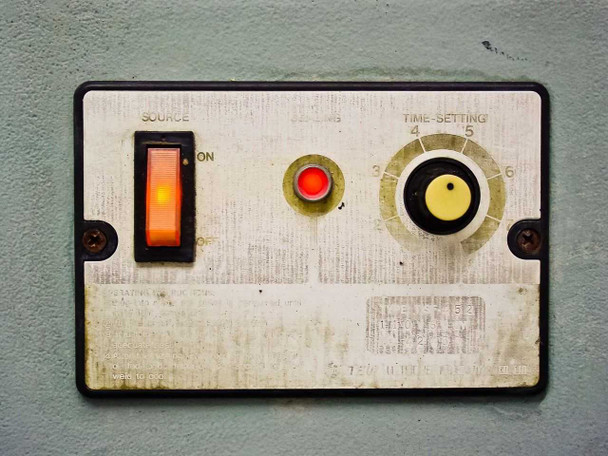

- Front panel controls: ON/OFF rocker switch, indicator light, time-setting dial
- Power cord included
- Lower heating element broken — requires replacement
Applications
Foot-pedal impulse sealers like the TISF-452 are standard equipment in packaging operations where both hands need to be free to position or hold the bag. They are commonly used in light manufacturing, food packaging, fulfillment and distribution centers, medical supply packaging, and electronics assembly for sealing polyethylene, polypropylene, and other thermoplastic bag materials. The impulse design — using a brief current pulse rather than a continuously heated element — reduces energy consumption and minimizes heat exposure to the contents compared to constant-heat sealers. The floor-standing pedestal format puts the sealing bar at a comfortable working height for standing operators. This size class (450mm / 18-inch bar) handles a wide range of bag widths suited to both small parts bags and larger poly mailers.

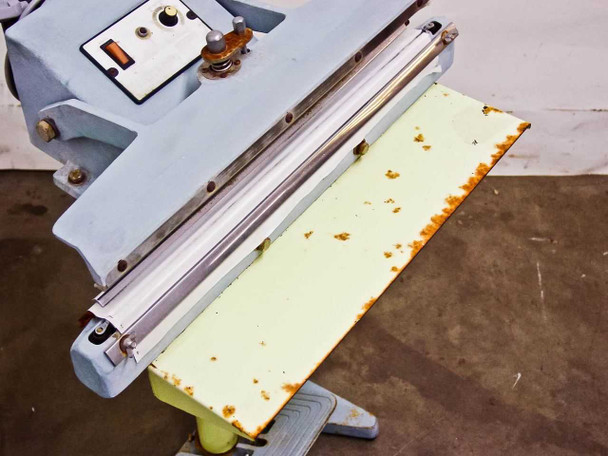

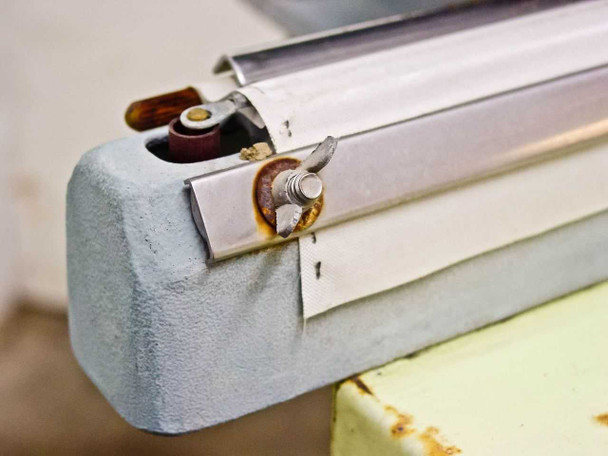

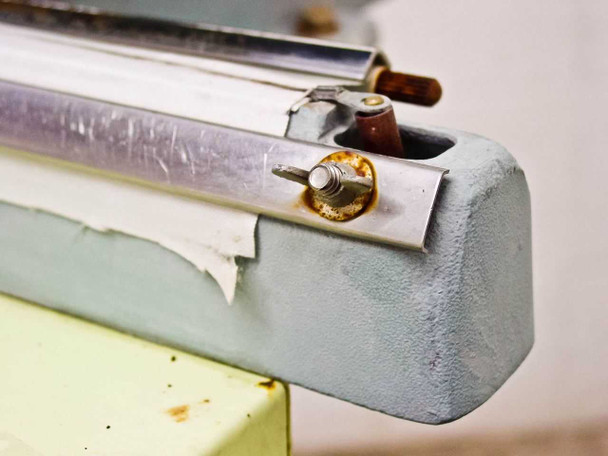

This TEW TISF-452 18" Foot Pedal Impulse Sealer is being sold as-is for parts or repair. The lower heating element is broken and will need to be replaced before the unit can seal. The unit tested good prior to the element burning out. Cosmetically, the machine shows significant age-related wear throughout: rust and corrosion are visible on the sealing jaw hardware, tension plate, and adjustment knobs, rust spotting covers much of the painted sealing table surface, and the foot pedal base shows rust and general wear. The control panel is intact with a functional-appearing rocker switch, indicator light, and time-setting dial. The power cord prongs show oxidation. The yellow pedestal frame is structurally sound. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
TEW |
Model: |
TISF-452 |
MPN: |
TISF-452 |
Type: |
Foot Pedal Impulse Heat Sealer |
SKU: |
43481 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Lower heating element is broken; sold for parts or repair |
Seal Length: |
450mm (18") |
Seal Width: |
2mm |
Max Seal Thickness: |
1.0mm |
Impulse Power: |
400W Max |
Heat Time: |
0.2–3.0 seconds |
Cooling Time: |
1.0–8.0 seconds |
Reset Time: |
1.0–8.0 seconds |
Power Requirements: |
110V, 60Hz (per rating plate) |
Operation Type: |
Foot Pedal Operated |
Form Factor: |
Floor-Standing Pedestal |
Overall Dimensions: |
21" W x 19" D x 24" T |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
TEW TISF-452 18" foot pedal impulse sealer sold as-is for parts/repair. Lower heating element is broken and needs replacement. Unit tested good before element failure. Heavy rust on jaw hardware and sealing table. Power cord included. |
